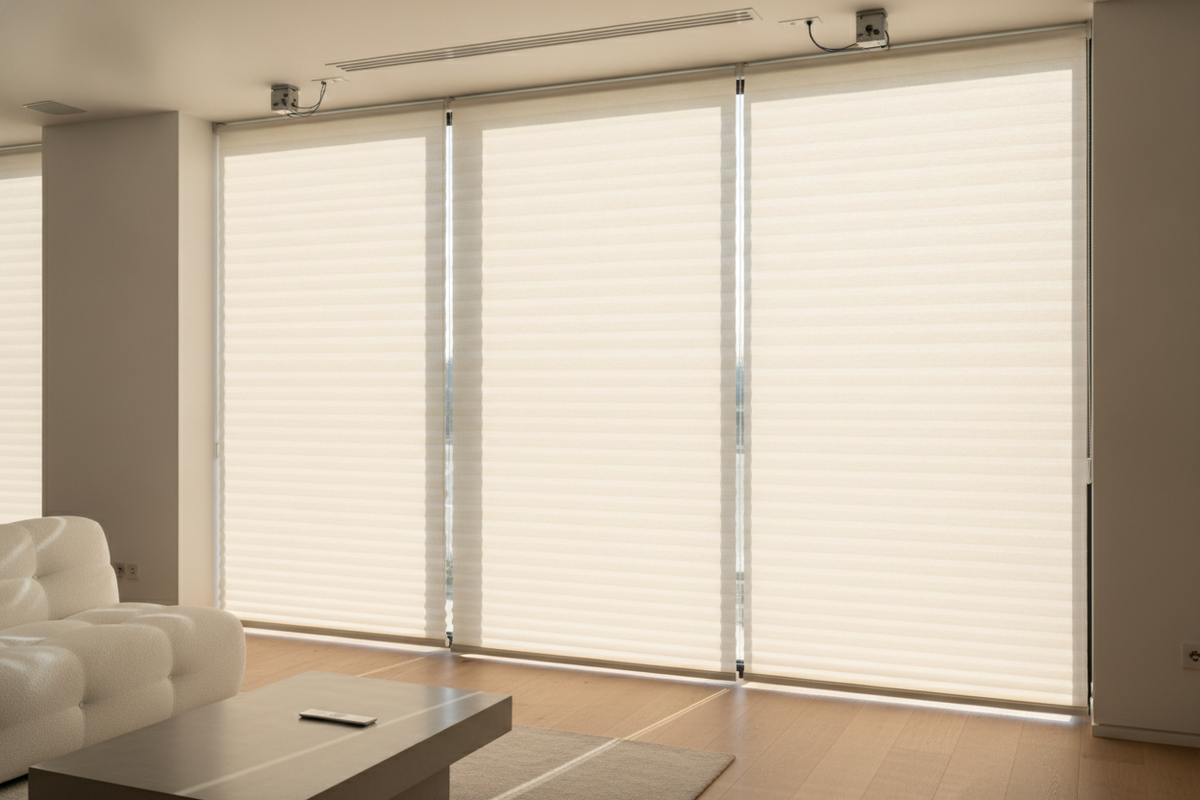

Insulated Cellular Shades: Engineering Honeycomb Thermal Barriers, Precision Mounting, and Connected Motorization

Introduction: Honeycomb Architecture and Modern Thermal Management

Windows represent one of the most dynamic architectural elements in any building envelope. While glazing permits natural daylight and panoramic outdoor views, it also presents a primary path for heat transfer between conditioned indoor living spaces and the fluctuating exterior climate. Insulated cellular shades, often termed thermal cellular shades, are engineered specifically to address this vulnerability. Unlike standard flat drapery or traditional slatted blinds, cellular shades feature a distinctive cross-sectional honeycomb geometry designed to trap volumes of air within sealed chambers.

By establishing physical barriers directly over the window glass, these window treatments help temper ambient surface temperatures, mitigate localized drafts, and regulate solar radiation across changing seasons. Understanding how cell geometries, fabric compositions, mounting configurations, and motorized control systems interact allows homeowners and specifiers to make informed decisions for modern interior climate management.

The Physics of Honeycomb Thermal Insulation: Static Air Barriers

The primary thermal efficacy of cellular window coverings rests on the principle of static air insulation. Air is inherently a poor conductor of heat when trapped in small, enclosed chambers where buoyant convection currents cannot easily circulate. When mounted against a window opening, honeycomb blinds thermal pockets establish an intermediate zone that decouples indoor room air from the fluctuating surface temperature of the window glass.

In standard configurations, single-cell designs provide a continuous layer of hexagonal air chambers along the shade drop. For environments requiring increased thermal resistance, double-cell variants introduce two parallel layers of interlocking air pockets. The additional cell layer doubles the quantity of static boundary interfaces, further damping both conductive and convective heat migration across the window assembly. To understand more about selecting suitable cell structures for residential settings, exploring a comprehensive honeycomb blinds cellular guide can help clarify architectural variations.

Fabric Selection and Thermal Layering Dynamics

The performance profile of insulated cellular shades is heavily dictated by the fabric construction and inner lining technology utilized across the honeycomb matrix:

• Light-Filtering Spunlace Polyester: Constructed from nonwoven synthetic fibers, light-filtering fabrics soften direct solar glare while distributing ambient daylight evenly throughout an interior. While providing standard thermal air pockets, they allow luminous flux to enter the room during daylight hours.
• Foil-Lined Blackout Fabrics: For total room darkening and heightened solar reflection, blackout variants integrate a micro-thin metallized foil lining within the inner core of each individual cell. This reflective interior layer prevents visible light transmission while deflecting radiant heat away from the living space during warmer periods.
• Dual-Sheer or Multi-Zone Assemblies: Advanced setups incorporate dual-fabric configurations that combine a sheer or light-filtering upper section with an opaque blackout lower section, offering flexible daylight modulation alongside targeted privacy control.

When selecting fabrics, browsing an established cellular shades collection helps balance light control requirements with desired aesthetic finishes and insulation priorities.

Mounting Precision: Eliminating Thermal Bypass and Perimeter Gaps

Even the most advanced thermal cellular shades will experience performance degradation if installation allows convective air currents to bypass the shade perimeter. As warm room air comes into contact with cold glass surfaces, it drops downward, creating a convective loop that draws more ambient air behind the window treatment. Precise mounting is essential to minimize this phenomenon.

An inside mount installs the headrail and fabric stack directly within the window casing depth. While this yields a clean, flush architectural appearance, slight manufacturing deductions are required along the sides to prevent fabric friction against the jambs. To counteract air leakage through these side clearances, specialized side channels or edge guides can be installed along the window jambs, physically sealing the lateral margins.

Alternatively, an outside mount secures the shade assembly onto the wall surface or window trim, extending the fabric beyond the structural window opening on all four sides. Overlapping the glass boundary by several inches significantly reduces perimeter air leakage, making outside mounting a practical choice when window frame depth is shallow or where maximum edge containment is desired.

Lift Mechanisms: Cordless Manual Springs vs. Motorized Drives

Managing the vertical travel of honeycomb shades requires an internal cord and lift mechanism capable of maintaining level alignment across the bottom rail. Traditional free-hanging pull cords have largely been replaced by modern cordless spring rollers and motorized drive systems.

• Cordless Manual Tension Mechanisms: Manual cordless systems utilize constant-force internal springs paired with friction clutches. Users simply push or pull the bottom bar to reposition the shade. While intuitive and clean in appearance, very wide or multi-cell shades may require balanced manual adjustment to prevent uneven stacking over time.
• Integrated Tubular Motorization: Motorized systems replace manual spring tension with low-profile tubular motors concealed inside the headrail. Motorization ensures smooth, regulated travel speeds and perfectly consistent bottom-rail leveling, regardless of shade dimensions or fabric weight.

For large glass expanses or elevated clerestory windows where manual operation is impractical, deploying a dedicated cellular shades product powered by an internal drive delivers reliable physical positioning and eliminates manual handling wear.

Smart Automation Architecture: Power Options, Protocols, and Scheduling

Integrating insulated cellular shades into a comprehensive smart home ecosystem elevates their role from static window coverings to responsive climate-control assets. Successful implementation involves selecting the right power topology, communication protocol, and automation routines.

Power Distribution Architectures

Motorized cellular shades typically utilize one of two core power strategies:

• Internal Rechargeable Lithium Power: Compact battery packs concealed within the headrail or bottom profile offer a straightforward, wire-free retrofit solution. These assemblies can be recharged periodically via magnetic charging cables or paired with slim photovoltaic solar panels mounted discretely against the upper glass pane.
• Low-Voltage Hardwired DC Power: In new construction or extensive renovation projects, centralized low-voltage DC wiring eliminates battery maintenance entirely. Dedicated power lines feed individual shade motors from a central distribution panel, ensuring continuous uptime across large multi-window zones.

Wireless Protocols and Ecosystem Integration

Modern motorized cellular shades communicate using standardized wireless frequencies. Radio-frequency (RF) channels provide direct remote control, while mesh-based networking standards such as Zigbee, Z-Wave, or Thread/Matter integrate the shades directly into central smart home hubs. This protocol compatibility allows the window treatments to coordinate seamlessly with lighting, security sensors, and HVAC thermostats.

Dynamic Climate Scheduling

Automated scheduling routines allow cellular shades to adjust automatically throughout the day:

1. Solar Gain Management: During sunny winter days, automated schedules can raise southern-facing shades to allow passive solar warming, lowering them automatically at sunset to seal the window envelope against nighttime heat loss.
2. Overheating Prevention: In hot summer conditions, ambient light or temperature sensors can trigger shades to lower during peak solar exposure hours, reducing solar heat ingress and easing cooling demands.
3. Occupancy-Based Routines: Integration with presence sensors or geo-fencing routines ensures window shades default to an optimal thermal barrier position whenever rooms remain unoccupied.

Architectural Suitability, Window Compatibility, and Practical Trade-Offs

While insulated cellular shades offer versatile benefits, evaluating specific window conditions ensures successful long-term deployment:

• Frame Depth and Clearance: Honeycomb headrails and multi-cell fabrics require sufficient casing depth for flush inside mounting. Shallow window frames may necessitate specialized shallow-profile brackets or outside mount installations.
• High-Humidity Environments: In bathrooms or poorly ventilated laundry areas, elevated moisture levels can affect nonwoven fabrics over extended periods. Ensuring adequate room ventilation protects the crisp pleating and bonded seams of the honeycomb material.
• Acoustic Attenuation: In addition to thermal management, the multi-layered air pockets and soft fabric construction of cellular shades provide natural sound-dampening qualities, helping to soften interior room echo and reduce exterior ambient noise transmission.
• Routine Care and Maintenance: Honeycomb shades accumulate minimal dust within the internal cells due to their vertical orientation. Occasional gentle dusting with a soft feather duster or light vacuuming with an upholstery brush attachment keeps the fabric clean and maintains visual appeal.

By balancing cell architecture, fabric opacity, mounting precision, and intelligent motorization, insulated cellular shades provide a sophisticated, functional solution for modern window climate management and light optimization.
