Make Your Cord Roller Shades Smart: A Retrofit Guide

Imagine waking up on a Saturday, the sun trying to peek through, but you want just five more minutes of darkness. Instead of getting out of bed to fiddle with a chain, you simply mutter a voice command, and the room adjusts to your preference. This level of convenience used to require expensive, custom-built window treatments. Today, you can achieve the same result by retrofitting your existing cord roller shades.

Key Specs at a Glance

Before buying a retrofit motor, check these specifications to ensure it fits your current setup. Most retrofit drivers clamp directly onto the existing chain loop.

• Power Source: Rechargeable Lithium-ion (USB-C charging) or Solar Panel add-on.
• Connectivity: Bluetooth (local control) or Zigbee/WiFi (requires a Bridge/Hub for cloud access).
• Torque/Load Capacity: Typically supports 1.35Nm torque, handling shades up to 10 lbs (4.5 kg).
• Chain Compatibility: Plastic beads, metal beads (3mm-6mm), and plain cords.

Installation Realities: The Tension Factor

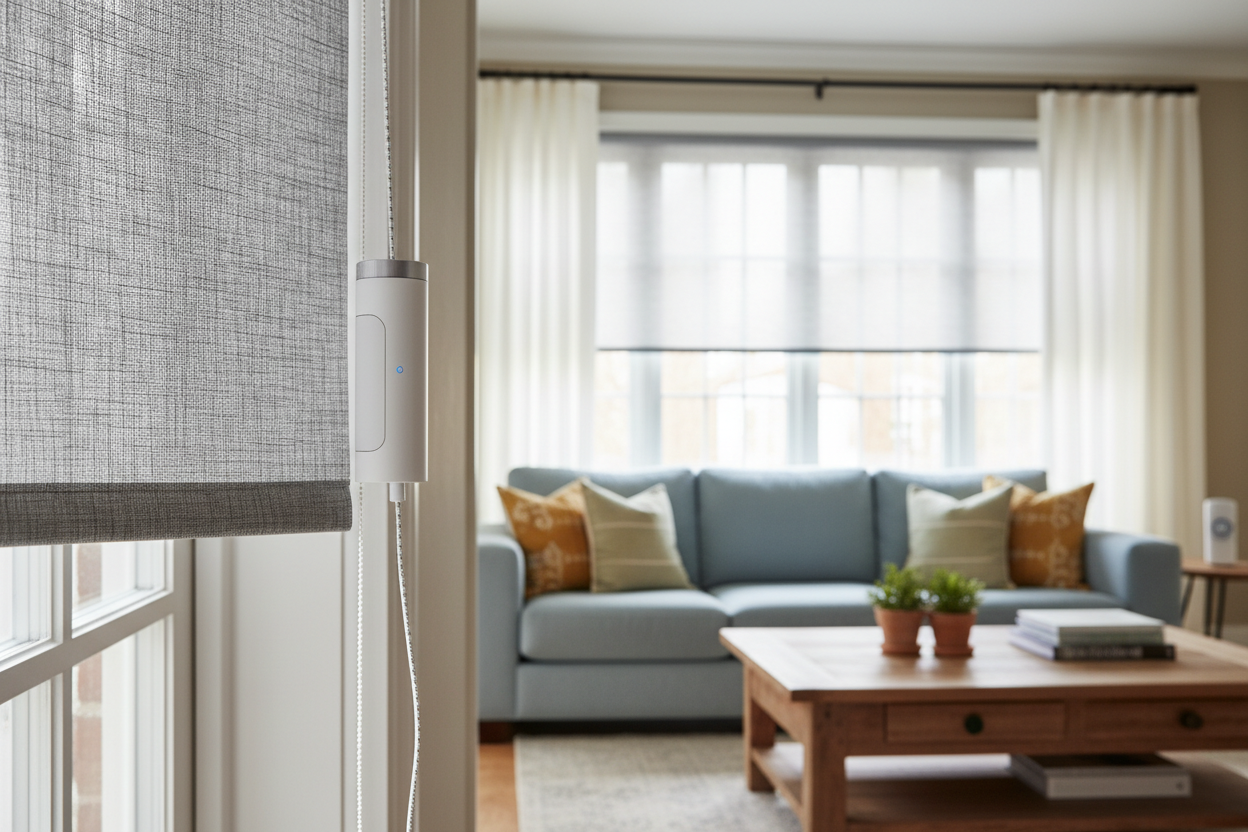

The beauty of retrofitting roller shades with cords lies in the non-invasive installation. You generally stick or screw a motor unit to the wall directly below the existing chain mechanism. However, precise positioning is critical.

If the roller shades cord is too loose within the motor's gear, it will slip, causing the calibration to drift. If it is too tight, the motor will whine and drain the battery excessively. Most kits come with multiple gear cogs to fit different bead sizes. Take the time to test which cog grips your specific chain best before mounting the device to the wall.

Power & Battery Options

Most retrofit motors for a corded roll up blind run on internal batteries. In my testing, a standard 3,000 mAh battery lasts about 3 to 6 months with daily use (one open/close cycle per day).

For high windows or hard-to-reach areas, I strongly recommend adding a small solar panel. These plug directly into the motor and stick to the glass. Even indirect sunlight is usually enough to maintain the charge, effectively removing the need to ever plug it in manually.

Ecosystem Integration and Noise Levels

While Bluetooth models work great for phone control, true smart home integration usually requires a hub (like the Aqara Hub or SwitchBot Hub Mini). Once bridged to WiFi, these devices appear in Alexa, Google Home, or HomeKit.

A Note on Acoustics

These are not silent. Unlike high-end hardwired Lutron systems, retrofit motors generate mechanical noise. Expect noise levels between 40dB and 50dB—roughly the volume of a quiet refrigerator hum or an electric toothbrush. It is noticeable in a silent bedroom but generally fades into the background during the day.

Living with Cord Roller Shades: Day-to-Day Reality

After using these retrofit drivers on my office windows for six months, here is the unpolished truth: the delay can be annoying. When I ask Alexa to "open the office shades," there is a solid 2-to-3-second pause while the command routes from the cloud to the hub and finally to the Bluetooth motor.

Also, the "soft stop" feature isn't always perfect. Occasionally, the motor drifts slightly over time, meaning the shade might stop half an inch lower than it did last week. I have to recalibrate the open/close limits in the app about once every two months. It is a small trade-off for not having to replace the entire window treatment, but it is something you should expect.

Conclusion

Retrofitting your current shades is the most cost-effective way to get smart lighting control without drilling new holes or buying new fabric. If you can tolerate a bit of motor noise and the occasional need to recharge, these devices add significant value and convenience to your daily routine.

Frequently Asked Questions

Can I still use the cord manually?

Generally, no. Once the motor is engaged with the chain, you cannot pull it by hand without risking damage to the internal gears. You must use the button on the device, a remote, or the app.

Do I need a Hub?

If you only want to use your phone while in the room, Bluetooth is fine. For voice control (Alexa/Google) or controlling the shades while you are away from home, a Gateway or Hub is required.

Will this work on heavy blackout blinds?

It depends on the weight. Most retrofit motors max out around 10 lbs (4.5kg). If your blackout shades are very wide (over 70 inches) or heavy, the motor may struggle or stall.
