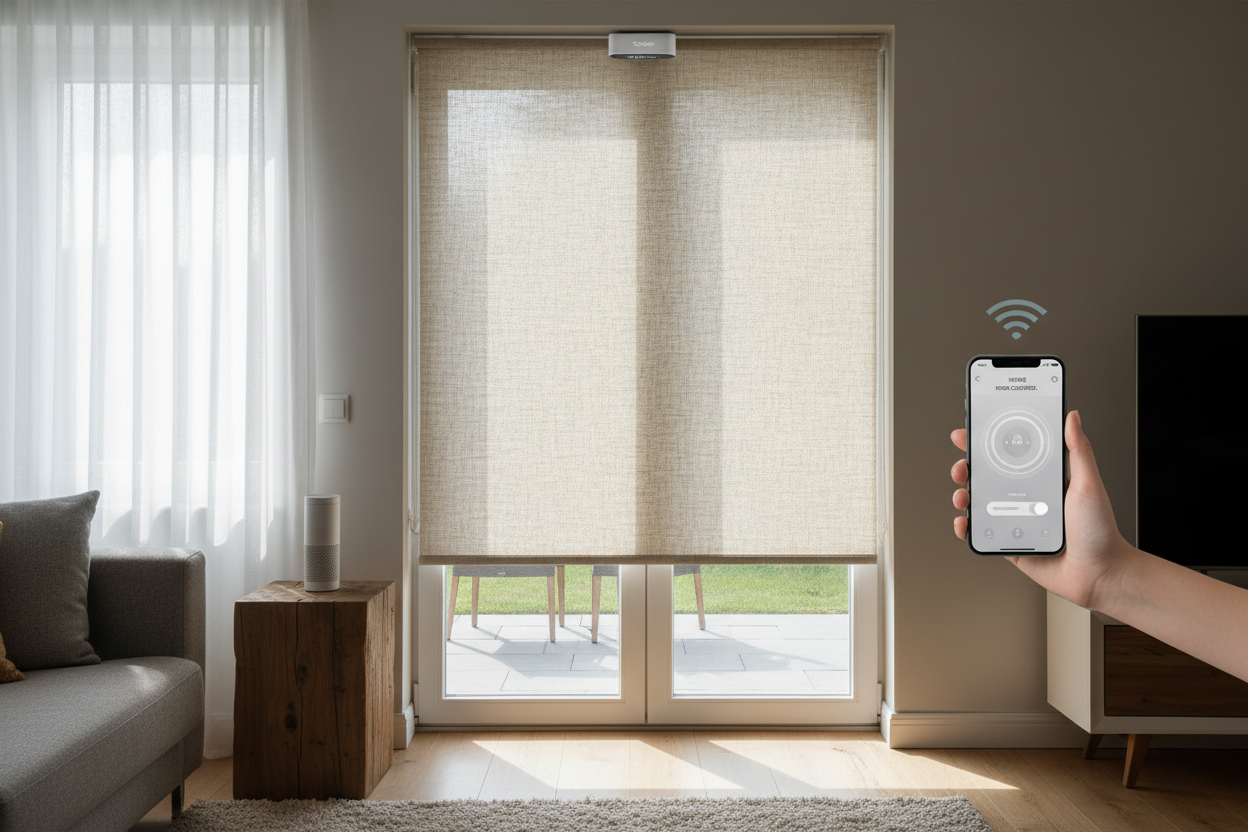

Make Your Door Pull Down Shade Smart: A DIY Guide

It happens every evening at 7:00 PM. You are settled on the couch, the movie is starting, and the setting sun hits the exact angle to blast glare through the patio glass. You don't want to get up. This is the classic use case for upgrading a standard door pull down shade. While we often focus on main windows, doors represent a unique challenge because they move, vibrate, and often lack nearby power outlets.

Integrating these shades into your smart home ecosystem isn't just about being lazy; it's about privacy management and energy efficiency. Whether you are looking to retrofit an existing shade with a bead-chain driver or install a fresh motorized roller, the technology has finally matured enough to be reliable.

Key Specs at a Glance

Before you drill any holes, you need to match the motor to your specific door situation. Here is the cheat sheet for what actually matters when selecting a drive unit:

• Power Source: Rechargeable Lithium-Ion Battery (Crucial for doors to avoid dangling wires).
• Connectivity Protocol: Zigbee 3.0 (Preferred for local control) or WiFi (2.4GHz).
• Torque Requirement: 1.1Nm - 2.0Nm (Sufficient for standard blackout fabrics).
• Smart Platform: Alexa, Google Home, SmartThings (Check for Matter support on newer models).

Installation Realities: Mounting on a Moving Target

Unlike a static window, a door moves. This introduces physics that standard smart shades hate. When installing a pull down shade for door window applications, the mounting hardware must be more robust than standard drywall anchors. I always recommend using self-tapping screws directly into the door material (wood or metal) rather than the surrounding trim.

Dealing with the "Swing"

If you choose a retrofit chain driver (a device that pulls the beaded cord for you), it must be anchored firmly at the bottom. If the tension is too loose, the chain slips when the door slams. If it's too tight, the motor strains and drains the battery. The sweet spot usually allows for about 2mm of play in the chain.

Power & Battery Options

Hardwiring is rarely an option for a swinging door unless you use specialized power transfer hinges, which is overkill for most DIYers. You are likely looking at battery power.

Most modern retrofit motors utilize internal lithium-ion batteries rated around 2600mAh to 3000mAh. In my testing, with two up/down cycles per day, you can expect roughly 3 to 5 months of usage on a single charge. Look for motors with a USB-C charging port located on the side or bottom of the unit, not the back. You do not want to unmount the device just to charge it.

Ecosystem Integration and Noise Levels

Noise is a massive factor for bedroom doors or quiet living rooms. A cheap DC motor can sound like a coffee grinder, clocking in at 55dB+. High-end tubular motors or quality chain drivers should operate under 40dB—roughly the sound of a quiet library.

For integration, WiFi motors are the easiest to set up (no hub required) but suffer from "cloud lag." When you issue a voice command, it goes to the server and back, causing a 2-3 second delay. Zigbee motors require a Gateway or Hub (like an Echo Show with Zigbee built-in or a SmartThings hub), but the response is instant and works even if your internet is down.

Living with door pull down shade: Day-to-Day Reality

I want to share a specific annoyance I discovered only after living with my smart door shade for a month. It’s the "clatter factor."

When I first installed the shade, I didn't account for the bottom bar. Every time I opened the door to let the dog out, the shade's weighted bottom bar would swing out and bang against the glass. It was maddening. I eventually had to install magnetic hold-downs at the bottom of the door frame. Now, when the shade lowers, the bottom bar clicks into the magnets, keeping it tight against the glass even when the door swings open.

Another nuance: I use a solar panel charger on my south-facing windows, but on a door, the vibration kept knocking the suction cups loose. I eventually switched to charging it manually with a power bank once a season. It’s less elegant, but far more reliable.

Conclusion

Upgrading a door shade is one of the most practical smart home projects you can tackle. It solves the glare problem instantly and adds a layer of security when you are away. Just remember to prioritize battery placement and secure mounting to handle the door's movement.

Frequently Asked Questions

Can I still operate the shade manually if the battery dies?

If you use a retrofit chain driver, usually no. The gears lock in place. However, some tubular motors have a "tug" feature where a gentle pull initiates the movement, but generally, you need power to move them.

Do I need a separate Hub?

If you buy a WiFi version, no. If you choose Zigbee or Z-Wave for better battery life and local control, you will need a compatible gateway or a smart speaker that acts as a hub.

How do I hide the battery cable?

Ideally, buy a motor with an integrated battery so there are no external cables. If you use an external battery pack, Velcro strips on the top header of the shade cassette are the cleanest way to hide it from view.
