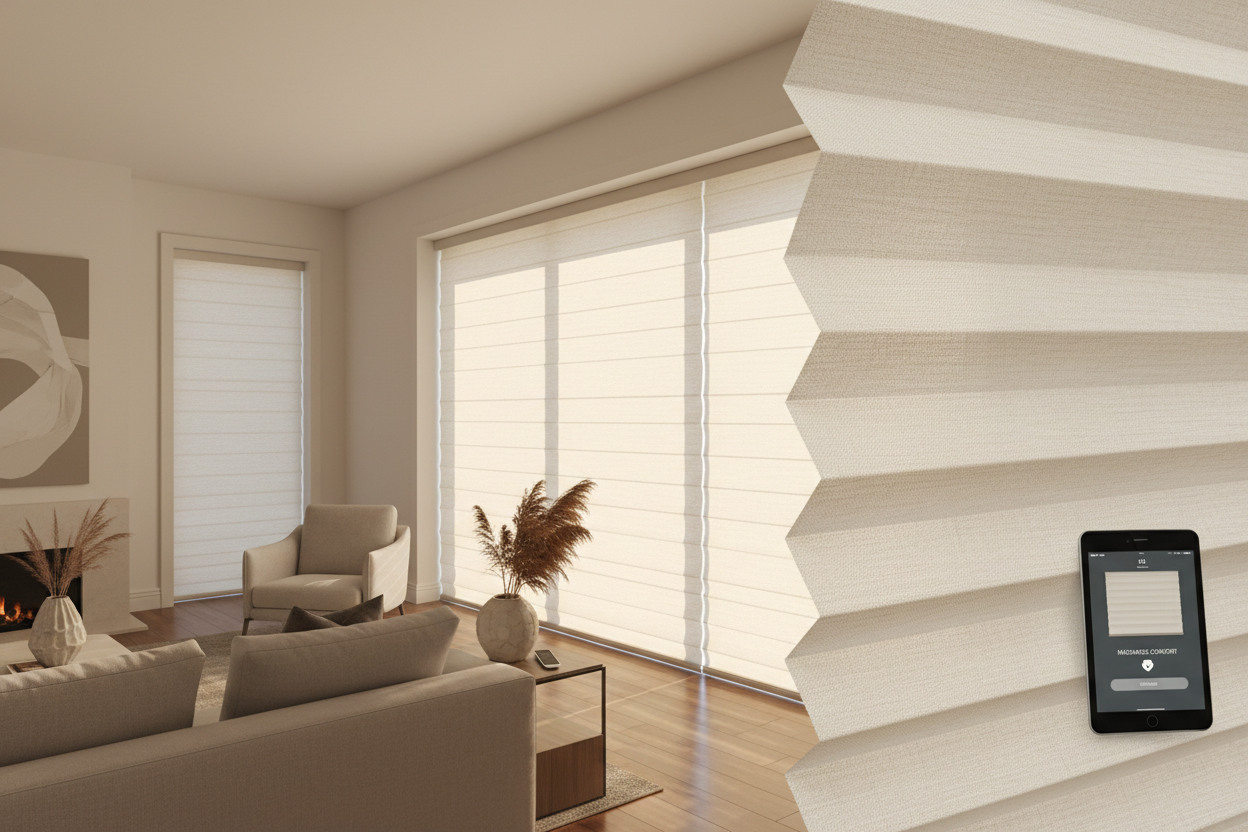

Maximize Comfort: Automating Triple Cell Honeycomb Shades

Imagine it's the dead of winter. You want to retain every ounce of heat in your living room, but getting up to manually adjust heavy insulating blinds every time the sun shifts is a chore. This is where smart triple cell honeycomb shades prove their worth. They aren't just window treatments; they are active energy management tools. By pairing the highest R-value fabric available with automation, you get climate control that reacts to the weather before you even feel a draft.

Key Specs at a Glance

Before you drill into your window frame, you need to know if the motor can handle the extra weight of triple cellular fabric and if it talks to your current hub.

The Weight Factor: Motor Selection Matters

Here is the technical reality: triple honeycomb blinds are significantly heavier than their single or double-cell counterparts. That extra layer of fabric and air pocket adds mass. If you try to retrofit these with a cheap, entry-level retrofit motor meant for roller shades, it will stall.

You need a motor rated for heavy lifting. Look for lift capacities exceeding 10 lbs, even for standard windows. If the motor struggles, you will hear a high-pitched straining noise, and the battery life will plummet because the motor is drawing peak amperage just to move the bottom rail.

Power Options: Battery vs. Hardwired

Because of the weight mentioned above, power delivery is critical.

• Hardwired (DC Power): If you are renovating, run low-voltage wire to the window header. This is the gold standard. It provides constant torque and you never have to charge them.
• Rechargeable Li-Ion: Most retrofits use this. For triple cellular window shades, avoid AA battery wands. They drain too fast under the load. Go for built-in lithium-ion motors that charge via USB-C. Expect a 4-6 month cycle rather than the standard 12 months due to the fabric weight.

Smart Integrations & Noise Levels

Connectivity Protocols

Don't rely on Bluetooth; the range is too short for whole-home shading. For the best response time, look for motors using Zigbee or the newer Thread protocol. These mesh networks ensure that when you say "Goodnight," the shade in the furthest bedroom closes instantly without that annoying 5-second lag.

The Decibel Check

Triple cell shades provide excellent sound absorption, but the motor itself makes noise. A quality smart motor should operate below 45dB. Since the motor has to work harder to lift the triple-layer fabric, cheap motors tend to grind. Test the noise level in a showroom if possible; in a quiet bedroom, a 50dB motor sounds like a power drill.

Living with Triple Cell Honeycomb Shades: Day-to-Day Reality

I’ve had triple cell shades installed in my home office for about eight months now, and there are two nuances the spec sheets don't tell you.

First, is the "Stack Height." Because there are three layers of cells, when the shade is fully raised, the bundle of fabric at the top is thick—much thicker than a single cell shade. I lost about 4 inches of view at the top of my window. If you have short windows, this creates a slightly claustrophobic feeling even when they are "open." I ended up switching to an outside mount installation to clear the glass completely.

Second, the acoustic dampening is startling. When the automation triggers at sunset and the shades lower, the room immediately sounds "dead," like a recording studio. It’s fantastic for audio work or sleeping, but the sudden silence can be jarring if you aren't expecting it. It’s a physical sensation of the room getting smaller and quieter.

Conclusion

Upgrading to smart triple cell honeycomb shades is a significant investment, largely due to the cost of the complex fabric and high-torque motors. However, for drafty homes or media rooms requiring blackout conditions and sound dampening, the performance is unmatched. Just ensure you account for the stack height and prioritize a robust power source.

Frequently Asked Questions

How long do batteries last with the heavier fabric?

On a standard window (36x60), expect roughly 4 to 6 months with daily use (one up/down cycle). This is shorter than single-cell shades due to the increased drag and weight.

Can I operate them manually during a power outage?

It depends on the motor style. Some "dual-mode" motors allow for manual tug-operation, but most smart motors lock the gear mechanism when unpowered. If power outages are frequent in your area, battery-powered units are safer than hardwired ones.

Do I need a specific hub?

Usually, yes. Unless you buy a Wi-Fi direct motor (which consumes more battery), you will likely need a bridge like the Bond Bridge, a proprietary hub (like Somfy or Lutron), or a smart home hub with a Zigbee antenna (like an Echo Show or SmartThings station).
