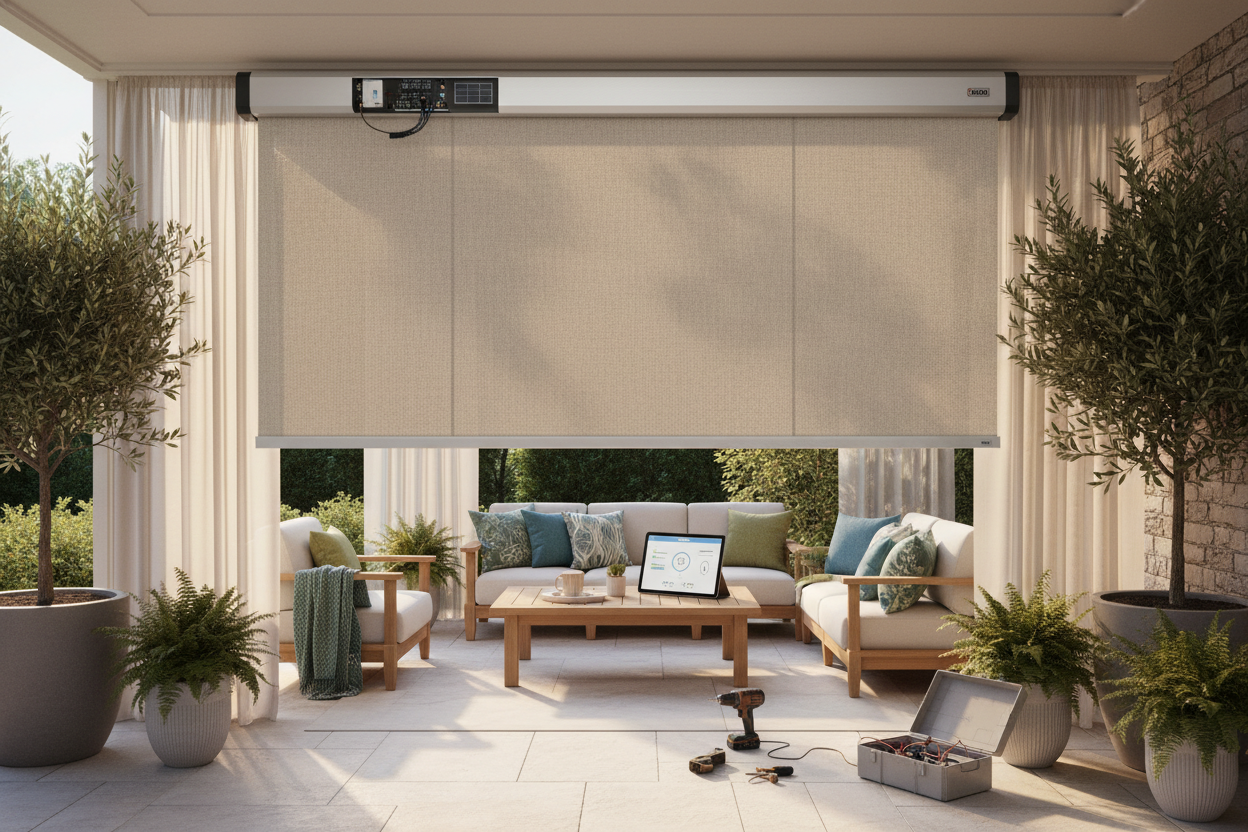

Motorize Your Outdoor Pull Down Shade: DIY Retrofit Guide

You are settling in on the patio with a laptop or a cold drink, but the late afternoon sun hits that exact angle where the glare becomes blinding. You don't want to interrupt your flow to manually crank a handle. This is the prime use case for a smart outdoor pull down shade. By adding motorization and voice control to your exterior window treatments, you gain privacy and temperature control without leaving your chair. It is less about laziness and more about optimizing your outdoor living space for actual daily use.

Key Specs at a Glance

Before drilling into stucco or siding, check these requirements to ensure your smart setup actually functions outdoors.

• Power Source: Rechargeable Li-ion battery (often 12V) or Hardwired (120V AC). Solar trickle charging is highly recommended for high-mount installs.
• Connectivity Protocol: RF (433MHz) is standard; requires a bridge (like Bond or Broadlink) for WiFi/App control. Zigbee options exist but are rarer.
• Weather Rating: Look for IP44 or higher on the motor unit to withstand moisture and dust.
• Smart Platform: Alexa, Google Home, SmartThings (via bridge).

Installation Realities: Retrofit vs. New Install

If you already have a manual crank shade, you are likely looking at a tubular motor retrofit. This involves sliding the manual mechanism out of the roller tube and inserting a motor.

Tube Diameter Matters

Most outdoor shades use a 38mm or 45mm tube. You must measure the inner diameter of your existing roller tube with a caliper before ordering a motor. If the crown and drive adapters don't fit significantly tight, the motor will spin inside the tube without moving the fabric.

Powering the Unit

For an outdoor shade pull down setup, running 120V hardwire is often a code violation unless you have existing exterior outlets near the soffit. The practical choice for most homeowners is a battery-powered motor paired with a small solar panel. Mount the panel on the fascia of the shade housing facing south or west. This keeps the battery topped off without you ever needing to fetch a ladder for recharging.

Ecosystem Integration: Getting It Online

Most outdoor motors communicate via Radio Frequency (RF) because it has better range through exterior walls than WiFi. However, RF is "dumb"—it doesn't inherently talk to your phone.

To get voice control, you need an RF-to-WiFi bridge. Devices like the Bond Bridge are the gold standard here. You teach the bridge the frequency of the handheld remote, and the bridge then presents that device to Alexa or Google Home. This allows you to say, "Alexa, set patio shade to 50%."

Living with outdoor pull down shade: Day-to-Day Reality

I have lived with a motorized retrofit on my back deck for about eight months now, and there are two nuances the spec sheets don't tell you. First is the wind noise. When I first set the "down" limit, I had the shade pulling tight against the bottom bungee chords. It looked clean, but even a 5mph breeze caused the fabric to drum loudly because it was under too much tension. I had to reprogram the limit to leave about an inch of slack, which stopped the noise completely.

Second is the RF delay. Unlike my WiFi bulbs that react instantly, there is a distinct 1-2 second pause between giving a voice command and the motor engaging. It’s not a dealbreaker, but the first few times you use it, you might think it failed and issue the command twice, causing the shade to stop and start jerkily.

Conclusion

Upgrading to a motorized outdoor shade pull down system transforms a patio from a "sometimes" space to an all-day room. While the initial setup requires careful measuring of tube diameters and bridge configuration, the ability to block the sun via voice command while your hands are full with a BBQ tray is an upgrade you will appreciate immediately.

Frequently Asked Questions

How long does the battery last without a solar panel?

With average use (one up/down cycle per day), a standard lithium motor battery lasts 3 to 6 months. A solar panel eliminates the need to recharge entirely in most sunny climates.

Can I operate the shade if the power goes out?

Only if you buy a motor with a "manual override" feature, which includes a loop for a hand crank. Standard tubular motors lock in place when unpowered and cannot be moved by hand.

Do I need a hub for these shades?

Yes. Since most outdoor motors use RF (433MHz) to penetrate exterior walls, you need a bridge/gateway to connect them to WiFi for app or voice control.
