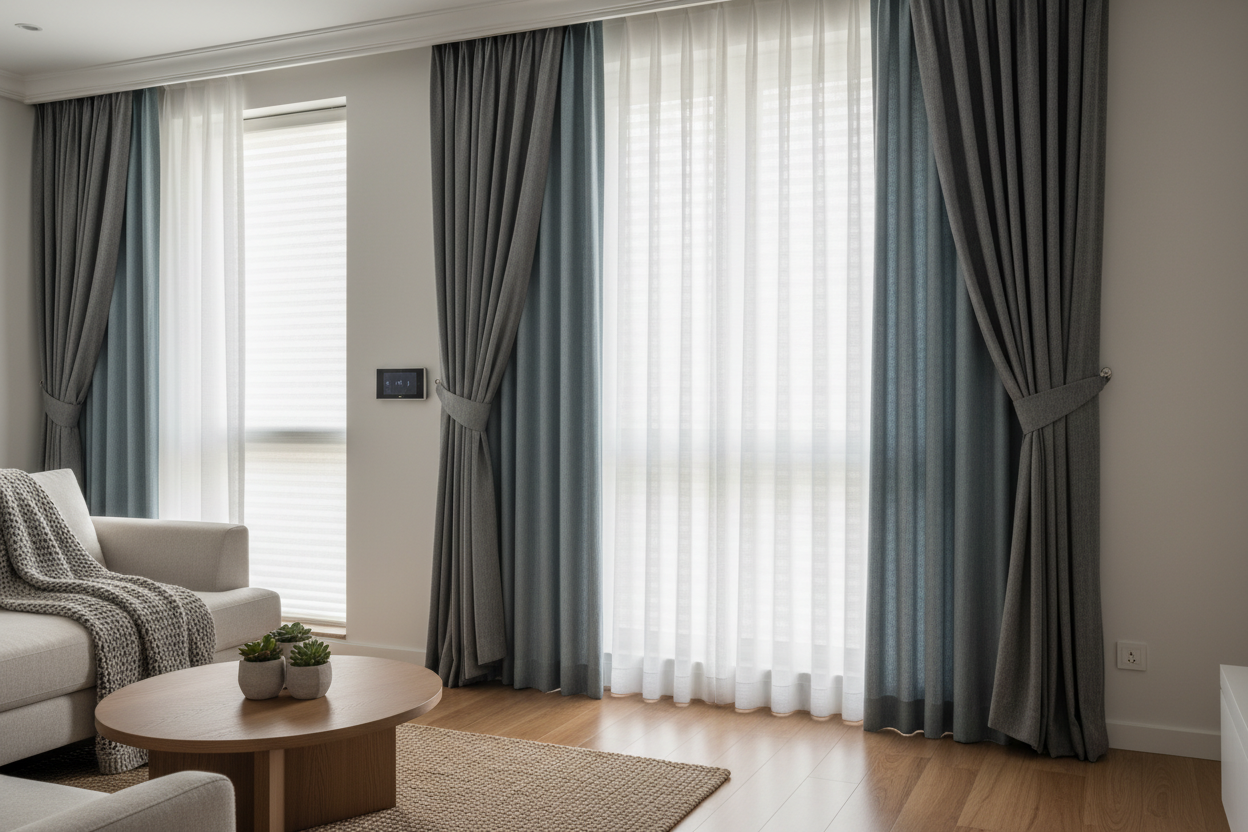

Motorized Cellular Shades with Curtains: The Dual-Layer Smart Setup

Imagine it’s 2:00 PM on a scorching Saturday. Your thermostat detects the living room heating up, and without you lifting a finger, your sheer honeycomb blinds lower to diffuse the light, while the heavy drapes glide shut to block the heat transfer. This isn't just about laziness; it's about energy management. Combining cellular shades with curtains creates a dual-layer barrier that maximizes insulation (R-value) while giving you granular control over privacy and natural light.

Key Smart Layering Specs

• Insulation Boost: Pairing honeycomb structures with heavy drapes can increase window insulation by up to 40%.
• Motor Noise: Look for motors under 45dB for bedrooms; anything louder becomes noticeable during quiet morning routines.
• Protocol: Zigbee or Thread is preferred for dual-device setups to ensure both the shade and curtain respond simultaneously without Wi-Fi lag.
• Mounting Depth: Requires at least 4-6 inches of depth if flush mounting the shades to allow curtain clearance.

The Tech Behind the Layers: Why Combine Them?

Many smart home enthusiasts start with just one window treatment, but layering cellular shades with drapes solves specific physics problems. Cellular (honeycomb) shades are engineered to trap air pockets, acting as a thermal insulator. When you add smart curtains over them, you seal the edges where air leakage typically occurs.

From a tech perspective, this allows for complex scene building. For example, a "Daytime Privacy" scene might lower the translucent cellular shades but keep the curtains open, allowing light in but blocking the view from the street. A "Cinema Mode" would trigger both to close, achieving near-total blackout conditions.

Hardware & Installation: Rods vs. Tracks

When installing curtains over cellular shades, the hardware choice defines the smart experience. You generally have two paths regarding the curtain layer:

1. Retrofit Curtain Bots (Rod Installation)

If you already have a decorative rod, devices like the SwitchBot Curtain 3 can push your existing fabric. However, be mindful of the weight capacity. Heavy velvet drapes often require motors rated for 17+ lbs (8kg). If the motor isn't powerful enough, it will struggle against the friction of the rod, resulting in a louder, straining motor sound and uneven movement.

2. Motorized Tracks

For a cleaner look, a dedicated motorized track (like those from Aqara or Somfy) is superior. These use a belt-drive system hidden inside the rail. They are significantly quieter—often humming around 30-35dB—and handle heavier loads with ease. The main consideration here is spacing; you must install the track far enough from the wall so the folding fabric doesn't snag on the headrail of the cellular shade behind it.

Power Options & Connectivity

Running power to two separate devices per window (the shade and the curtain) can get messy.

• Hardwired (Low Voltage): The gold standard. If you are renovating, run CAT6 or low-voltage wire to the window header. This eliminates battery anxiety and allows the motors to act as repeaters for your Zigbee or Z-Wave mesh network.
• Battery/Solar: Most retrofit honeycomb blinds with curtains setups rely on rechargeable Li-ion batteries. Look for shades with USB-C charging ports. Ideally, stagger your charging schedule so you aren't taking down all your window treatments at once.

Living with Cellular Shades with Curtains: Day-to-Day Reality

I’ve lived with this dual setup in my master bedroom for about eight months now, and there are sensory details the spec sheets don't mention. The first thing I noticed was the "sound signature." When I trigger my "Goodnight" scene, the cellular shades lower first with a high-pitched electronic whine, followed by the lower, mechanical rumble of the curtain track. It’s not silent, but it’s a reassuring confirmation that the house is locking down.

The trickiest part was the "light bleed" gap. I initially mounted the curtain track too close to the ceiling without accounting for the cellular shade's headrail projection. The result? The curtains would bunch up against the shade mechanism, leaving a 2-inch gap where streetlights pierced through. I had to re-mount the track two inches further out. It looks bulkier, but the blackout effect is finally genuine. Also, visually, the texture contrast is fantastic—the crisp, paper-like look of the honeycomb shades backlit by the sun looks surprisingly high-end when framed by soft linen drapes.

Conclusion

Integrating cellular shades with curtains is an investment that pays off in thermal efficiency and serious smart home flex. While it requires careful planning regarding spacing and motor synchronization, the ability to modulate light and heat with voice commands makes it a top-tier upgrade for any connected home.

Frequently Asked Questions

Do I need two separate hubs for the shades and curtains?

Not necessarily. If you choose devices that use the same protocol (e.g., both Matter over Thread or both Zigbee), they can connect to a single border router or hub like a SmartThings Station or HomePod. Mixing Wi-Fi curtains with Lutron shades would require linking their respective cloud accounts.

What happens during a power outage?

Battery-powered units will continue to work until the battery dies. Hardwired units usually stop working, but most smart curtain tracks have a "manual override" feature where a gentle tug allows you to pull the fabric by hand. Cellular shades are harder to operate manually if the motor is engaged.

How much space do I need between the shade and the curtain?

A safe rule of thumb is to allow at least 2 to 3 inches of clearance between the front of the cellular shade's headrail and the back of the curtain fabric to prevent snagging.
