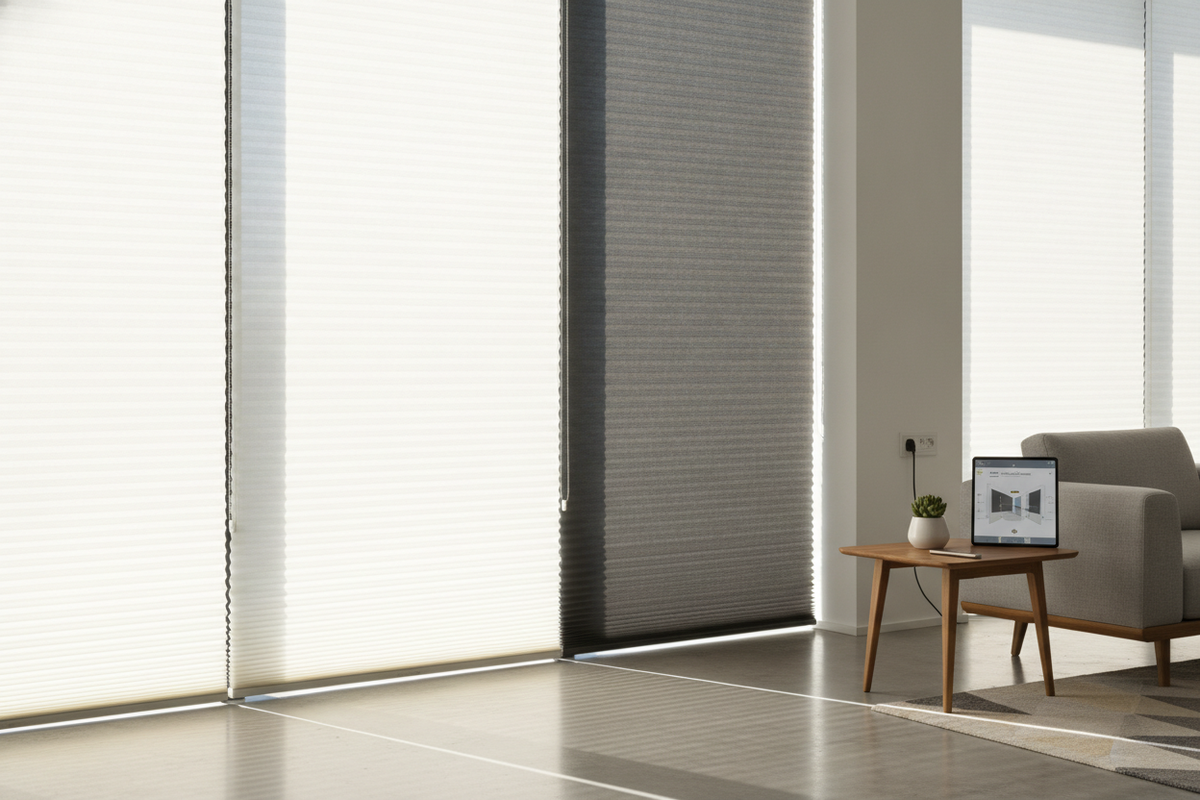

Motorized Day Night Cellular Shades: Dual-Motor Architecture, Power Topology, and Smart Automation

Integrating light diffusion and total privacy within a single window opening often requires complex compromises. Traditional treatments force a selection between sheer daylighting or heavy opaque fabrics unless dual cassettes are layered outward into the living space. Modern motorized day night cellular shades resolve this challenge by joining two distinct fabric densities vertically within a unified tracking assembly. Operating these shades smoothly requires an understanding of intermediate floating rails, motor synchronization, low-voltage power distribution, and multi-state position reporting across smart home platforms.

Mechanical Architecture of Day-Night Cellular Assemblies

A dual-fabric cellular shade stacks two cellular sections vertically: typically an upper translucent or sheer honeycomb fabric for daytime illumination, joined to a lower blackout or room-darkening fabric for evening privacy. The assembly operates across three parallel horizontal components: the fixed headrail, a moving intermediate rail (or middle floating bar), and the weighted bottom rail. As the intermediate rail descends, it deploys the daylighting fabric while collapsing the opaque section below it. Conversely, raising the bottom rail collapses the entire stack into the headrail reveal. For an overview of how these paired materials interact mechanically, review our night cellular guide.

Independent Dual-Drive vs Tandem Rail Mechanics

Window automation engineers generally approach day-night movement through one of two drive topologies:

• Independent Dual-Drive Systems: Two separate motors are installed in or alongside the headrail. One motor governs lift cords attached to the bottom rail, while the secondary motor manipulates suspension cords anchoring the intermediate rail. This design permits fully decoupled movement, allowing users to position the boundary between sheer and blackout fabrics anywhere along the vertical travel plane.
• Tandem Mechanical Couplings: A single bidirectional motor manages both fabrics through mechanical clutches or sequenced limit stops. Driving the motor in one direction first lowers the bottom rail with the sheer material exposed; continuing past an internal stop engages the intermediate rail to draw the opaque fabric down over the sheer section. While mechanically consolidated, tandem configurations limit intermediate positioning freedom compared to dedicated dual-motor designs.

When weighing purpose-built motorized assemblies against manual conversions, our motorized shades blinds guide details the mechanical constraints associated with retrofitting complex cord assemblies.

Headrail Load Capacity and Stack Dynamics

Dual-zone cellular assemblies double the static fabric weight and introduce compound kinetic forces during transit. Because the headrail must accommodate internal spool drums, cord channels, and one or two motor housings, its structural rigidity is critical. Long spans require robust aluminum extrusions to prevent center deflection, which could otherwise cause cord misalignment, uneven fabric lift, or motor strain. Furthermore, the combined stack height of compressed sheer and blackout pleats requires careful consideration to avoid obstructing outward sightlines when the window treatment is raised.

Power Sourcing: Hardwired Low-Voltage vs Rechargeable Battery Systems

Because day-night motorized blinds transition multiple times per day—adjusting for morning light, afternoon glare, and nighttime privacy—their daily transit cycles exceed those of standard single-fabric blinds. Selecting an appropriate electrical architecture ensures consistent operation without frequent maintenance burdens.

Internal Lithium-Ion Packs and Solar Assist

Rechargeable motors housing integrated lithium-ion batteries eliminate the need to run wiring through finished walls, making them practical for post-construction environments. However, the increased duty cycle of dual-fabric movement accelerates discharge rates. Specifiers must ensure easy physical access to the motor charging ports or route magnetic breakaway pigtails behind the headrail. Integrating slim photovoltaic trickle-charge panels mounted against the glass can mitigate manual recharging, provided the window receives adequate ambient light exposure.

Centralized Low-Voltage DC Distribution

For new construction or extensive renovations, hardwired low-voltage direct current (DC) distribution remains the standard for long-term reliability. Running dedicated two-conductor or multi-conductor homerun wiring back to a centralized power panel provides several advantages:

• Eliminates battery maintenance across high-transit dual-rail setups.
• Provides consistent voltage levels that prevent motor speed fluctuations across wide spans.
• Allows concealment of all power infrastructure within wall cavities and framing pockets.
• Simplifies simultaneous operation across multi-window installations.

Smart Home Ecosystems, Control Protocols, and Multi-Position Logic

Translating the physical movement of day night cellular shades motorized hardware into smart home ecosystems requires distinct positioning logic. Standard window covering integrations assume a single percentage value represents shade extension from fully open to closed. A day-night assembly, however, manages two moving boundaries.

Position Mapping: Translating Three Rails into Platform Controls

Smart platforms such as Apple Home, Google Home, Amazon Alexa, and Home Assistant interpret dual-rail hardware through specific profile abstractions:

• Dual-Entity Representation: The driver presents the shade as two independent shade devices—one representing the daytime sheer layer and the second representing the nighttime blackout layer. Automation routines adjust both virtual sliders to control the physical rails without mechanical binding.
• Compound Scene Logic: Hub-level controllers sequence transit commands to avoid physical collisions. For example, if the blackout rail is commanded to lower while the sheer rail is resting at the sill, the intermediate rail must lead the motion to prevent cord slack.

Modern radio platforms—including Thread, Zigbee, Z-Wave, and proprietary RF gateways—must maintain dependable two-way communication to report true position states back to the hub. For detailed examples of multi-layer scheduling, reference our night shades guide.

Autonomous Astronomical and Light-Triggered Scenes

Smart automation unleashes the full utility of motorized day night shades by tying shade movement to local solar progression and environmental sensors:

1. Civil Dawn / Morning Harvest: The bottom rail stays at the sill while the intermediate floating rail rises to the top casing, deploying sheer pleats to diffuse direct morning sunlight while maintaining interior privacy.
2. Solar Noon / Thermal Control: In high-exposure rooms, the system can partially lower the room-darkening fabric to mitigate solar heat gain while keeping the upper sheer exposed for ambient illumination.
3. Dusk / Full Blackout: As exterior ambient light falls below comfortable privacy thresholds, the intermediate rail descends completely, transitioning the entire opening into opaque fabric.
4. Night / Stack Retraction: Both rails can lift upward into the cassette reveal when room occupancy sensors clear or morning routines request an open view.

Window Architecture, Casing Tolerances, and Installation Constraints

Due to the increased depth requirements of housing tandem drives, spool assemblies, and dual cellular stacks, physical window casing tolerances require precise evaluation prior to installation.

Inside-Mount Depth Requirements and Rail Clearances

Achieving a clean inside-mount installation requires sufficient jamb depth. If the window frame reveal is too shallow, the headrail will protrude beyond the casing trim, creating unwanted light gaps around the periphery of the opaque pleats. Installers must confirm:

• Headrail mounting bracket clearance relative to window cranks, latches, or sliding sash handles.
• Uniform window squareness across top, middle, and bottom jamb widths to prevent fabric edge abrasion against the side jambs.
• Adequate clearance for the intermediate rail to traverse smoothly without catching on trim reveals.

For a detailed breakdown of casing depth verification, consult our cellular shades resource.

Specialty Glazing and Architectural Openings

Architectural window designs present unique installation demands. Deep sill projections, outward-opening casement operators, and segmented window banks require customized mounting brackets or reverse-roll fabric orientations. When planning treatments for non-standard geometric window frames or arched upper transoms, review our cellular resource to ensure compatibility between specialized shapes and automated dual-rail mechanisms.

Specification Decision Matrix: Selecting Your Motorized Day-Night Configuration

Choosing the ideal configuration requires balancing physical site conditions, wiring access, and automation expectations:

• For Finished Spaces Without Wiring Access: Specify internal rechargeable motors with rear-facing magnetic charging ports or discreet solar panel assists. Ensure the control protocol matches existing hubs (such as Zigbee or Thread) to avoid adding extraneous bridge hardware.
• For New Framing and Extensive Remodels: Pull dedicated low-voltage wiring to a central enclosure. A hardwired low-voltage DC setup delivers maintenance-free performance and supports heavier fabric spans.
• For Critical Sleep and Media Environments: Prioritize dual-motor assemblies paired with side light-blocking channels to ensure the opaque cellular pleats seal tightly against window jambs.
• For High-Turnover or Multi-User Spaces: Combine automated smart home schedules with dedicated wall-mounted scene controllers, ensuring occupants can shift between sheer, blackout, and open states without needing smartphone applications.
