My Covered Patio Still Had Glare (So I Added Overhang Shading)

I learned the hard way that a $15,000 aluminum patio cover doesn't actually stop the sun. It stops the rain, sure. It stops the vertical noon-time heat. But come 5:00 PM in July, the sun dips just low enough to shoot straight under the eaves, turning a relaxing dinner into a squint-fest where you can't even see the person across the table.

That is why I spent the last three weekends retrofitting my setup with automated overhang shading. It turns out that the 'fully covered' patio is a myth unless you have a way to dynamically extend that roofline vertically. Here is how I finally reclaimed my backyard from the evening glare.

Quick Takeaways

• Openness matters: 5% is the sweet spot for blocking glare without losing the view.
• Automate by angle: Don't use a clock; use solar azimuth and elevation data in your smart hub.
• Wind is the enemy: Exterior shades act like sails; an automated wind sensor is mandatory to prevent damage.
• Power source: Hardwired is best, but solar-recharged batteries are a viable retrofit if you have the exposure.

The Lie of the 'Fully Covered' Patio

Architects love to talk about indoor-outdoor flow, but they rarely talk about the 15-degree sun angle in late August. A fixed patio roof is a static solution to a dynamic problem. At midday, it is glorious. By late afternoon, that expensive roof is just a giant heat radiator while the actual sunlight bypasses it entirely, hitting your patio furniture at eye level.

I sat through three summers of moving my chair every twenty minutes to stay in the sliver of shade. I tried umbrellas, but they blew over. I tried those cheap plastic reed fences, but they looked like trash after one season. The problem wasn't the roof; the problem was that the roof didn't move with the sun.

Bridging the Gap: What Makes a Shade Overhang Work?

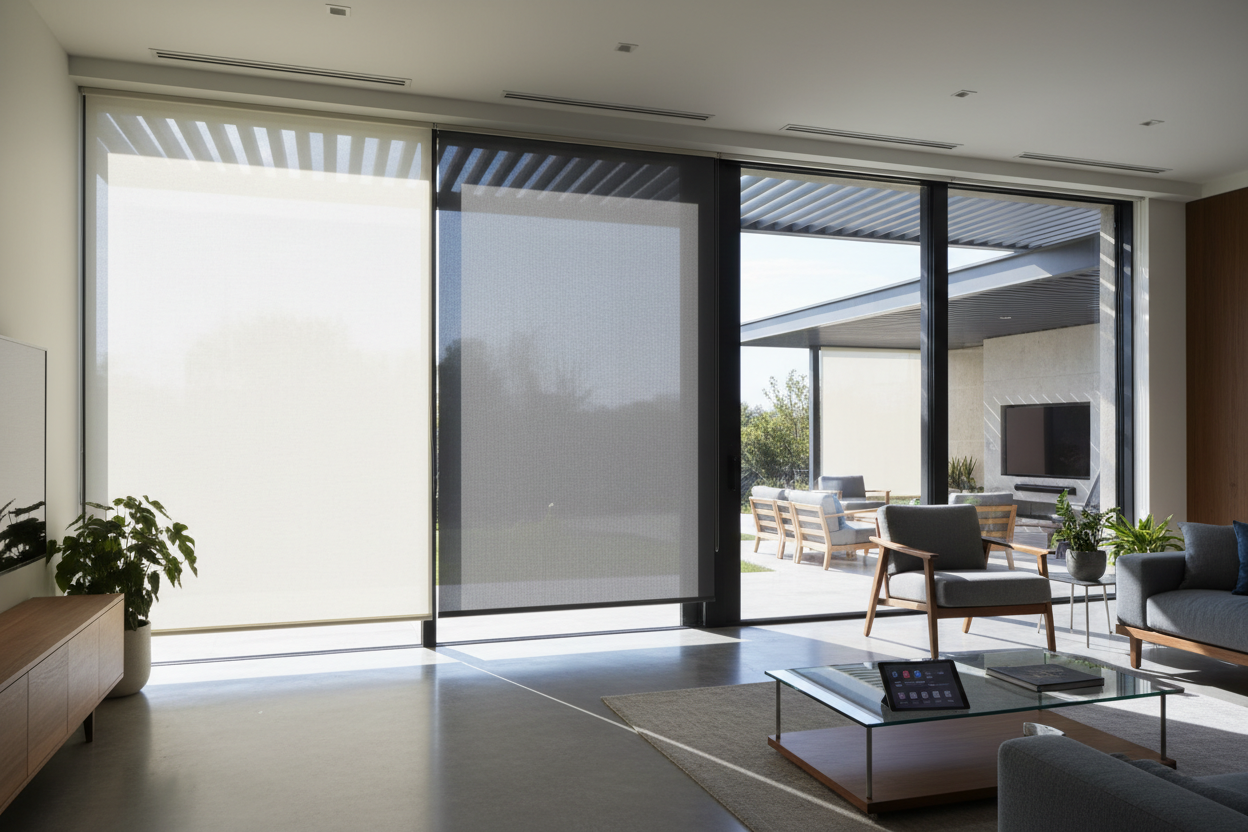

The fix is pairing a static architectural feature with dynamic smart tech. By mounting a motorized cassette directly to the interior fascia of my patio, I created a retractable shade overhang. When the sun is high, the shades are up and invisible. When the sun drops to that 'blind-everyone-at-the-table' level, the shades deploy.

You need specific materials for this. I opted for UV-blocking sunscreen solar shades because they handle the moisture and heat without warping. Unlike indoor rollers, these are designed to live in the elements, using heavy-duty weighted bottom bars so they don't flap like a flag in a light breeze.

Dialing in the Openness Factor for a Solar Overhang

One mistake I see people make constantly is buying blackout fabric for their outdoor spaces. Do not do this. If you use a 0% openness fabric, you turn your patio into a dark, stuffy box. You lose the breeze, and you lose the view of your yard. It feels claustrophobic.

For my solar overhang, I went with 5% openness. This is the goldilocks zone. It cuts about 95% of the glare and heat, but you can still see the trees and the pool through the mesh. It feels like wearing high-end sunglasses for your house. If you are unsure which direction your patio faces, check out this guide to selecting custom solar shades to match your specific exposure.

How I Actually Mounted the Cassettes to My Eaves

This is where the DIY gets real. These cassettes aren't light—mine weighed about 35 pounds for a 10-foot span. I had to pre-drill into the 4x10 structural headers of my patio cover using stainless steel lag bolts. If you just screw these into thin decorative trim, the first gust of wind will rip the whole thing down.

I also learned that durable exterior solar shades require a cable guide system. These are thin stainless steel aircraft cables that run vertically on each side of the shade. The bottom bar slides up and down these cables, which prevents the shade from banging against your house when the wind picks up. It is a tedious install, but it is the difference between a professional look and a flapping mess.

My Smart Azimuth Automations (Because Remotes Are Dead to Me)

The real magic happens in Home Assistant. I don't use a schedule because the sun doesn't follow a 7:00 PM clock—it changes every day of the year. Instead, I use the Sun integration to track 'Azimuth' (the horizontal position) and 'Elevation' (the vertical position).

My logic: If the Azimuth is between 240 and 280 degrees (West-facing) AND the Elevation is below 25 degrees, drop the shades to 100%. This ensures a perfect solar shade installation that reacts to the environment. I also have an anemometer (wind sensor) on the roof. If it detects gusts over 20mph, it overrides everything and retracts the shades immediately to save the motors.

The Final Verdict: Is It Worth the Upgrade?

It isn't cheap. Between the Zigbee motors, the custom-cut fabric, and the weather-rated cassettes, I spent about $1,200 for two large spans. But the ROI is immediate. I reclaimed about three hours of 'usable' patio time every single evening. No more squinting, no more sweating, and no more moving my chair every ten minutes. If you have a patio roof that leaves you blinded by the light, this is the only real fix.

FAQ

Can I install these on a wooden pergola?

Yes, but you need a flat mounting surface. Most people add a 2x6 'header' board across the front of the pergola to give the cassette a solid place to bolt into. Make sure the wood is rot-resistant like cedar or pressure-treated lumber.

Do solar-powered shades actually work in the shade?

Sort of. If the solar panel is tucked under a deep eave, it won't charge. I had to use a 10-foot extension cable for my solar panel to mount it on top of the patio roof where it actually sees the sky. Once I did that, the battery stayed at 100% all summer.

What happens if the power goes out?

If you have hardwired motors, they stay where they are. If you have battery-powered Zigbee motors, they usually have a manual 'tug' feature or a backup remote that works locally. I always keep one physical remote hidden in a drawer just in case my smart hub decides to take a nap.
