My Outdoor Projector Sucked Until I Hung Drop Down Patio Shades

I spent three grand on a 4K laser projector and a 120-inch ALR screen, thinking I had beaten the physics of outdoor cinema. I was wrong. No matter how many lumens your rig pumps out, a neighbor’s motion-activated floodlight or a poorly placed municipal streetlight will turn your high-contrast epic into a milky, washed-out mess. I spent two summers waiting until 9:30 PM just to get a decent black level, which is a non-starter when you have kids with an 8:30 PM bedtime.

Quick Takeaways

• Ambient light is the primary killer of outdoor projector contrast, not the projector's brightness.
• Motorized exterior shades act as 'walls' that create a controlled lighting environment.
• Side tracks are essential to prevent light 'halos' from bleeding through the edges.
• Hardwiring your motors is a one-time pain that saves you from the ladder-and-charging-cable cycle.

The 8 PM Waiting Game (Why My Projector Looked Terrible)

The math of outdoor projection is simple and frustrating. If your 'black' levels are limited by the amount of ambient light hitting the screen, your image will never look better than the wall it is projected on. In my backyard, that meant fighting a 5000K LED street lamp that felt like it was hovering directly over my patio. Even at dusk, the image was flat. I tried building cardboard baffles and repositioning the screen, but you can not hide from light that bounces off every surface.

The frustration peaked during a screening of 'The Batman.' If you have seen that movie, you know it is essentially 176 minutes of different shades of black. On my patio, it looked like a gray smudge. I realized I did not have a projector problem; I had a light pollution problem. Waiting for the sun to fully set meant half the movie was over before the image looked 'good.' I needed a way to fake total darkness at 7:30 PM.

Fixing Ambient Light With a Drop Down Shade for Patio

I finally stopped looking at more expensive projectors and started looking at drop down patio shades. The goal was to enclose my covered patio on three sides, effectively turning an outdoor space into a black-box theater on demand. I did not want manual cranks—if I have to spend ten minutes wrestling with bungees and poles, I am just going to go inside and watch the 65-inch OLED.

I settled on the Sirus Series Motorized Outdoor Shades because they offered a high-density weave that blocked about 95% of incoming light. When you are dealing with drop down shades for a theater setup, you need to look at the 'openness factor.' A 5% or 1% weave is the sweet spot. It stops the glare from the neighbor’s porch but still allows enough airflow so you do not bake inside your new 'room.' The difference was immediate. I could drop the shades while the sun was still hitting the trees, and my screen contrast jumped by at least 400%.

Why You Need Side Channels for a True Theater Vibe

If you just hang a standard drop down shade for patio use, you will quickly notice the 'halo effect.' Wind catches the fabric, and light leaks in through the 2-inch gaps on the left and right sides. For a casual dinner, it is fine. For a movie, those vertical slivers of light are incredibly distracting. They draw your eye away from the screen and kill the immersion.

The fix is adding Side Rail Tracks For Blackout Shades. These tracks capture the edges of the fabric—some systems use a 'zip' technology where the fabric is literally locked into the rail. This does two things: it makes the shade wind-proof (up to a certain mph) and it eliminates every last bit of light bleed. Once I installed these, my patio went from 'shaded' to 'darkroom.' I could sit three feet from a neighbor’s floodlight and not see a single stray photon on my screen.

Powering the Setup (Why I Hardwired Everything)

When you are buying motorized shades, you will face the 'battery vs. hardwired' debate. Battery motors are tempting because you do not have to hire an electrician or fish wires through your soffits. But here is the reality: outdoor shades are heavy. They require high-torque motors to move that much fabric, especially if you have side tracks that add a bit of friction. Batteries in these units usually last 3 to 6 months, but that window shrinks in the winter.

I read up on Smart Pull Down Patio Shades Battery Vs Hardwired Power and decided to go the 120V hardwired route. I did not want to be the guy standing on a 10-foot ladder with a micro-USB cable twenty minutes before guests arrived for a premiere. By running dedicated power, the motors move faster, they are quieter (usually under 40dB), and they never 'fall off' the Zigbee network because of a low-voltage radio. If you are building a permanent theater, do yourself a favor and pull the wire.

The Movie Time Routine: Syncing It All Together

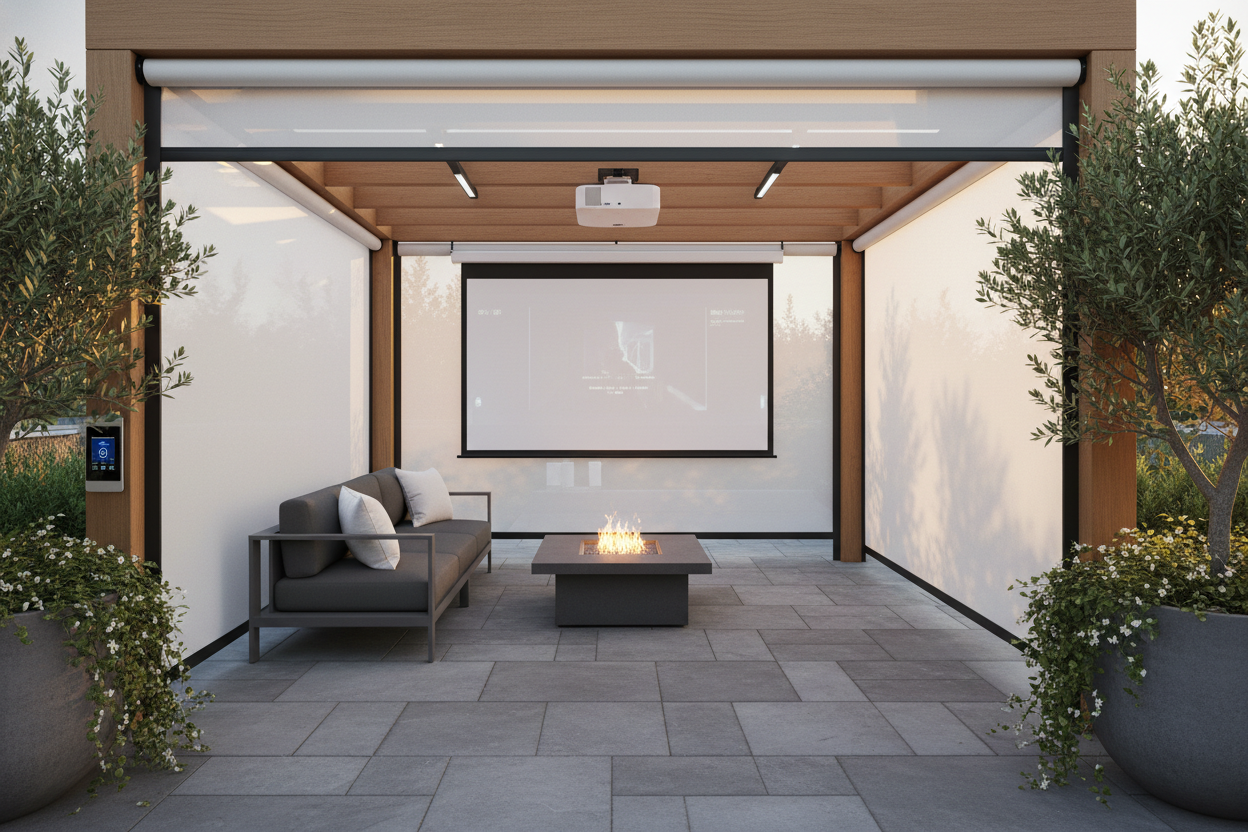

The real magic happens when you integrate the shades into your smart home hub. I use a Bond Bridge to talk to the shade motors and a Hubitat for the logic. Now, when I tell the voice assistant it is 'Movie Time,' a sequence of events triggers that still makes me grin. The string lights dim to 10%, the projector fires up, the screen drops from the ceiling, and the three Patio Shades roll down in perfect synchronization.

It takes about 45 seconds for the whole 'theater' to deploy. In that time, I have gone from a bright, breezy patio to a private cinema. The best part? I can start the movie at 7:30 PM in the middle of July. The shades block the direct late-afternoon sun and the neighbor’s annoying security lights. It is the only way to do outdoor theater right.

Personal Experience: The Wind Sensor Snafu

I have to be honest: it was not all perfect from day one. I installed an anemometer (wind sensor) that was supposed to auto-retract the shades if things got too gusty. During the climax of 'Top Gun: Maverick,' a moderate breeze kicked up, and the sensor decided my shades were in danger. All three shades started rising right as the final dogfight began. I had to go into the app and override the safety limits. Word to the wise: calibrate your wind sensors properly, or a stiff breeze will ruin your third act.

FAQ

Do patio shades make it too hot?

Actually, they usually make it cooler. By blocking the IR radiation from the sun, the ambient temperature under the patio drops. Just make sure you have a ceiling fan to keep the air from getting stagnant.

Can I install these myself?

If you are comfortable leveling a 10-foot headbox and drilling into masonry or wood beams, yes. However, getting the side tracks perfectly plumb is critical. If they are off by even a quarter inch, the fabric will bind.

Will the fabric mold?

Quality exterior shades use PVC-coated polyester or fiberglass. They are designed to get wet and dry out. Just don't leave them rolled up wet for weeks at a time; let them air dry after a storm before retracting them.
