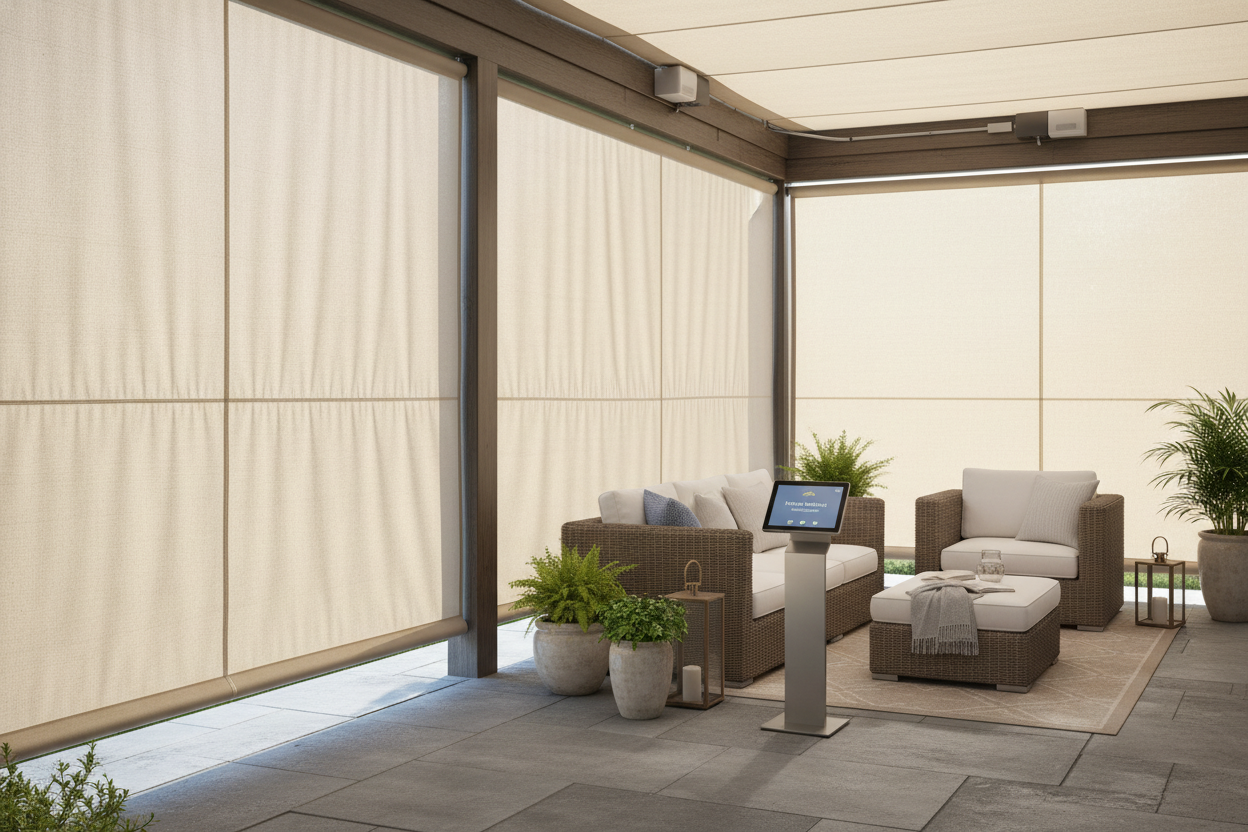

Outdoor Canvas Shades: Adding Smart Motors for Patio Privacy

Picture sitting on your back deck with a morning coffee, only to have the early sun blast directly into your eyes. Instead of getting up to wrestle with a rusty hand crank, your outdoor canvas shades quietly lower to the exact right height, triggered by a simple sunrise routine. Motorizing your exterior blinds takes the hassle out of patio privacy and temperature control. By the end of this breakdown, you'll know exactly what motor systems work best outside, how to power them, and if a retrofit makes sense for your home.

What You Need to Know First

• Motor Type: Tubular motors are standard for heavy canvas, requiring a minimum 1.5-inch to 2-inch roller tube.
• Weather Rating: Look for IP44 or IP55 ratings to ensure the motor and battery can survive wind and rain.
• Power Source: Solar-charged battery packs are the easiest retrofit; hardwiring requires an electrician but offers maintenance-free reliability.
• Critical Add-on: A wind sensor (anemometer) is non-negotiable to prevent heavy winds from tearing the fabric or ripping the hardware out of your siding.

Upgrading Your Patio Setup

Retrofitting Existing Hardware

If you already have manual canvas outdoor shades, you don't necessarily need to buy a whole new system. Many brands sell retrofit tubular motors that slide directly into your existing roller tube. The catch is measuring the internal diameter of your current tube with digital calipers. North American standards usually hover around 38mm or 50mm, but heavy-duty canvas often uses thicker tubes to prevent bowing in the middle. If your current shades use a continuous cord loop, replacing the clutch mechanism with a motor is a straightforward weekend project.

Weatherproofing the Electronics

Outdoor installations require a different class of hardware than indoor bedroom blinds. The motor head, charging port, and antenna must be sealed against moisture. When mounting the brackets, you need to account for water runoff. I highly recommend installing a protective cassette or weather guard over the rolled-up shade to protect both the motor housing and the canvas itself from rot and ice buildup during winter months.

Powering Exterior Motors

Solar Panels vs. Hardwired

Battery-powered motors paired with a small solar panel are incredibly popular for patio setups because they eliminate the need to drill through exterior walls for wiring. A standard 12V solar panel mounted just above the shade cassette can keep a lithium-ion motor topped up indefinitely, provided you have decent south or west exposure. However, if your porch has deep eaves that block direct sunlight, you'll be climbing a ladder every six months to plug in a USB-C cable. In that case, paying an electrician to run low-voltage wire to a hardwired motor is worth the upfront cost.

Smart Ecosystems and Sensors

Wind Sensors and Automations

Heavy canvas acts like a sail in high winds. If you leave your canvas porch shades down during a storm, the sheer force can rip the mounting brackets right out of your wall. This is where smart tech actually protects your investment. Systems like Somfy or specialized Zigbee outdoor motors can pair with a wireless wind sensor. When the sensor detects sustained winds over a threshold you set (e.g., 15 mph), it automatically forces the shades to roll up, overriding any other schedules.

Voice and Hub Integration

Most exterior motors operate on RF (radio frequency) to ensure range through thick exterior walls. To connect them to Alexa, Google Home, or Apple HomeKit, you'll typically need a dedicated bridge or hub plugged indoors near the patio. Once connected, you can build routines that lower the shades when your smart thermostat detects the outdoor temperature creeping above 80 degrees, keeping your patio cool automatically.

Living with outdoor canvas shades: Day-to-Day Reality

I installed a motorized setup on my heavy canvas outdoor shades last spring, opting for a solar-charged RF motor connected to a smart bridge. The convenience is fantastic, but there are a few quirks you only notice once you live with them. First, the motor hum is surprisingly loud. Unlike the whisper-quiet motors on my indoor living room curtains, the outdoor tubular motor makes a distinct, mechanical grinding sound. It's not a dealbreaker, but it definitely interrupts a quiet patio conversation for the 15 seconds it takes to lower.

Second, the wind sensor took a lot of tweaking. Out of the box, it was so sensitive that a mild afternoon breeze would trigger the safety override, rolling the shades up right when we needed them most for sun protection. I had to adjust the sensitivity dial several times before finding the sweet spot.

Lastly, I learned the hard way that you should never operate the motors when the canvas is soaking wet. The fabric holds a massive amount of water weight, and I could hear the motor straining and slowing down significantly after a heavy rainstorm. Now, I have a routine that keeps them rolled up if the weather forecast predicts rain.

Frequently Asked Questions

Can I still open motorized outdoor shades manually during a power outage?

Most battery-powered and solar outdoor motors do not have a manual override clutch. If the battery dies completely or the motor fails, you cannot pull them up by hand without unmounting the tube. Hardwired motors will simply stay in their current position during a power outage.

How long do solar-charged batteries last?

If the solar panel receives at least 2-3 hours of direct sunlight a day, the battery will rarely drop below 80%. If you rely solely on the battery without a solar panel, expect to recharge it every 4 to 6 months, depending on how heavy the canvas is and how often you use it.

Do I need a hub for these shades?

Yes, if you want smartphone control, voice commands, or weather-based automations. Most outdoor motors use RF remotes out of the box. You will need the manufacturer's specific smart hub to translate that RF signal onto your home's Wi-Fi network.
