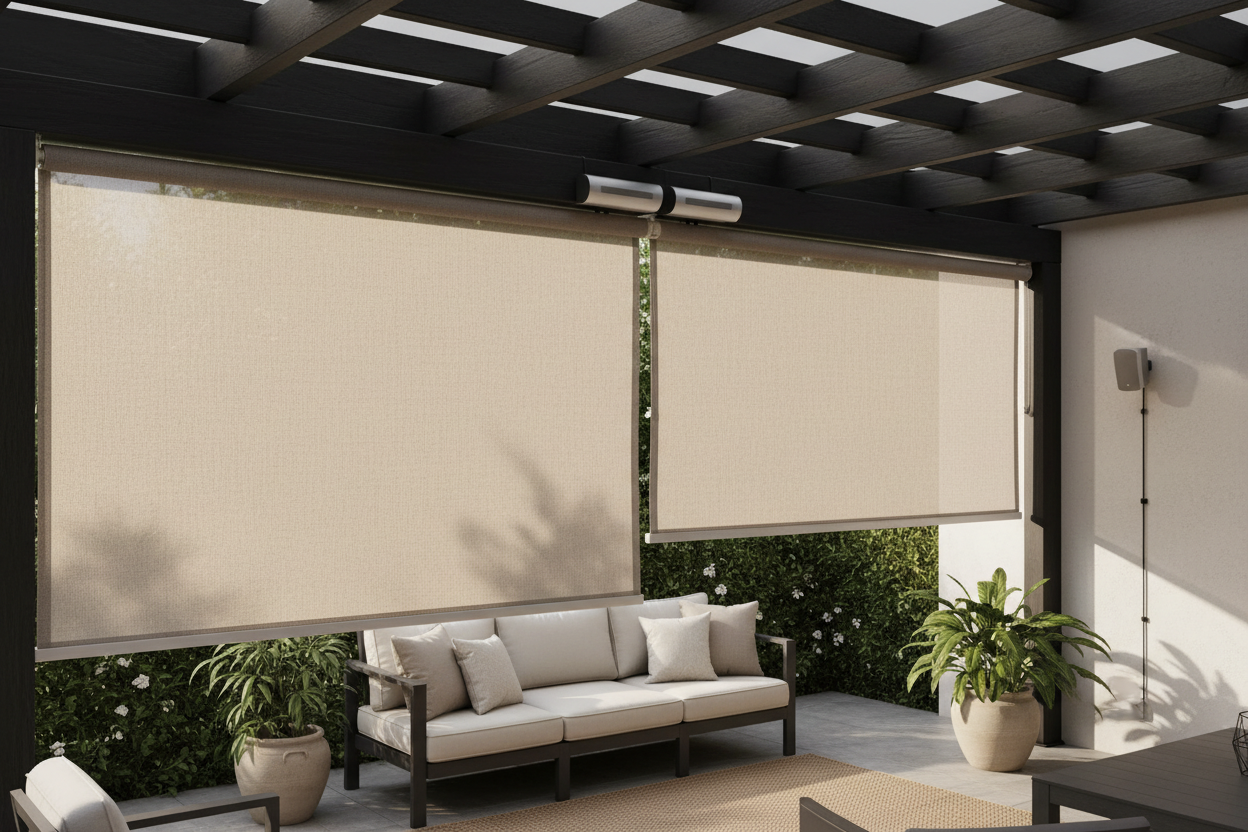

Outdoor Roll-Up Shade Hardware: Making Your Patio Smart

Picture this: You are hosting a summer barbecue, and the late afternoon sun suddenly dips below the awning, blinding half your guests. Instead of abandoning the grill to manually crank down the patio blinds, a simple voice command lowers them perfectly to block the glare. Upgrading your outdoor roll-up shade hardware from manual cranks to a connected, motorized setup fundamentally changes how you use your backyard. In this guide, we will look at what it takes to retrofit your exterior shades, which motors actually survive the elements, and how to tie it all into your smart home.

Quick Compatibility Check

Before buying a motor or a new roll up shade hardware kit, you need to verify a few physical specs on your patio. Here is what dictates your upgrade path:

• Tube Diameter: Exterior shades are heavy. Most require a 38mm (1.5-inch) or 50mm (2-inch) aluminum tube. Measure the inside diameter of your current tube before buying a retrofit motor.
• Motor Torque: Look for at least 2Nm to 3Nm of torque. A standard 1Nm indoor motor will stall out trying to lift thick, weather-resistant PVC fabric.
• Weather Rating: The motor head and charging port must be IP65 rated or higher to survive rain and humidity.
• Protocol Range: Wi-Fi and Zigbee signals degrade through exterior brick and stucco. You may need an outdoor-rated smart plug nearby to act as a repeater.

Upgrading Your Existing Setup

Evaluating the Shade Mechanism

If you already have manual exterior blinds, you do not necessarily need to buy a whole new outdoor roller shade kit. You can often pull out the manual clutch and insert a smart tubular motor directly into the existing housing. The tricky part is the mounting brackets. Motor heads have specific pin shapes (usually a star or square drive), so you will likely need to swap your existing wall brackets for the ones included with your new smart motor. Make sure your mounting surface (wood pergola, brick wall, or vinyl siding) can handle the slightly altered bracket footprint.

Powering Exterior Motors

Solar Panels vs. Rechargeable Batteries

Running hardwired AC power to the top of a pergola is expensive and often requires an electrician. For most retrofits, battery-powered motors are the realistic choice. A heavy-duty exterior motor will run for about 3 to 4 months on a single charge if operated once a day. However, adding a small, weather-resistant solar panel (usually sold as an accessory) changes the math. Mounted just above the shade cassette, a 3W solar panel keeps the motor topped up year-round, meaning you never have to climb a ladder with a portable power bank.

Tying It Into Your Smart Ecosystem

Hubs, Range, and Wind Sensors

Most reliable exterior motors use Zigbee or RF (Radio Frequency) rather than Wi-Fi to save battery. This means you will need a compatible hub indoors. If you use HomeKit, SmartThings, or Alexa, look for a Matter-compatible Zigbee bridge. One crucial automation for exterior shades is wind protection. By integrating a smart weather station or a dedicated RF anemometer, you can create a routine that automatically raises the blinds if wind speeds exceed 15 mph, preventing the fabric from acting like a sail and tearing the hardware out of your wall.

My Installation Notes: Day-to-Day Reality

I retrofitted my west-facing porch blinds last spring, and it was a learning curve. The 3Nm Zigbee motor I bought handles the heavy 10-foot PVC fabric beautifully, and tying it to a sunset routine means the patio is shaded exactly when the evening glare hits. However, I learned the hard way about material quality. The standard roller shade hooks and screws that came with my budget-friendly retrofit kit started showing rust after just one month of spring rain. I had to take everything down and replace the mounting hardware with marine-grade stainless steel.

Another quirk: the motor is noticeably louder than my indoor bedroom shades. It makes a distinct, low-pitched grinding hum. Outdoors, with neighborhood noise and wind, it is not a dealbreaker, but it is definitely not silent. Also, calibrating the top and bottom limits took several tries because the heavy fabric stretches slightly when it gets warm in the afternoon sun.

Frequently Asked Questions

Can I use an indoor motor for an outdoor roller shade kit?

No. Indoor motors lack the IP (Ingress Protection) rating needed to keep moisture out of the electronics. They also generally lack the torque required to lift heavier exterior-grade fabrics and will burn out quickly if exposed to wind resistance.

How do I protect the shade mechanism from heavy winds?

You should install a wind sensor (anemometer) or set up a smart home routine tied to local weather data. When wind gusts are detected, the system should automatically roll the shades up into their protective cassette so the hardware does not bend or rip from the wall.

Do I need a dedicated hub?

Usually, yes. Because Wi-Fi drains batteries rapidly, most battery-operated exterior motors use Zigbee, Z-Wave, or proprietary RF protocols. You will need a bridge plugged in indoors (ideally near the patio door) to translate that signal to your Wi-Fi network for voice control and remote access.
