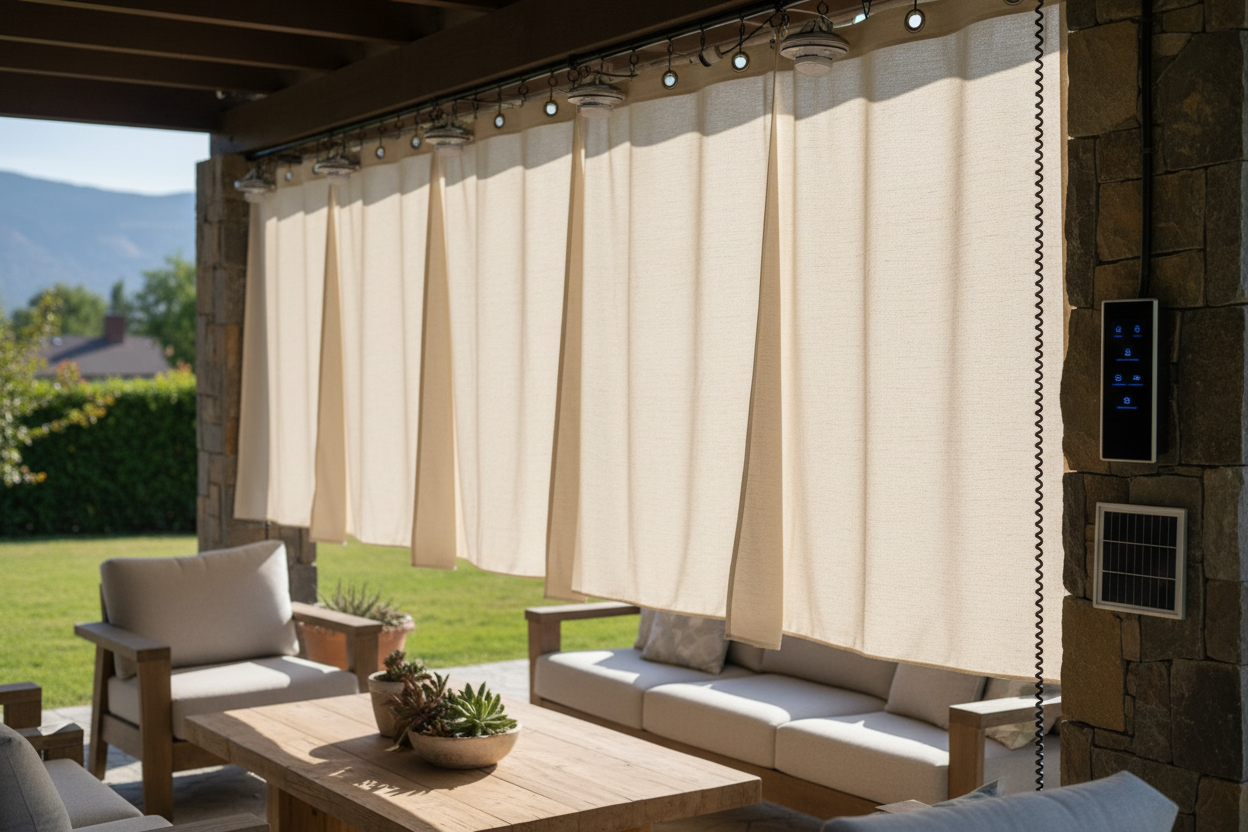

Outdoor shades that hang on hooks: The Smart Retrofit

Picture this: You are relaxing on your patio with a cold drink. The late afternoon sun dips below the roofline, instantly blinding you and heating up the deck. Instead of getting up to manually unhook and crank a heavy fabric roll, you simply say, 'Alexa, drop the patio shades,' and the glare disappears. Over the last few months, I have been testing how to retrofit basic outdoor shades that hang on hooks with smart, motorized roller systems. It requires a bit of DIY patience, but it completely changes how you use your outdoor living space.

By adding a tubular smart motor to an existing manual shade, you get the benefits of high-end custom patio enclosures without the massive price tag. In this guide, I will break down exactly how to pull off this retrofit, what hardware actually survives North American weather, and whether it is worth the effort.

Quick Retrofit Compatibility Check

Before buying a motor to upgrade your manual shades, check these four critical hardware points on your existing setup:

• Tube Diameter: Most smart roller motors require a 1.5-inch (38mm) hollow aluminum tube. If your shades roll around a solid piece of wood or a tiny PVC pipe, you will need to replace the tube.
• Weight Capacity: Outdoor fabrics are heavy. Look for a motor with at least 3Nm of torque to handle thick, weather-resistant materials.
• Anchor Points: You cannot rely on standard bungee tie-downs once motorized. You will need heavy-duty guide wires or side channels to prevent wind damage.
• Protocol: Zigbee motors are highly recommended for outdoors, as they create a mesh network that easily reaches through thick exterior walls better than standard Wi-Fi.

From Manual to Motorized: The Installation Reality

Adapting the Hardware

If you already own basic outdoor blinds with hooks, the good news is that the fabric itself is usually high quality. The bad news is the mounting hardware. You cannot just slap a motor onto a flimsy plastic crank loop. You have to remove the manual clutch mechanism, slide a battery-powered tubular motor into the roller tube, and replace the end brackets with the heavy-duty metal brackets supplied with the motor. You will likely need to bypass the original outdoor shade hooks entirely at the top, mounting the new brackets directly into your porch header or pergola beams.

Managing Wind and Weather

Smart motors do not know when it is windy. If a gust catches a half-lowered shade, it acts like a sail and can rip the brackets right out of the wood. To fix this, I installed stainless steel guide wires running from the top header down to the deck floor. The bottom hem bar of the shade slides up and down these wires, keeping the fabric taut and secure even on breezy afternoons.

Powering Your Patio Setup

Battery vs. Solar Solutions

Running hardwired AC power to outdoor shades is expensive and often requires an electrician. Instead, I opted for rechargeable lithium-ion motors. Manufacturers claim these batteries last six months, but pushing heavy outdoor fabric requires more juice than indoor bedroom blinds. In my testing, a full charge lasts about three to four months with daily use.

To solve the charging annoyance, I paired the motors with small, weatherproof solar panels mounted on the roofline. As long as the panel gets three hours of direct sunlight a day, the motor stays permanently topped up at 100%. It is a true set-it-and-forget-it solution.

Smart Ecosystem Integration

Tying it into Alexa and HomeKit

Connecting an outdoor shade with hooks (now motorized) to your smart home usually requires a bridge or hub. I use a Zigbee hub plugged into an outlet just inside the patio door. This relays the signal from my Apple HomeKit setup out to the motors. The real magic happens with automations. I set up a routine that automatically lowers the west-facing shades at 4:00 PM when the summer sun hits the patio, and raises them at sunset. You can also link them to a local weather API or a smart weather station to automatically retract if wind speeds exceed 15 mph.

Living with outdoor shades that hang on hooks: Day-to-Day Reality

Upgrading these shades has been fantastic, but it is not without its quirks. The motor on my main patio unit makes a distinct mechanical whine. It is not a dealbreaker outdoors, but it is noticeably louder than the ultra-quiet smart shades I have in my living room.

Another unexpected learning: I initially tried to keep the bottom outdoor shade hooks to lock the shade in place when fully lowered. This was a mistake. If I accidentally triggered a voice command to raise the shade while it was still physically hooked at the bottom, the motor would fight the hooks, straining the fabric and overheating the motor. I quickly swapped the hooks for a magnetic catch system at the base. It holds the shade steady in the wind but easily breaks free when the motor starts pulling upward.

Frequently Asked Questions

Can I still use the shade manually if the smart motor dies?

No. Once you install a tubular smart motor inside the roller tube, the manual crank or pull chain is removed. If the battery dies, the shade is stuck in its current position until you recharge it. This is why adding a solar panel is highly recommended for outdoor setups.

Do I need a special weather-rated hub for outdoor shades?

The motor itself must be rated for outdoor use (look for IP54 or higher), but the smart hub should remain indoors. As long as the indoor hub is placed near the exterior wall or window closest to the patio, the wireless signal (RF or Zigbee) will easily reach the motors.

Can a standard indoor motor lift heavy outdoor fabric?

Usually, no. Indoor motors typically offer 1Nm to 2Nm of torque, which is fine for light polyester. Outdoor shades absorb moisture and use thick, heavy PVC or canvas. You need a motor with at least 3Nm of torque, otherwise the motor will burn out prematurely from the strain.
