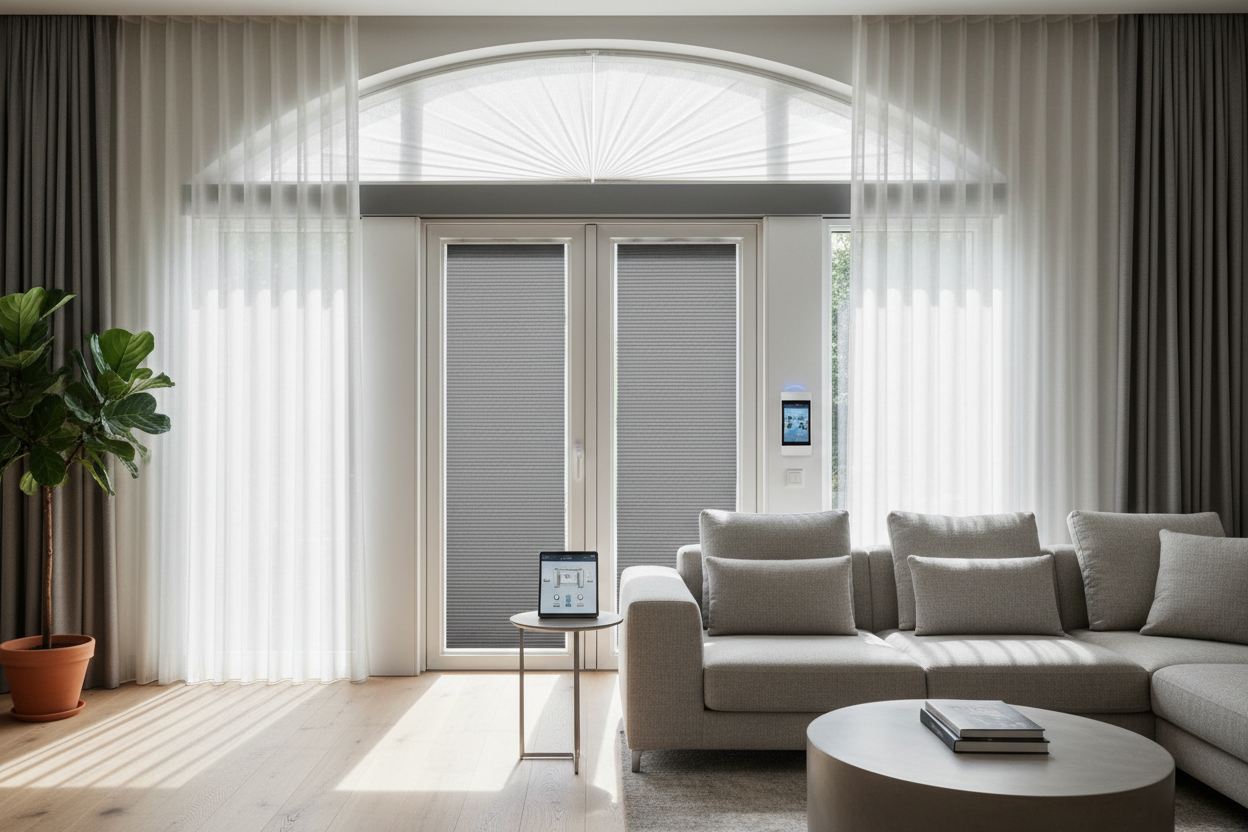

Patio Door With Transom Window Treatment: Smart Setup Guide

We've all been there: you buy a house with gorgeous architectural glass, only to realize the morning sun turns your living room into a greenhouse. Finding the right patio door with transom window treatment usually ends in a frustrating compromise. You either leave the top glass bare and deal with the glare, or you hang a massive, heavy drape high above the frame that makes the room feel like a theater stage.

I spent months trying to figure out how to handle the glass sliders in my dining room without ruining the aesthetic or blocking the door's everyday function. The solution wasn't a specific fabric—it was adding a smart motor. By splitting the treatment into connected zones, I can now drop the transom shades using a voice command when the afternoon sun hits, while leaving the door shades open for the dog. Here is exactly how to plan your setup.

What You Need to Know First

• Clearance is king: Ensure you have at least 2.5 inches of mounting depth above the door frame so the shade cassette doesn't block your sliding door or French door handles.
• Split the treatment: Treat the transom and the door independently. Motorize the hard-to-reach transom, and use matching motorized or manual shades for the door.
• Power source planning: High transoms are perfect candidates for solar-charging battery motors, eliminating the need to climb a ladder every six months.
• Protocol check: Matter-over-Thread motors are currently the most responsive for grouping multiple shades together without lag.

Installation & Retrofit Strategies

Treating Them as One Unit vs. Two

The biggest mistake I see when people look for window treatments for patio doors with transom is trying to cover the entire opening with one giant vertical blind or curtain panel. Not only is this heavy and hard for standard retrofit motors to pull, but it also means you lose all natural light just to get some privacy at the door level.

Instead, mount a dedicated motorized roller shade inside the transom frame, and a separate track or shade for the door below. If you use a unified smart home platform like Apple HomeKit or SmartThings, you can group them digitally to act as one unit when you want total blackout, but operate them independently during the day.

Clearance and Door Handle Realities

North American patio doors—especially French doors—have chunky hardware. If you are mounting shades on the door itself, you need a low-profile cassette. Motorized cellular shades are excellent here because the motors are hidden entirely inside the slim headrail, preventing the fabric from snagging on the door lever when you walk outside.

Powering High-Reach Transom Motors

Battery vs. Solar-Panel Charging

Hardwiring is great if you are doing a gut renovation, but for the majority of us, battery-powered motors are the reality. For the transom window, climbing a 12-foot ladder to recharge a lithium-ion battery pack every few months gets old fast. I highly recommend pairing the transom motor with a slim solar panel. Most smart shade brands sell a panel that mounts directly against the glass using adhesive strips.

For the patio door itself, a standard rechargeable battery motor is fine since it is easily accessible from the floor. Just keep an eye on the noise levels. Premium motors operate around 38 to 42 decibels, which is a quiet hum. Cheaper generic motors can hit 50 decibels, which sounds like a small power drill winding up.

Smart Ecosystem Integration

Tying Transoms to Temperature Sensors

Connecting your shades to a Zigbee hub or Wi-Fi network unlocks the real value of motorized treatments. I use an external temperature sensor placed near the window. When the sensor detects the room hitting 76 degrees, it triggers a routine that drops the transom shade to 80 percent closure.

This cuts the UV rays fading my hardwood floors without making the room pitch black. If you use Alexa or Google Home, you can easily set up a sunrise routine that slowly opens the transom shade to wake up the house, while keeping the lower patio door shades closed for privacy while you walk around in your pajamas.

Living with Motorized Transom Shades: Day-to-Day Reality

I've had my split motorized setup running for over eight months now. The sunrise routine is genuinely the best smart home automation I've set up—waking up to natural light pouring in from the transom is fantastic. But it hasn't been completely flawless.

I didn't account for the winter sun angle. Because my transom faces south, the sun drops lower in the sky during December, bypassing my solar panel entirely for a few weeks. I actually had to manually charge the transom shade right after Thanksgiving, which meant dragging the ladder out anyway.

Also, the motor on my upper unit makes a faint hum. It is barely audible during the day over the TV or dishwasher, but it is noticeably loud when the house is dead silent at 6 AM. If you are sensitive to noise, spend the extra money on a heavy-duty, ultra-quiet motor for the high windows.

Frequently Asked Questions

Can I still use the patio door if the power goes out?

Yes. Because most smart shades run on internal lithium-ion batteries rather than your home's electrical grid, they will continue to operate via their physical remote controls even during a power outage. However, voice commands and cloud-based routines will be offline until your Wi-Fi router powers back up.

How long do batteries last in motorized transom shades?

For a standard roller shade raised and lowered once a day, expect 6 to 9 months of battery life. If you add a solar charging panel to the transom glass, you may never need to manually charge it, provided the window gets at least 2 hours of direct sunlight daily.

Do I need a smart hub for these window treatments?

It depends on the motor protocol. Wi-Fi motors connect directly to your router but drain batteries faster. Zigbee, Z-Wave, and Thread motors require a compatible hub or border router, but they respond faster and preserve battery life significantly better.
