Perfect Privacy: Automating Day Night Top Down Bottom Up Shades

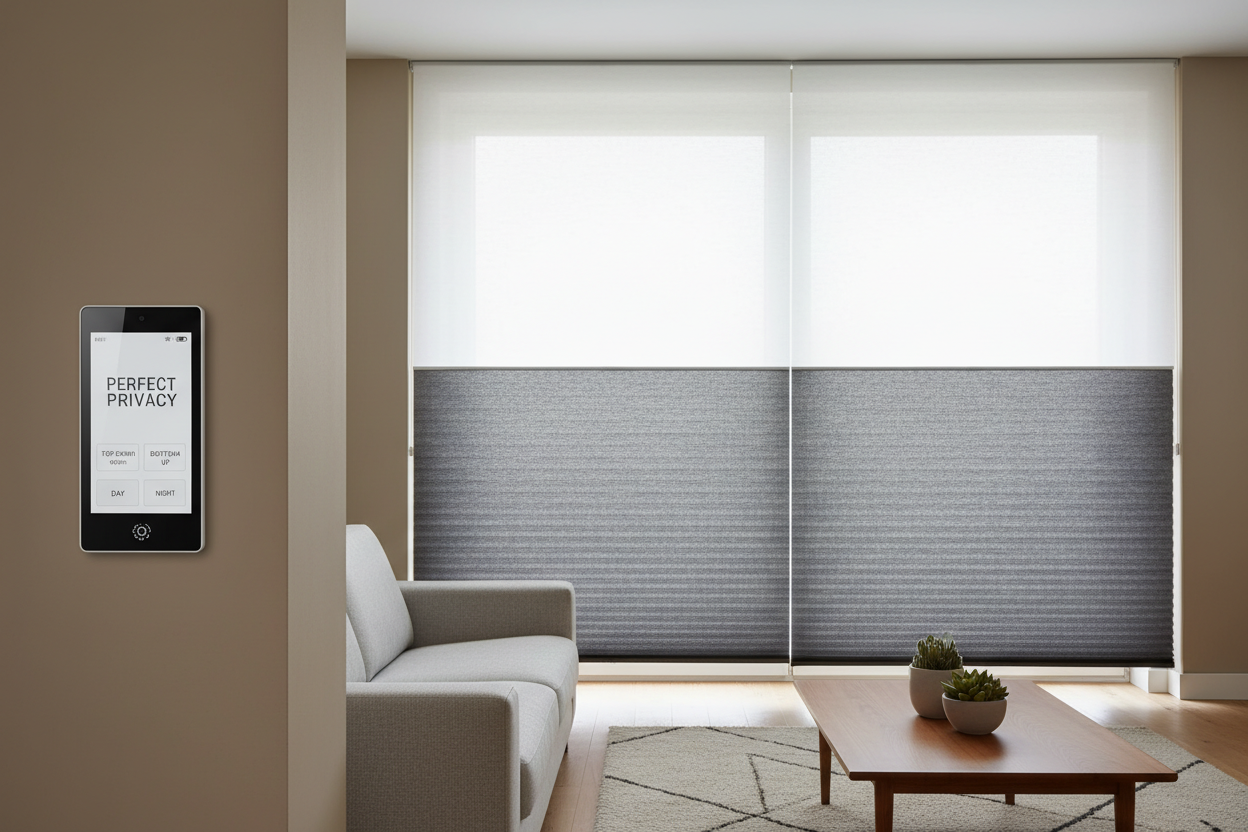

Imagine this scenario: It’s a Saturday morning. You want natural light flooding the room, but you aren't quite ready to expose your bed-head to the neighbors walking their dogs on the sidewalk. Usually, this means manually adjusting cords to find that sweet spot of privacy and sunlight. With day night top down bottom up shades, you simply mutter a voice command, and the shades adjust to cover just the bottom half of the window while leaving the top open to the sky.

This isn't just about luxury; it's about granular control over your environment. These dual-fabric systems—combining a sheer and a blackout layer—are complex to automate due to their moving middle rail, but the payoff in thermal efficiency and privacy is unmatched. Let's dive into the tech stack required to make this work.

Key Specs at a Glance

Before buying, understand that automating TDBU (Top-Down Bottom-Up) shades requires more torque and complex gearing than standard rollers. Here is the technical breakdown.

The Mechanics of Automation

Unlike a standard roller shade which simply goes up and down, day night cellular shades top down bottom up configurations are mechanically dense. They utilize a floating middle rail. To automate this, the headrail houses either two distinct motors or a sophisticated clutch system.

One motor controls the lift of the bottom rail (blackout), while the second controls the drop of the middle rail (sheer). When integrating this into a smart home, ensure your interface (app or remote) supports "multi-channel" control. You aren't just sending an "Open" signal; you are sending coordinates for two different fabric positions.

Power Options: Battery vs. Hardwired

Rechargeable Li-ion Wands

Most retrofit-friendly options use internal lithium-ion batteries. Expect to charge these every 4 to 6 months depending on usage. Look for USB-C charging ports on the headrail. Micro-USB is becoming obsolete and can be fragile.

12V/24V Hardwired

If you are renovating, run low-voltage wire to the window jambs. Hardwired motors offer higher torque—crucial for wider windows where the dual fabric weight adds up—and instant response times without the "wake up" latency found in battery units.

Smart Integrations and Ecosystems

The gateway is the brain of the operation. If you use Lutron, Somfy, or Eve MotionBlinds, you are looking at different protocols.

• Matter over Thread: The future-proof choice. Allows the shades to talk directly to Apple HomeKit, Google Home, and Alexa without a proprietary bridge, provided you have a Border Router (like a HomePod mini or Nest Hub).
• Zigbee: highly reliable but usually requires a specific hub (like the Ikea Dirigera or a specialized bond bridge) to expose the device to your voice assistants.

Living with day night top down bottom up shades: Day-to-Day Reality

I’ve had a motorized TDBU setup in my master bedroom for over a year now, and there are sensory details the spec sheets don't mention. The first thing you notice is the sound profile. Because there are often two mechanisms working, the "whir" pitch changes depending on whether you are dropping the sheer or lifting the blackout. It’s not loud, but in a dead-silent room at 6:00 AM, a 45dB motor sounds significantly louder than it does at noon.

Another nuance is the "light leak" gap. On manual shades, you can physically tug the rails tight against each other. With motorized versions, there is sometimes a 2mm to 4mm gap between the floating rail and the top headrail to prevent motor strain. It’s negligible for privacy, but if you are a light sleeper sensitive to a sliver of streetlamp glow, you might notice that the "blackout" mode has a tiny halo at the very top. I solved this by installing a simple valance, but it’s a quirk of the automation hardware you should expect.

Conclusion

Upgrading to motorized day night top down bottom up shades is a significant investment, but it solves the specific problem of balancing privacy with natural light better than any other window treatment. The ability to automate the "sheer" layer to catch the morning sun while keeping the street view blocked is a genuine lifestyle upgrade.

Frequently Asked Questions

How long do the batteries actually last?

On a standard window (approx. 30x60 inches) with one up/down cycle per day, expect 4 to 6 months. Larger windows require more torque, draining the battery faster.

Can I move them manually if the power goes out?

Generally, no. Most motorized TDBU shades lock the gears to hold the tension. Forcing them manually can strip the internal gears. If you live in an area with frequent outages, consider a battery backup for the motor.

Do I need a hub for these shades?

It depends on the connectivity. WiFi motors connect directly but consume more battery. Zigbee and Z-Wave motors require a compatible hub or bridge to interface with Alexa or Google Home.
