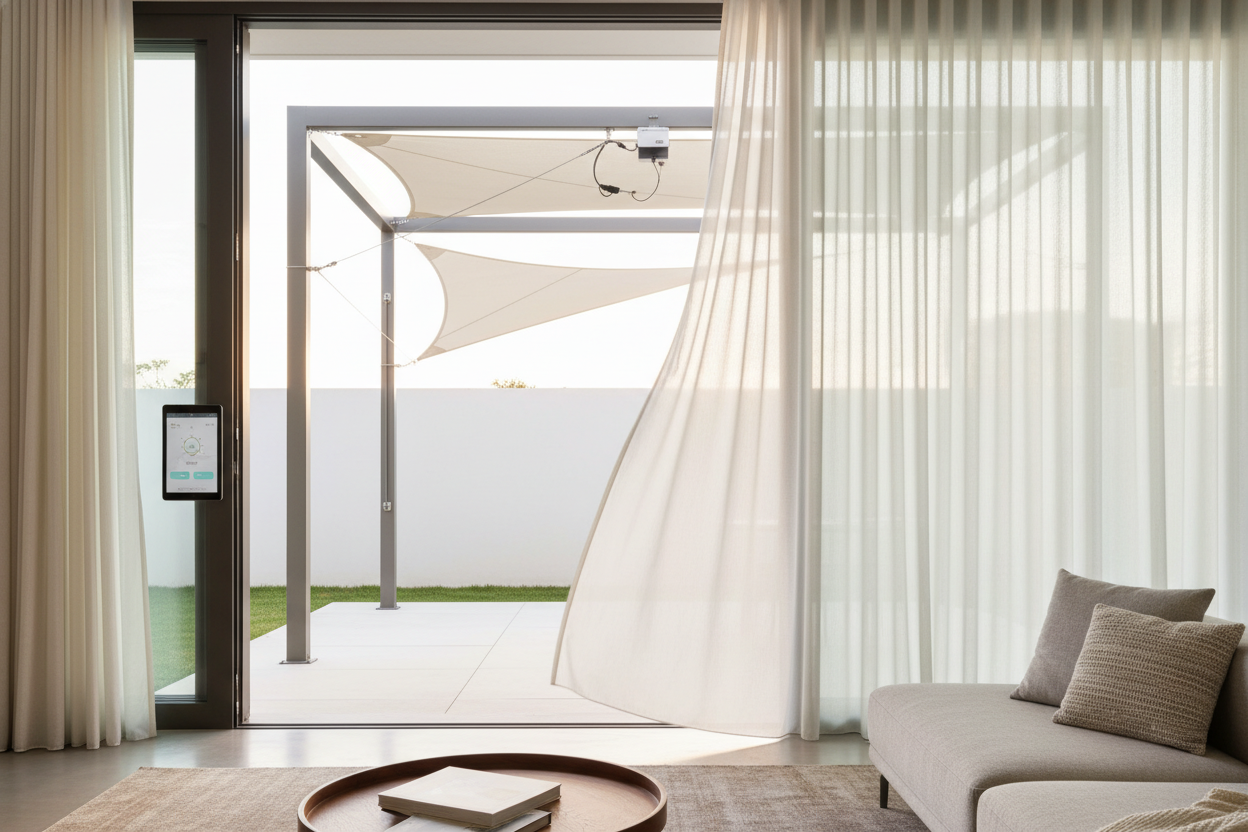

Pergola and Shade Sail Combos: My Smart Patio Upgrade

I was sitting on my patio last July, trying to read on my iPad. It was 3 PM, and the sun shifted just enough to blast straight through the wooden slats of my patio structure. I had to squint, shift my chair three times, and eventually gave up and went inside. That afternoon, I decided to fix the problem by building a motorized pergola and shade sail hybrid. After installing over 50 automated window treatments across my own house and clients' properties, moving the automation outdoors felt like the next logical step.

• Combine traditional wooden slats with motorized fabric for app-controlled shade.
• Use 12V or 24V outdoor-rated motors to keep operating noise under 40dB.
• Integrate Zigbee or Z-Wave relays to link your canopy to HomeKit, Alexa, or Home Assistant.
• Connect a smart weather station to automatically retract the canopy during high winds.

Why Combine a Pergola and Shade Sail?

A traditional open-slat wood pergola looks fantastic, but it only provides partial shade. Depending on the time of day and the angle of the sun, you might find yourself baking in the heat. I realized that a pergola with shade sail capabilities offers the best of both worlds. You keep the architectural beauty of the heavy timber beams but gain the flexibility of a solid, UV-blocking canopy on demand.

When you install a sail cloth pergola setup, you aren't permanently blocking out the sky. You can leave the fabric retracted at night to see the stars, or deploy it fully at noon when the UV index spikes. Standard patio umbrellas are clunky, and fixed metal roofs make the space too dark. Adding a retractable, motorized sail cloth for pergola setups gives you dynamic control. I usually set mine to block the harsh afternoon glare so I can host a barbecue without my guests sweating through their shirts.

Choosing the Right Sail Shade for Pergola Structures

When picking a sail shade for pergola frames, the material dictates how well the automation works. You generally choose between high-density polyethylene (HDPE) and waterproof polyester or PVC. For a motorized setup, I always recommend HDPE. It breathes, allowing hot air to escape upward, and it doesn't pool water if you accidentally leave it deployed during a sudden rainstorm. Waterproof sails for pergola setups are heavy and require a significant pitch to shed water, which puts massive strain on motorized tracks and pulleys.

To get a sun shade sail pergola running smoothly, you need fabric that folds or rolls predictably. I use a Roman-style canopy design where the fabric is suspended in panels. If you try to pull a massive, single-piece triangle sail across a wire, it tends to sag and bind. I order custom rectangular panels with grommets spaced exactly 12 inches apart. This ensures the fabric stacks neatly when retracted. You want a fabric weight around 200 to 220 GSM. It is heavy enough to block 95% of UV rays but light enough that a standard 24V tubular motor won't burn out trying to pull it across a 15-foot span.

Automating Your Pergola Shade Sail

Retrofitting a shade sail on pergola rafters requires some specific hardware. I use parallel stainless steel wire cables tensioned across the top of the structure. The fabric attaches to these cables using small carabiners or sliding pulleys. To automate the movement, I mount an IP65-rated outdoor tubular motor at one end.

To link the motor to my network, I wire an outdoor-rated Z-Wave relay switch into the motor's power line. Pairing it is simple: you usually just hold the physical inclusion button on the relay for 5 seconds until the LED flashes green, then scan for it in your smart home hub. Once connected, your sail pergola becomes a fully recognized smart device.

You can use voice commands like, 'Alexa, open the patio canopy,' and the motor quietly whirs to life. I specifically look for motors that operate under 40dB so they don't interrupt conversations. If you are running a battery-powered RF motor instead of a hardwired setup, expect the battery to last about 6 to 8 months if you cycle the shade twice a day. I highly recommend adding a small 5W solar panel to the top of the pergola beam to trickle-charge the battery, so you never have to climb a ladder to plug it in.

Layering Smart Tech With Your Sail Pergola

The real magic happens when you build smart home scenes for your pergola with sun sail. I use Home Assistant, but SmartThings or Apple HomeKit work just as well. I have a scene called 'Afternoon Chill.' At 2:30 PM, if the outdoor temperature sensor reads above 75 degrees, the motor automatically deploys the canopy to 100%. It blocks the western sun right as it starts hitting the patio furniture.

I also tie the motor into my rooftop weather station. Wind is the biggest enemy of outdoor fabric. If my anemometer detects wind gusts exceeding 20 mph for more than three minutes, it triggers an emergency retraction. The motor pulls the fabric safely against the house before a storm can rip the grommets out. I wrote a whole guide on weatherproofing my smart patio where I break down the exact automation logic for wind sensors. It saves me the anxiety of rushing home from work when I see dark clouds rolling in.

Mounting a Shade Sail Over Pergola Rafters

The physical installation of a shade sail over pergola beams takes a solid afternoon. You need heavy-duty anchor points. I drill directly into the 6x6 wooden posts and use stainless steel pad eyes secured with 3-inch lag screws. If you are running the wire cables for a motorized track, you must use turnbuckles at one end to keep the guide wires incredibly tight. If the wires sag, your pulleys will catch, and the motor will stall.

If you decide to skip the motor and just want a fixed sail for pergola shade, you still need that tension. I highly recommend reading up on getting perfect tension every time, as a loose sail will flap violently in the wind and eventually tear. For the motorized track, I spray the steel cables with a dry PTFE lubricant once a season. It stops the sliding carabiners from squeaking and keeps the motor load low.

I will be honest about one major headache I ran into with my own patio setup. Because my router is at the front of the house, the Z-Wave relay on the patio kept dropping off the mesh network. I would ask Siri to close the shade, and nothing would happen. I had to install a dedicated outdoor Z-Wave repeater plug on my back porch to stabilize the signal. Also, in late autumn, dry leaves sometimes fall onto the fabric. If I don't blow them off before retracting the canopy, they get crunched in the pulley system, causing a terrible grinding noise. It is a minor maintenance task, but something to keep in mind.

Final Thoughts on the Sun Sail Pergola Setup

Upgrading an existing wooden structure with a sun sail pergola kit is one of the highest ROI projects you can tackle for your backyard. Instead of a static structure that only provides shade when the sun is directly overhead, you get a dynamic, app-controlled pergola shade sail that adapts to your daily routine. By layering smart relays, weather station triggers, and quiet tubular motors, you transform a basic patio into a truly responsive outdoor living space.

Can I leave my motorized pergola sail out in the rain?

If you use HDPE fabric, light rain will pass through. However, you should retract it during heavy storms to prevent the weight of wet fabric from straining the motor and guide wires.

How loud is the smart motor?

Most high-quality 24V outdoor tubular motors operate at around 35dB to 40dB. It sounds like a quiet hum and won't disrupt your outdoor dinners.

Do I need an electrician to install this?

If you use a battery-powered RF motor with a solar trickle charger, no hardwiring is required. If you opt for a 110V hardwired motor and relay, you should hire a professional to run an outdoor-rated conduit.
