Privacy Without Gloom: Smart Cellular Shade Top Down Bottom Up Guide

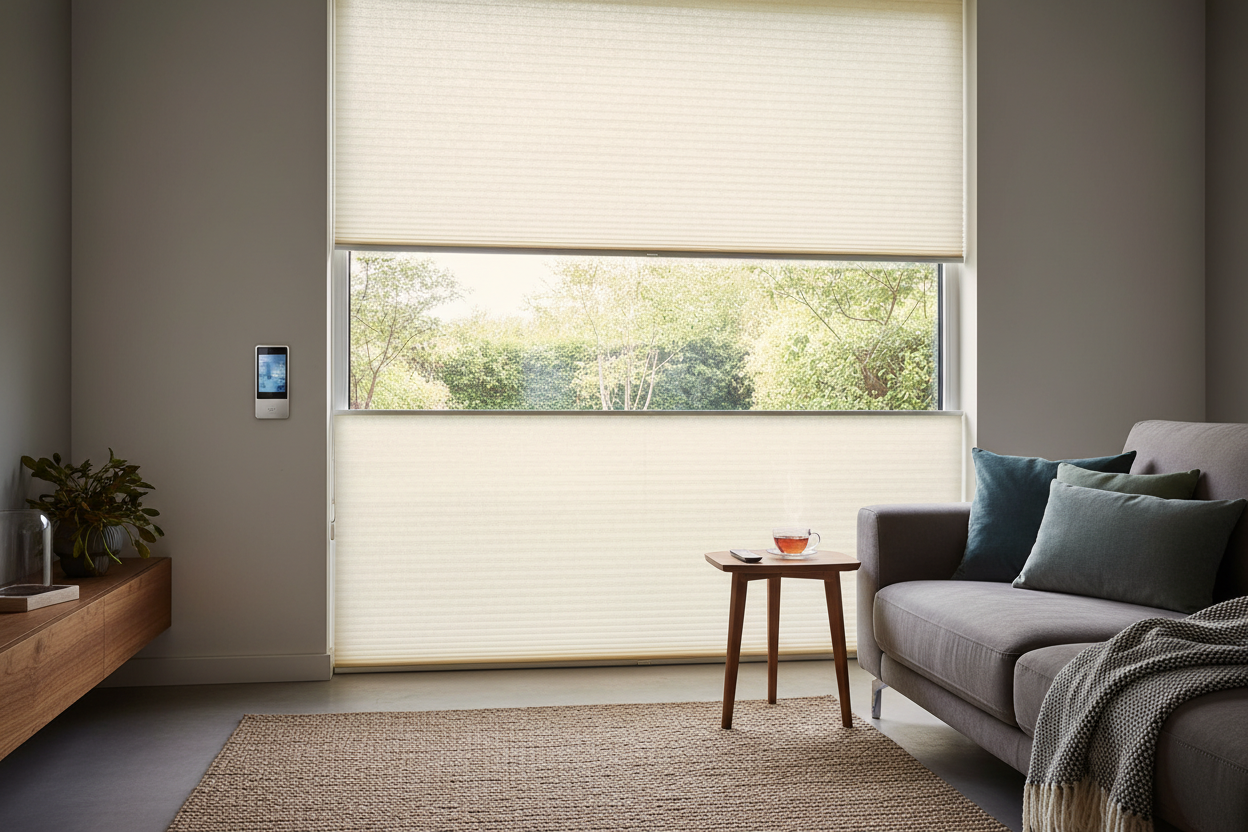

Imagine it’s Saturday morning. You’re lounging with coffee, wanting natural light to flood the room, but you don’t want the neighbors across the street watching you in your pajamas. You say, "Alexa, activate privacy mode." Instantly, the top half of your window clears to show the sky, while the bottom remains covered. This is the specific magic of the **cellular shade top down bottom up**. It solves the age-old trade-off between natural light and personal privacy, all while adding a layer of smart insulation to your glass.

Key Specs at a Glance

• Motor Configuration: Dual-motor (often required for independent rail control) or single-motor with clutch systems.
• Connectivity: Zigbee 3.0, Z-Wave, Thread (Matter), or RF (requires bridges like Bond).
• Power Source: Rechargeable Li-ion battery wands (retrofit) or 12V/24V Hardwired (new build).
• Noise Level: Average 35dB - 45dB (comparable to a quiet library hum).

Understanding the "Up Down" Mechanism

Unlike standard motorized rollers, up and down cellular shades are mechanically complex. They utilize a "floating" middle rail. To make this smart, the system needs to control both the bottom rail (to lift the shade entirely) and the middle rail (to lower the top section).

When shopping for honeycomb shades top down bottom up, you will encounter two main motorization types:

1. The Dual-Motor Setup

High-end honeycomb blinds top down systems often use two distinct motors inside the headrail. One motor dictates the lift of the bottom rail, while the other manages the drop of the middle rail. This offers the most precision but consumes more battery power and adds weight to the headrail.

2. Single Motor with Solenoid/Clutch

Some newer up down honeycomb shades use a single motor that engages different spools via a clutch. While more energy-efficient, these can sometimes be noisier during the "switching" phase when the motor changes from lifting the bottom to lowering the top.

Powering Your Shades: Battery vs. Hardwired

If you are retrofitting bottom up honeycomb shades into an existing home, you will likely rely on rechargeable battery wands.

• Battery Wands: usually hide behind the headrail. For TDBU (Top Down Bottom Up) units, battery drain is slightly higher because you are often adjusting two rails to find that perfect "sweet spot" of light. Expect to recharge every 4-6 months depending on usage.
• Hardwired (Low Voltage): If you have the luxury of open walls, running 18/2 wire to the window frame is superior. It eliminates the bulky battery pack, which is crucial for honeycomb top down bottom up blinds where the headrail is already crowded with mechanical components.

Smart Integration and App Features

The true value of top down cellular shade technology unlocks when you dive into app schedules. Most proprietary apps (like PowerView or Somfy) allow for "Scene" creation.

Sun-Tracking: Advanced setups using light sensors can adjust your top down bottom up honeycomb shades throughout the day. As the sun hits the window, the shade can rise from the bottom to block direct glare while the top lowers to keep the room illuminated with ambient light.

Living with cellular shade top down bottom up: Day-to-Day Reality

I’ve had motorized up down cellular shades installed in my street-facing office for about a year, and there are sensory details the spec sheets don't mention. The first thing I noticed was the "docking" sound. When you close the shade completely, the middle rail has to snap flush with the headrail. On my unit, there is a distinct, mechanical click-whir as the magnets or clips engage to ensure there's no light gap at the top. It’s not loud, but in a dead-silent room, you hear it.

Another nuance is the "cable tuck." Since I went with a battery-powered retrofit, hiding the charging cable behind the headrail of a TDBU shade is tricky because there are moving strings everywhere. If you don't tuck that cable perfectly, it can snag on the middle rail as it lowers. I learned the hard way to use extra adhesive clips to keep the power wire strictly out of the path of the lifting cords.

Conclusion

Investing in honeycomb blinds bottom up technology is more than just a flex; it’s a functional upgrade for privacy-conscious homeowners. Whether you choose a Zigbee-controlled retrofit or a fully hardwired Lutron system, the ability to manipulate light from both ends of the window changes how your room feels. Just be mindful of the battery requirements for these dual-action drivers.

Frequently Asked Questions

Can I manually operate smart TDBU shades during a power outage?

Generally, no. Most motorized honeycomb top down bottom up blinds do not have a manual pull cord for safety and mechanical reasons. If the battery dies or power goes out, the shade stays in its last position.

Do I need a hub for these shades?

It depends on the protocol. Bluetooth shades work directly with your phone but have limited range. Zigbee or Z-Wave shades usually require a gateway (like a SmartThings hub, Bond Bridge, or proprietary bridge) to connect with Alexa or Google Home.

How is the insulation on TDBU models compared to standard cellular shades?

The insulation (R-value) is identical when the shade is fully closed. However, because the middle rail creates a small gap between the rail and the fabric stack when slightly open, you might lose a tiny fraction of thermal efficiency compared to a fixed-rail standard shade.
