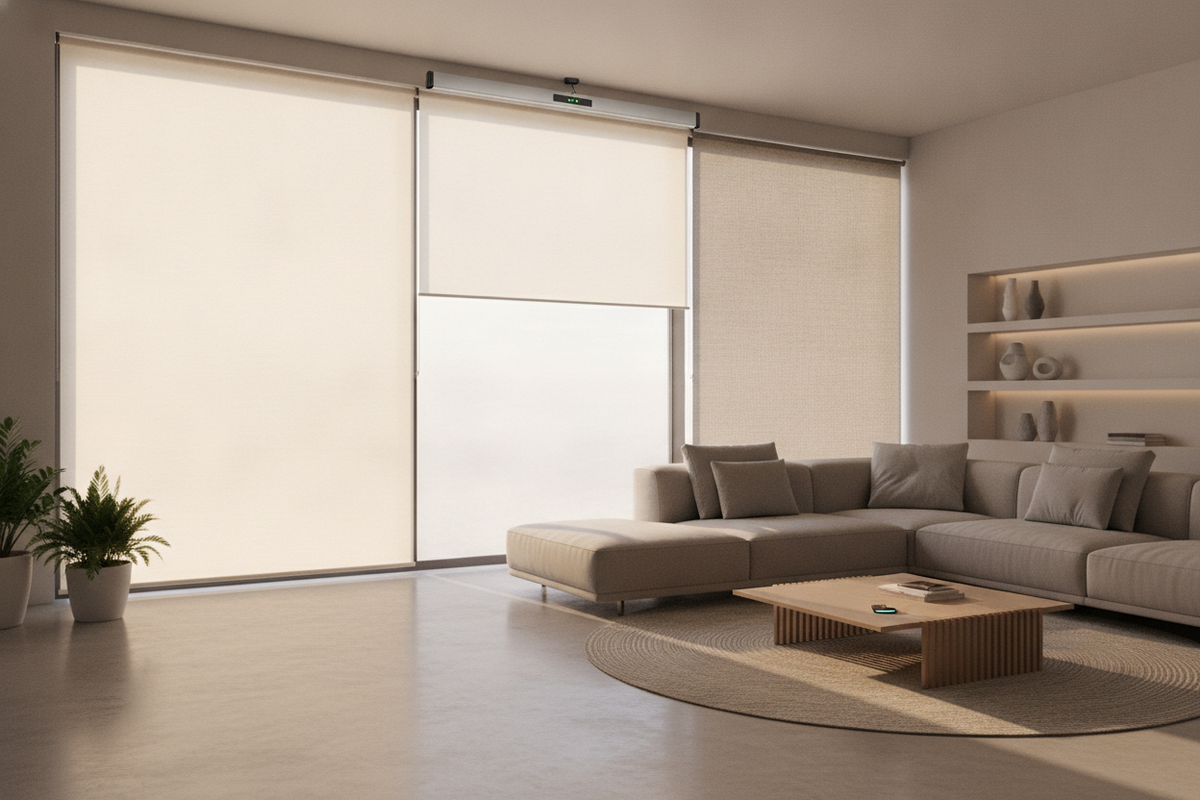

Roller Shade Kits for DIY: Hardware Mechanics, Fabric Assembly, and Smart Motorization

Introduction to Roller Shade Kits for DIY Projects

Custom window treatments often carry substantial price premiums, yet standard off-the-shelf shades rarely fit non-standard window frames with precision. Modular roller shade kits for diy builders bridge this gap by supplying commercial-grade mechanical components while leaving fabric selection and exact sizing in your hands. A foundational kit typically includes an extruded aluminum roller tube, heavy-duty mounting brackets, an idler end plug, a drive mechanism, and bottom hem bar components.

By utilizing standardized diy roller shade hardware, makers can tailor window coverings to distinct architectural dimensions, select designer textiles, and choose between manual operation or automated smart home integration. For an overview of home styling techniques, exploring a comprehensive diy roller shade guide helps establish design goals before beginning mechanical assembly.

Core Hardware Anatomy: Selecting the Right Tube and Mounting System

The structural backbone of any roller blind kit diy setup is its roller tube and bracket assembly. Selecting components engineered for your window width and material weight ensures smooth long-term operation without mechanical binding.

Tube Diameters and Span Support

Roller tubes are typically extruded from lightweight aluminum with internal ribs designed to accept drive adapters, spring mechanisms, or tubular motors. The primary mechanical consideration is structural deflection resistance. When a wide window is fitted with an undersized tube, the center of the tube bows downward under the tension and weight of the fabric. This sagging causes the fabric to gather toward the middle, leading to wrinkles and uneven rolling.

As window spans increase, larger diameter tubes provide the torsional rigidity necessary to keep the rolling surface flat across the entire span. Internal profiling also dictates which clutch adapters or motor drive crowns slide securely into the cylinder.

Bracket Geometry and Light Clearance

Mounting brackets must support the full operational load while accommodating the desired mounting orientation: inside mount within the window casing or outside mount on the surrounding trim or wall face. Inside mounts deliver a flush architectural look but introduce inherent light gaps at the sides where the clutch and idler bracket require operational clearance. Outside mounts allow the fabric to overlap the window frame, substantially reducing light leakage along the perimeter.

Standard diy roller shade hardware features slotted bracket openings that simplify leveling adjustments during installation, ensuring the roller sits horizontal even if the window casing is slightly out of square.

Fabric Selection and Attachment Engineering

Constructing a high-performing diy fabric roller shade kit requires meticulous material preparation. Unlike woven drapery, roller shade textiles must maintain absolute dimensional stability to avoid fraying or skewing during repetitive cycling.

Dense weave textiles, solar screen materials, and layered blackout fabrics each present distinct physical properties. Testing your planned material with a dedicated fabric roller product swatch allows you to verify light transmission, opacity, and drape stiffness before committing to full cuts.

Two primary methods secure textiles to aluminum tubes in a fabric roller shade kit:

• High-Tack Double-Sided Adhesive Tape: Industrial adhesive film applied directly to the bare aluminum tube creates a continuous bond. The key is ensuring the top fabric edge is aligned strictly parallel to the tube axis.
• Spline and Channel Systems: Certain tubes feature an integrated longitudinal groove. A flexible plastic spline is sewn or heat-bonded to the top of the fabric and slid into the groove, providing a mechanical anchor that resists peeling over time.

Drive Mechanism Options: Manual Control vs. Motorized Integration

A primary benefit of modular roller shade kits for diy projects is the freedom to select or change drive systems without discarding the tube and mounting brackets.

Continuous Loop Clutches and Cordless Springs

Traditional manual kits employ a mechanical clutch driven by a continuous beaded chain. The clutch mechanism utilizes internal wrap springs that lock the tube in place when at rest, preventing gravity from unwinding the shade. Pulling the control loop releases the internal brake to raise or lower the fabric smoothly.

Cordless spring-roller assemblies store rotational tension inside the tube. Calibrating the internal spring tension allows users to raise or lower the bottom rail by hand, where internal stop-locks or constant-tension dampening systems maintain the desired height.

Tubular Smart Motor Upgrades

For modern smart home environments, manual drive clutches can be replaced with compact tubular DC motors that slide directly inside the aluminum tube. These motors house internal gearboxes, electronic travel limit sensors, and wireless radio receivers.

Integrating smart motors allows shades to be managed via handheld remotes, automated scheduling apps, or voice controls. Upgrading standard kits with motorized options is explored further in our specialized roller shade kits guide, which covers control protocols and power options.

Step-by-Step Assembly and Calibration Workflow

Executing a reliable build requires following a structured assembly sequence to ensure precise alignment and balance across the entire shade assembly:

1. Measure the Window Opening: Measure the top, middle, and bottom widths of the window casing. Use the narrowest measurement for inside mounts, subtracting manufacturer hardware deductions for clutch and idler clearance.
2. Cut the Aluminum Tube: Trim the roller tube using a fine-tooth miter saw or pipe cutter. Ensure the cut is clean, deburred, and perfectly perpendicular to the tube length.
3. Square the Fabric: Cut the shade fabric so all four corners form true ninety-degree angles. Any deviation from square will result in uneven tracking.
4. Attach the Weighted Hem Bar: Insert or seal a rigid bottom bar into the lower hem pocket. This weight provides uniform vertical tension that keeps the textile taut. Selecting a tailored material sample, such as a specialized fabric roller product, helps determine the appropriate hem pocket construction.
5. Mount Fabric to the Tube: Align the top fabric edge with the guide line or spline channel on the tube, ensuring no horizontal slant.
6. Install Brackets and Test: Secure the mounting brackets, snap the tube into position, and perform multiple full roll cycles to verify smooth rotation.

Troubleshooting Common DIY Roller Shade Alignment Issues

Even carefully assembled diy roller shade hardware can occasionally exhibit operational quirks. Applying methodical diagnostics resolves most tracking and tension issues quickly.

Telescoping Fabric: If the fabric rolls to one side and rubs against the bracket, the shade is telescoping. This occurs when the roller tube is not level, the fabric was not cut square, or the fabric was attached with a slight angular bias. To correct minor telescoping, apply small strips of masking tape directly onto the roller tube on the side that unrolls too quickly. This shim increases the effective diameter on that end, drawing the fabric back toward center during roll-up.

Clutch Binding: Excessive resistance when operating a chain drive usually indicates that mounting brackets are installed too tightly against the idler pin, compressing the tube horizontally. Loosen one bracket slightly to restore proper end clearance.

Motor Travel Drift: For motorized builds, reset upper and lower limit positions using the setup button on your controller if the hem bar stops short of the sill or rolls past the top bracket.
