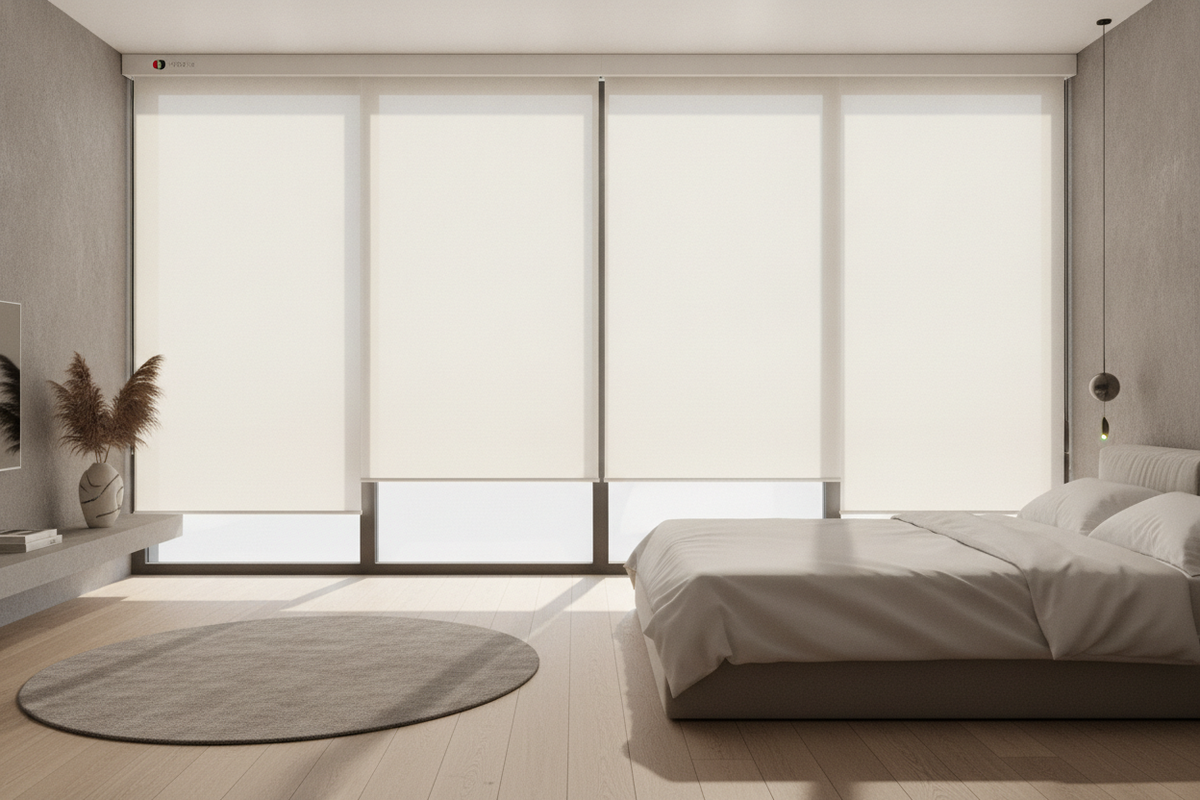

Roller Shades with Cassette: Profiles, Light Control, and Smart Motor Integration

Anatomy and Purpose of a Roller Shade Cassette

When selecting modern window coverings, the top enclosure plays a central role in both architectural styling and daily operational reliability. A shade cassette is an integrated top headrail housing that fully or partially encloses the fabric roll, mounting brackets, idler mechanisms, and drive systems. Understanding the structural differences between exposed rollers, basic fascias, and fully boxed cassettes helps homeowners select the ideal hardware for their living areas.

What Defines a Shade Cassette Enclosure

Unlike open roller systems where the wound fabric roll remains visible from all angles, a roller shades cassette provides a structured aluminum or composite box that encloses the mechanical core. The shade rolls and unrolls through a precise bottom slot, presenting a uniform geometric profile regardless of how high or low the fabric is drawn. This structural perimeter establishes a finished architectural line at the top of the window frame, bridging the visual transition between the wall and the window glazing.

Exposed Rollers vs. Fascias vs. Fully Enclosed Cassettes

Exposed rollers showcase minimal mechanical brackets and are often chosen for purely utilitarian or industrial aesthetics. However, an exposed roll leaves the fabric cylinder, motor heads, and wiring connections visible. A fascia panel adds a front-facing shield to obscure the roll from standard viewing heights, but leaves the top, back, and underside open. In contrast, a fully enclosed cassette wraps the assembly on all sides, securing the roll inside a self-contained unit. For a comprehensive overview of how these designs function across different rooms, review our cassette roller shades guide.

Protection Against Dust, Fabric Wear, and Environmental Exposure

The practical advantage of a closed top enclosure extends beyond interior design. Over time, open rolls collect settling household dust, ambient grease in kitchen-adjacent zones, and direct sunlight along the top fabric edge when rolled up. Dust accumulation on exposed rolls can lead to discoloration or uneven fabric tracking during operation. A cassette acts as a defensive barrier, preserving the cleanliness of the rolled textile and protecting critical mechanical components from airborne debris.

Cassette Profiles, Geometries, and Visual Finishes

Modern roller shades with cassette enclosures are available in diverse form factors designed to complement varying trim styles, from historic woodwork to crisp, contemporary reveals.

Curved vs. Square Profile Geometries

Cassette housings generally follow two primary design languages: curved and square profiles. Curved profiles feature a rounded, aerodynamic face that softens hard window frame angles and integrates naturally into transitional, traditional, or fluid architectural layouts. Specialized setups, such as a roller shades cassette product configured with dual rollers, frequently employ curved enclosures to house two independent rolls within a soft, compact footprint. Conversely, square cassettes feature crisp ninety-degree edges that align seamlessly with modern minimalist jambs, deep drywall returns, and structural steel mullions.

Fabric-Wrapped vs. Painted and Anodized Aluminum Housings

The visual face of the cassette can be tailored to match the shade textile or the surrounding window trim. Aluminum housings can be finished in standard architectural powder coats, such as matte white, bronze, slate grey, and anodized black. Alternatively, fabric-wrapped cassettes feature a precision insert of the matching shade material across the front curve or face, creating unbroken tonal harmony from the top of the headrail down to the bottom weight bar.

Matching Window Casings and Minimalist Trim

Selecting the right cassette finish depends on whether the shade is intended to blend into the trim or create architectural contrast. Matching the cassette color to the window casing creates a clean, built-in appearance where the hardware visually recedes into the frame. Selecting a contrasting tone can accentuate expansive glass openings and frame expansive outdoor views.

Light Management and Fabric Roll Dynamics

Achieving effective daylight control requires addressing both the main surface of the shade and the peripheral edges where light tends to leak.

Eliminating Top Light Gaps and Halos

With traditional open roller shades, a noticeable gap exists between the top of the fabric roll and the window header. Sunlight strikes the top curve of the roll, casting a bright upward halo onto the ceiling and upper frame. A cassette enclosure seals off this top perimeter, capturing the fabric within the housing and significantly reducing top light spill. This makes cassette systems particularly advantageous above eye level or in rooms requiring precise illumination control.

Pairing Cassettes with Light-Filtering and Room-Darkening Textiles

The cassette framework pairs effectively with various textile opacities depending on the lighting goals of each space:

• Daylight Diffusion: Pairing a cassette with a curated roller shades collection of light-filtering textiles provides gentle glare reduction and daytime privacy while maintaining an organized headrail profile.
• Room Darkening: Combining an enclosed housing with dense blackout fabrics from a dedicated roller shades collection helps prevent upper halo light, creating an ideal environment for media spaces and bedrooms.

Integrating Side Channels for Complete Edge Light Control

While a cassette resolves top light leakage, side light gaps can still occur between the edges of the shade fabric and the window jambs. For media rooms, nurseries, and dark sleeping environments, cassettes can be combined with vertical side channels and a bottom retention channel. In this complete blackout configuration, the cassette acts as the upper foundation, anchoring the side tracks so the fabric travels inside sealed grooves from top to bottom.

Smart Motorization and Cable Management Architecture

Cassette housings offer unique functional advantages when integrating smart automated motors, battery systems, and low-voltage electrical feeds.

Concealing Tubular Motors, Wires, and Rechargeable Battery Packs

Motorized window treatments rely on tubular drive motors fitted within the roller tube, often accompanied by charging cables, power leads, and manual setup buttons. In an exposed installation, these components require careful visual masking. A cassette enclosure neatly conceals the motor head, internal wire runs, and low-profile battery compartments, preserving a clean aesthetic without requiring external junction covers. To learn more about selecting automated treatments, explore our comprehensive cassette roller shades guide.

Antenna Placement and Wireless Signal Reliability Inside Metal Housings

Because most shade cassettes are constructed from extruded aluminum, understanding wireless transmission dynamics is important when setting up smart automation. Metal enclosures can attenuate high-frequency radio signals if antennas are entirely enclosed within tight metallic shields. Modern automated systems accommodate this by positioning external antenna leads just beneath the bottom opening or utilizing engineered composite end caps that allow radio frequency signals from smart hubs to pass through unimpeded.

Automation Protocols: Scheduling, Voice Hubs, and App Integration

Once motorized cassette shades are mounted, they can be paired with home automation networks. Through compatible gateways, users can configure automated schedules based on local sunrise and sunset times, coordinate multi-room shade movements, or control light levels through voice assistants and mobile applications. The rigid structure of the cassette ensures that the shade repeatedly deploys and retracts along a consistent vertical axis.

Mounting Clearances, Window Depths, and Installation Dynamics

Proper measurement and assessment of the window opening ensure smooth installation and operation.

Inside Mount Depth Requirements and Obstruction Clearance

An inside mount installs the cassette within the window frame depth for a sleek, recessed profile. Because cassette boxes have defined front-to-back dimensions, verifying adequate frame depth is essential. Installers must measure the unobstructed depth of the window jamb, accounting for window cranks, locking levers, security sensors, or interior mullions that might interfere with the cassette body or the vertical drop path of the fabric.

Outside Wall and Ceiling Mount Strategies

When window frame depths are insufficient for a fully recessed fit, outside mounting provides a practical alternative. The cassette is secured directly to the wall surface above the frame or mounted to the ceiling. Outside mounting allows the cassette and fabric to overlap the window casing, which helps minimize side light gaps and bypasses interior window handles.

Bracket Placement, Leveling, and Easy-Click Installation Systems

Most modern cassette systems utilize spring-loaded or slide-in mounting brackets. These brackets are secured to the mounting surface first, allowing the installer to snap the cassette housing into place with minimal effort. Ensuring that all brackets are aligned on a level horizontal plane is critical; an unlevel cassette can cause the fabric roll to telescope unevenly to one side, leading to edge friction against the end caps.

Decision Framework: Selecting the Right Cassette System

Choosing the ideal cassette configuration involves balancing architectural context, light control priorities, and maintenance accessibility.

Evaluating Room Functions and Privacy Priorities

Consider the primary functional demand of each room before finalizing hardware profiles. Living rooms and dining spaces often benefit from compact curved cassettes paired with solar screens, creating soft transitions and preserving external views. In contrast, bedrooms and home theaters benefit from larger square cassettes paired with room-darkening fabrics and side channels to maximize darkness.

Maintenance, Fabric Access, and Long-Term Care

Periodic maintenance keeps motorized and manual cassette shades operating smoothly. The exterior aluminum housing can be wiped down with a microfiber cloth to remove dust. When deep cleaning the fabric or accessing motor programming buttons, select cassette models that feature removable front facings or easy-release brackets that allow the entire roll assembly to be detached safely.

Realistic Design Trade-offs and Window Frame Compatibility

While roller shades with cassette enclosures provide significant aesthetic and functional benefits, they add slight physical bulk compared to minimalist bracket-only systems. In narrow window reveals with shallow frames, an inside-mounted cassette may project slightly past the drywall plane. In our experience with contemporary smart homes, taking precise depth measurements before ordering ensures that the finished cassette aligns cleanly with surrounding architectural details.
