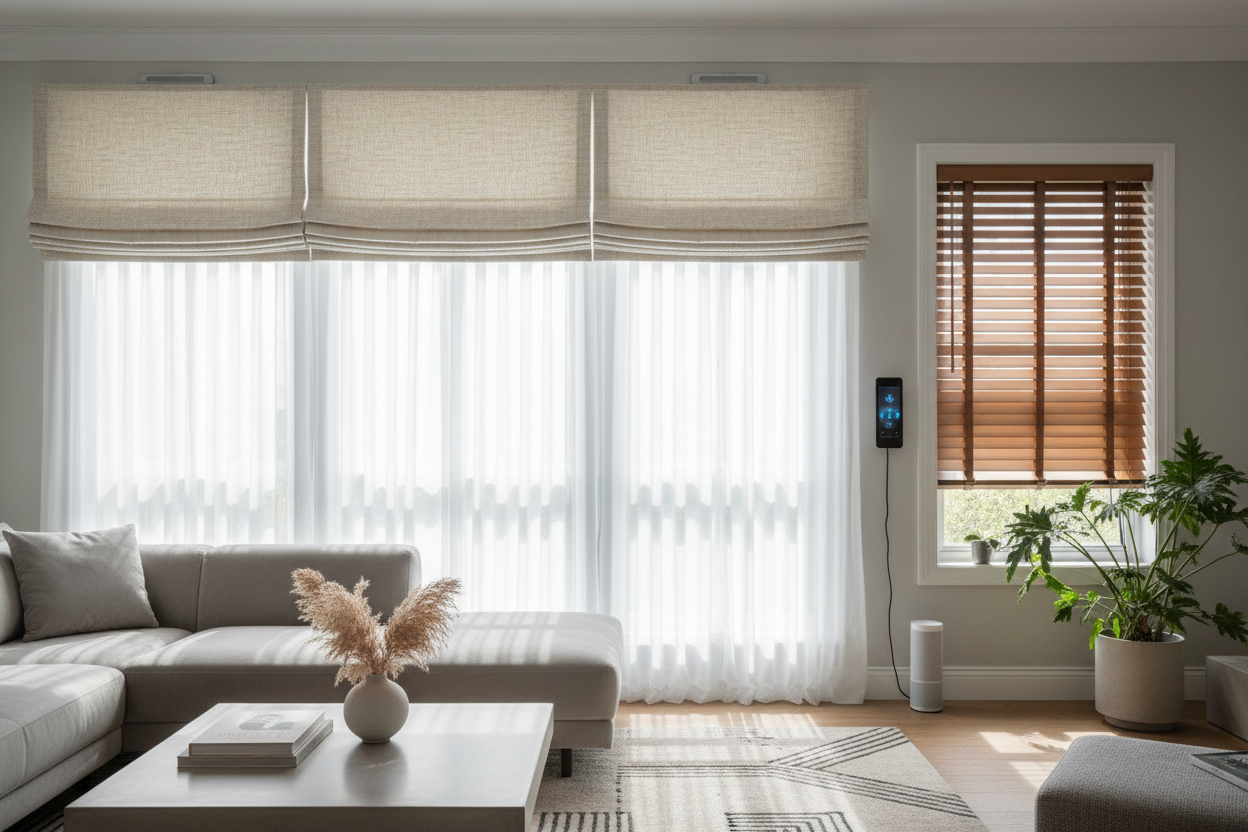

Roman Shade Valance Outside Mount: Smart Setup & Review

I used to rely on my phone alarm, but lately, I've been letting the sun do the heavy lifting. At 6:30 AM, my bedroom shades silently glide up to let in the morning light. If you're looking to achieve a clean, traditional look while sneaking in modern smart home tech, a roman shade valance outside mount is arguably the best way to do it. The valance provides the perfect architectural camouflage for bulky motors and battery wands. By the end of this guide, you'll know exactly how to spec, install, and connect these shades to your smart home ecosystem.

Quick Pre-Install Checklist

• Clearance needed: Ensure at least 2.5 inches of depth behind the valance to fit standard smart roller tubes and battery packs.
• Motor protocol: Zigbee or Thread/Matter motors respond faster than Wi-Fi direct and drain less battery.
• Light gap overlap: Add 2-3 inches to the width on each side of the window trim to prevent light bleed.
• Power source: Choose rechargeable lithium-ion wands if you don't have hardwired power near the top of the window frame.

Mounting the Hardware: Clearance & Concealment

Why Outside Mount is Better for Smart Motors

When retrofitting window treatments, an outside mount roman shade valance offers a massive advantage over inside mounts: space. Smart shade motors, especially those with built-in rechargeable batteries, require thicker headrails. Mounting outside the window frame onto the drywall or trim means you aren't constrained by shallow window depths. Plus, you can extend the fabric past the window edges, effectively eliminating the annoying light bleed that happens when inside-mounted shades don't sit flush against the glass.

Hiding the Tech Behind the Valance

The valance isn't just a decorative fabric flap; it's your tech concealment zone. When setting up an outside mount roman shade valance, the valance hides the roller tube, the motor head, the pairing button, and the charging port. Make sure your brackets project far enough from the wall so the shade fabric doesn't scrape against your window trim as the motor rolls it up and down.

Powering Your Shades: Battery vs. Hardwired

Battery Life in Real Homes

If you're going the DIY route, you're likely choosing battery-powered motors. Most manufacturers claim 'up to 12 months' of battery life. In my experience running a daily sunrise-open and sunset-close routine, realistically expect 6 to 8 months. The heavier the roman shade fabric, the harder the motor works, which drains the battery faster. If you use a heavy blackout lining, plan to recharge twice a year.

Connecting to Alexa, HomeKit, and Matter

Hub Requirements Explained

Most premium retrofit motors run on Zigbee, Z-Wave, or RF, meaning you will need a dedicated bridge or hub to connect them to your Wi-Fi network. While Wi-Fi direct motors exist and save you from buying a hub, they chew through batteries incredibly fast. I strongly recommend looking for Thread-enabled motors that support Matter. They connect directly to your existing Apple TV or Echo device acting as a border router, keeping your local network uncluttered and response times instantaneous.

Living with a Smart Outside Mount Roman Shade with Valance

I installed an outside mount roman shade with valance in my west-facing home office about eight months ago. The primary goal was to block the harsh afternoon sun that cooks my desk around 3 PM. I set up a temperature-based routine via SmartThings: when the room hits 74 degrees, the shade drops.

The automation itself is brilliant, but I learned a hard lesson about acoustics. Because the valance acts like a mini echo chamber against the drywall, the motor hum is noticeably louder than an identical motor I have mounted inside a window frame downstairs. It's not a dealbreaker, but it's a distinct mechanical whir that interrupts a quiet room. Also, when it's time to charge the battery, reaching the USB-C port behind the stiff valance fabric without knocking the headrail out of alignment takes a frustrating amount of dexterity.

Frequently Asked Questions

Can I still open my smart roman shades manually during a power outage?

Battery-powered motors will continue to run their scheduled routines during a power outage as long as they don't rely on a cloud connection to trigger. However, you cannot pull them down manually without risking damage to the internal gears. You must use the local RF remote.

How much extra width do I need for an outside mount?

To maximize privacy and light blocking, add at least 2 to 3 inches to both the left and right sides of your window trim. This ensures the fabric fully covers the glass even if the shade shifts slightly while rolling up.

Do heavy roman shade fabrics require a special motor?

Yes. Roman shades are significantly heavier than standard roller shades because of the structural dowels and folded fabric. Check the motor's weight capacity (usually rated in pounds or Newton-meters) before buying, and opt for a high-torque motor for large windows.
