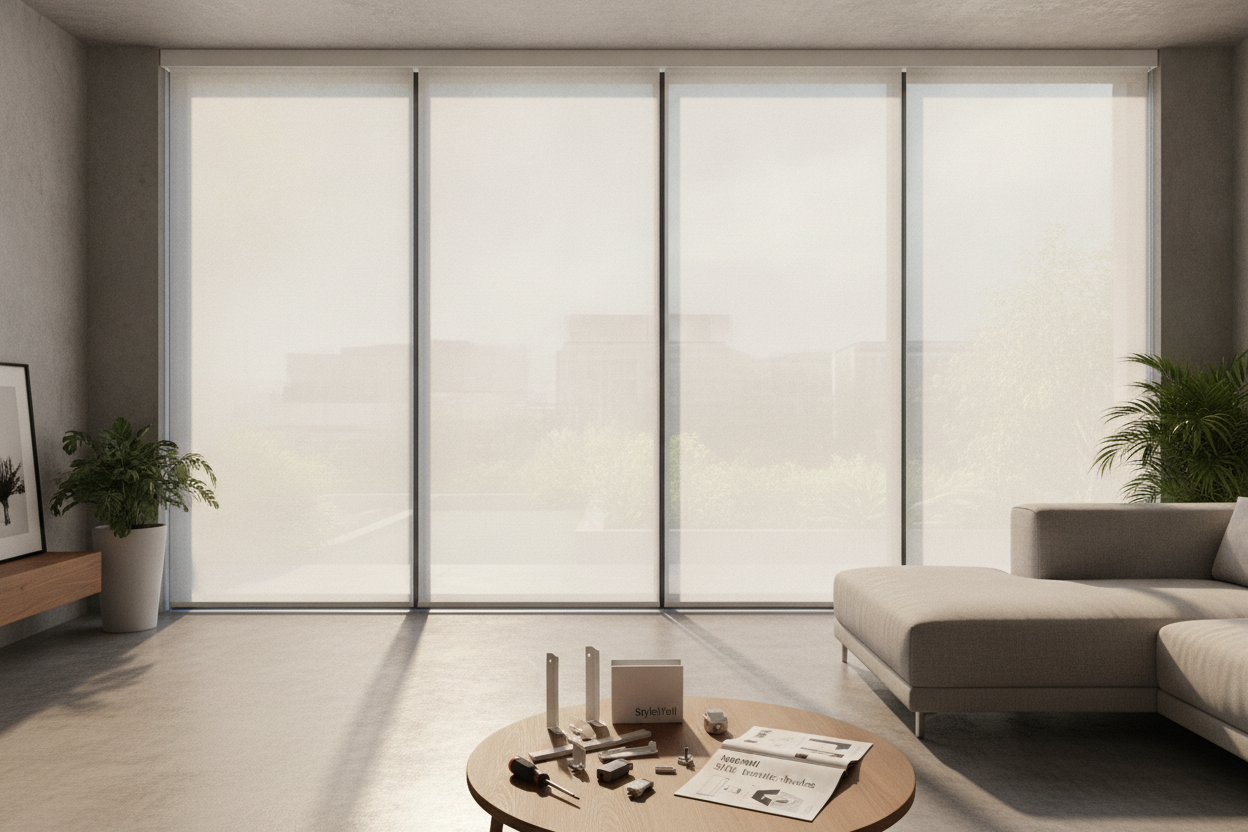

Skip the Vague Manual: How to Install Stylewell Roller Shades

I recently blew my entire home automation budget on the living room. We are talking high-end Lutron motors and custom-milled valances that cost more than my first car. When it came time to finish the guest bedroom, my bank account gave me a hard 'no.' I ended up at the big-box store picking up some budget-friendly window treatments, but quickly realized that learning how to install stylewell roller shades is a test of patience that the included manual fails to prepare you for.

Quick Takeaways

• Throw away the included screws immediately; they are made of soft cheese.
• The 'clutch' side (with the chain) and the 'idle' side (the pin) are not interchangeable.
• Use a laser level if you want the fabric to roll straight without 'telescoping.'
• Inside mounts require at least 2 inches of depth for a flush fit.

Why I Ended Up Installing Budget Shades in My Guest Room

The guest room is where my smart home dreams went to die—or at least, where they became much more realistic. After spending thousands on silent motors for the master suite, I couldn't justify the same for a room that sees a visitor once every three months. I grabbed a few Stylewell units, thinking it would be a twenty-minute job. I was wrong.

Budget shades like these are great for the price, but they don't come with the white-glove support of custom brands. You are the installer, the tech support, and the person who has to explain to your spouse why there are three extra holes in the window casing. The goal here is to get them up once, get them level, and never touch the brackets again.

Decoding the Stylewell Roller Shade Installation Instructions

The stylewell roller shade installation instructions are essentially a Rorschach test printed on newsprint. The diagrams are tiny, and the 'step-by-step' guide skips over the most important part: bracket orientation. You have two different brackets. One has a circular hole for the idle pin, and the other has a cross-shaped or slotted opening for the clutch mechanism.

Before you drill anything, hold the shade up to the window. The clutch (the side with the cord) usually goes on the right, but you can swap it if you need to. Just remember that the brackets are specific to each end. If you mount them upside down—which is surprisingly easy to do—the shade will come crashing down the first time you pull the cord. I learned that one the hard way so you don't have to.

The Hardware You Actually Need (Throw Away Their Screws)

If there is one piece of advice you take from me, let it be this: use your own hardware. The screws included in the box are prone to stripping the moment they hit a wall stud. I recommend using #8 1.25-inch wood screws if you are going into a frame, or high-quality toggle bolts if you are stuck with just drywall.

You will also want a 1/8-inch drill bit for pilot holes. Because these brackets are metal and the shades are relatively heavy, a pilot hole ensures the wood doesn't split. And please, use a laser level. If these shades are even an eighth of an inch off-level, the fabric will drift to one side as it rolls up, eventually fraying the edges against the bracket.

Step-by-Step: Stylewell Blackout Roller Shade Installation

For the guest room, I went with a stylewell blackout roller shade installation because I actually want my friends to sleep past 6 AM. When mounting blackout shades, the 'light gap' is your biggest enemy. If you do an inside mount, you will have about a half-inch gap on either side where the sun peeks through.

To minimize this, I mounted the brackets as close to the window glass as possible. If you are a light sleeper, you might want to consider an outside mount that overlaps the window trim by two inches on each side. Understanding the different roller shade types blackout vs solar is key here—blackout fabric is thicker and heavier, so make sure those brackets are anchored into something solid.

Hanging the Stylewell Light Filtering Roller Shade

In the adjacent home office, I opted for a stylewell light filtering roller shade. These are much more forgiving than the blackout versions because the fabric is thinner. However, they use a spring-tension system that can be finicky. If the shade feels too 'loose' when you pull it, you have to manually increase the tension by rolling the shade up halfway and then re-inserting it into the brackets.

These light filtering roller shades are a great value, but they don't have the weighted bottom bars of high-end models. If they start to 'telescope' (roll crooked), a small piece of masking tape on the metal roller tube on the side opposite the drift will usually fix the alignment.

My Quick Take on the Stylewell Solar Roller Shade

I also threw a stylewell solar roller shade in the sunroom. These use a PVC-coated mesh that is quite stiff. This stiffness makes the 'snap-in' phase of the installation a bit tougher. You really have to muscle the idle pin into the bracket until you hear a distinct 'click.' If you don't hear that click, the shade is just resting there, waiting to fall on your head during the next breeze.

The Smart Home Reality: Can You Motorize These Later?

As a smart home enthusiast, I immediately looked for ways to automate these. While you can buy 'retro-fit' motors that sit inside the tube, Stylewell tubes are often a non-standard diameter (usually around 1 inch or 25mm). Most cheap zigbee motors are designed for 1.125-inch or 1.5-inch tubes. By the time you buy a motor, a new tube, and the adapters, you've spent more than if you had just bought motorized light filtering roller shades to begin with.

If you are dead-set on automation, think about your power source before you drill. If you eventually upgrade, you'll need to choose between a battery vs hardwired setup. For a guest room, battery-powered motors are usually fine, but for high-traffic areas, I always regret not running a 12V wire when the walls were open.

FAQ

Which side does the chain go on?

By default, most Stylewell shades are setup for the right side. You can flip the components to the left, but you must ensure the 'clutch' bracket follows the chain to the new side.

How do I fix a shade that won't stay down?

This is usually a tension issue. If it's a cordless model, you likely need to reset the internal spring by fully retracting the shade and then pulling it down slowly to engage the ratchet.

Can I cut Stylewell roller shades to fit?

Only if the box specifically says 'Cut-to-Size.' If you try to hacksaw a standard Stylewell tube, you will likely destroy the internal spring or the clutch mechanism.
