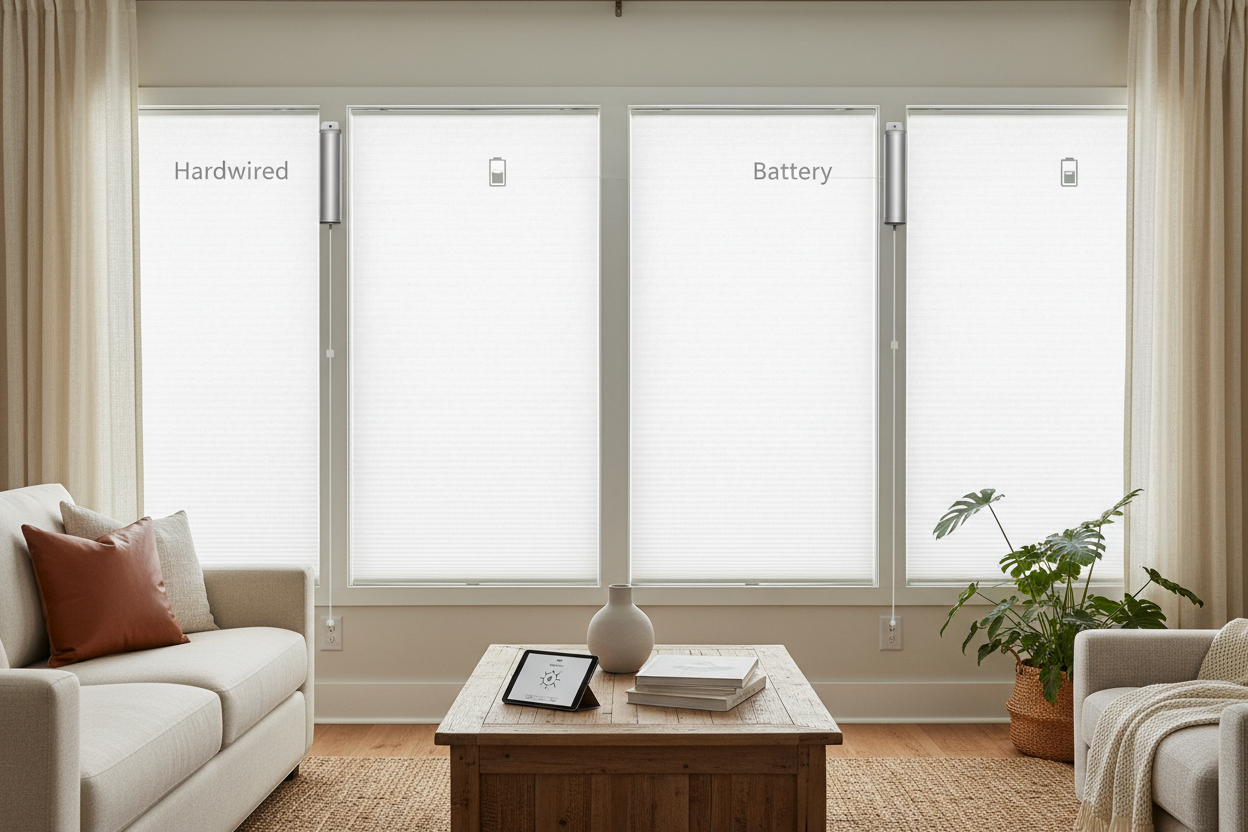

Smart 1 2 Inch Cellular Shades: Hardwired vs Battery Guide

Imagine settling onto the couch for a movie marathon. Just as the opening credits roll, a beam of harsh afternoon sunlight hits the television screen. Instead of getting up and ruining the moment, you simply say, "Cinema Mode." Instantly, the room darkens as your window treatments glide down. This isn't just about luxury; it's about energy efficiency and privacy management. Specifically, 1 2 inch cellular shades strike the perfect balance between insulation performance and sleek aesthetics for modern smart homes.

Key Specs at a Glance

• Cell Size: 1/2 Inch (Double or Single Cell)
• Best For: Small to medium windows; shallow window depths.
• Connectivity: Zigbee, Z-Wave, Matter, or RF (433MHz).
• Motor Noise: typically 40dB - 55dB depending on torque.
• Power: Rechargeable Li-ion, AA battery wand, or 12V Hardwired.

Understanding the Hardware: Why 1/2 Inch?

In the world of smart shading, size matters. The "1 2 inch" refers to the size of the honeycomb cell. While larger cells (like 3/4 inch) offer slightly better R-value (insulation), the 1/2 inch profile is often the sweet spot for motorization. The pleats are tighter, which means the stack height—the amount of space the shade takes up when fully raised—is more compact. This is critical if you want your smart shades to disappear into the headrail and maximize your view when they aren't in use.

Power Options: Battery vs. Hardwired

When selecting motorized shades, your power source dictates the installation complexity.

Battery Wands and Rechargeable Motors

For most retrofits, rechargeable motors are the standard. Modern motors often feature built-in Lithium-Ion batteries that last 6 to 12 months on a single charge. The trade-off? You will eventually need to fetch a ladder and a USB-C cable. If you have high ceilings, this maintenance can become a chore.

Hardwired (Low Voltage)

If you are renovating down to the studs, running 12V or 24V wire to the window frame is superior. Hardwired shades respond slightly faster because they don't need to "wake up" from a battery-saving sleep mode. They offer higher torque for heavier blackout fabrics without the voltage sag that occurs as batteries deplete.

Smart Integrations and Protocols

Getting the shade is step one; getting it to talk to your house is step two. Most budget-friendly motorized cellular shades use RF (Radio Frequency). To get these on your Wi-Fi network, you usually need a bridge device like a Bond Bridge or a proprietary hub provided by the manufacturer.

For a more robust local network, look for motors that run on Zigbee or the newer Matter-over-Thread standard. These respond faster than cloud-based Wi-Fi motors and don't clog up your router's bandwidth.

Living with 1 2 inch cellular shades: Day-to-Day Reality

I've had these installed in my home office for about eight months now, and there are a few nuances the spec sheets don't mention. First, let's talk about the "light gap." Because the motor mechanism sits inside the headrail, there is often a tiny gap between the fabric and the window frame—usually about 1/8th of an inch on each side. On a bright Saturday morning, that sliver of light can feel surprisingly bright if you are trying to sleep in.

Also, the sound profile is distinct. It’s not a mechanical grinding, but rather a high-pitched whir. It’s quiet enough that it doesn't wake my dog, but if the house is dead silent, you absolutely hear them moving. One specific quirk I noticed: if I trigger all three windows at once via Alexa, they rarely move in perfect unison. One usually lags about half a second behind the others due to signal latency. It’s a minor aesthetic gripe, but if you’re a perfectionist, it’s something you’ll notice every single day.

Is the Upgrade Worth It?

Switching to smart 1 2 inch cellular shades is a significant upgrade for thermal regulation and convenience. While the setup requires choosing between battery maintenance or complex wiring, the ability to schedule your privacy and light control makes the investment worthwhile for most tech-focused homeowners.

Frequently Asked Questions

How long do the batteries actually last?

In real-world usage (one up/down cycle per day), expect about 6 to 9 months for rechargeable Li-ion motors. AA battery wands typically last 12 to 18 months but are bulkier to hide.

Can I move them manually if the power goes out?

It depends on the motor. Some high-end models offer a "manual override" feature where a gentle tug engages the clutch. However, most budget motorized shades lock in place and cannot be moved by hand without risking damage to the internal gears.

Do I need a hub for voice control?

Usually, yes. Unless the motor has built-in Wi-Fi (which consumes more battery), you will likely need a gateway or bridge to translate the motor's radio signal into something Alexa, Google Home, or Apple HomeKit can understand.
