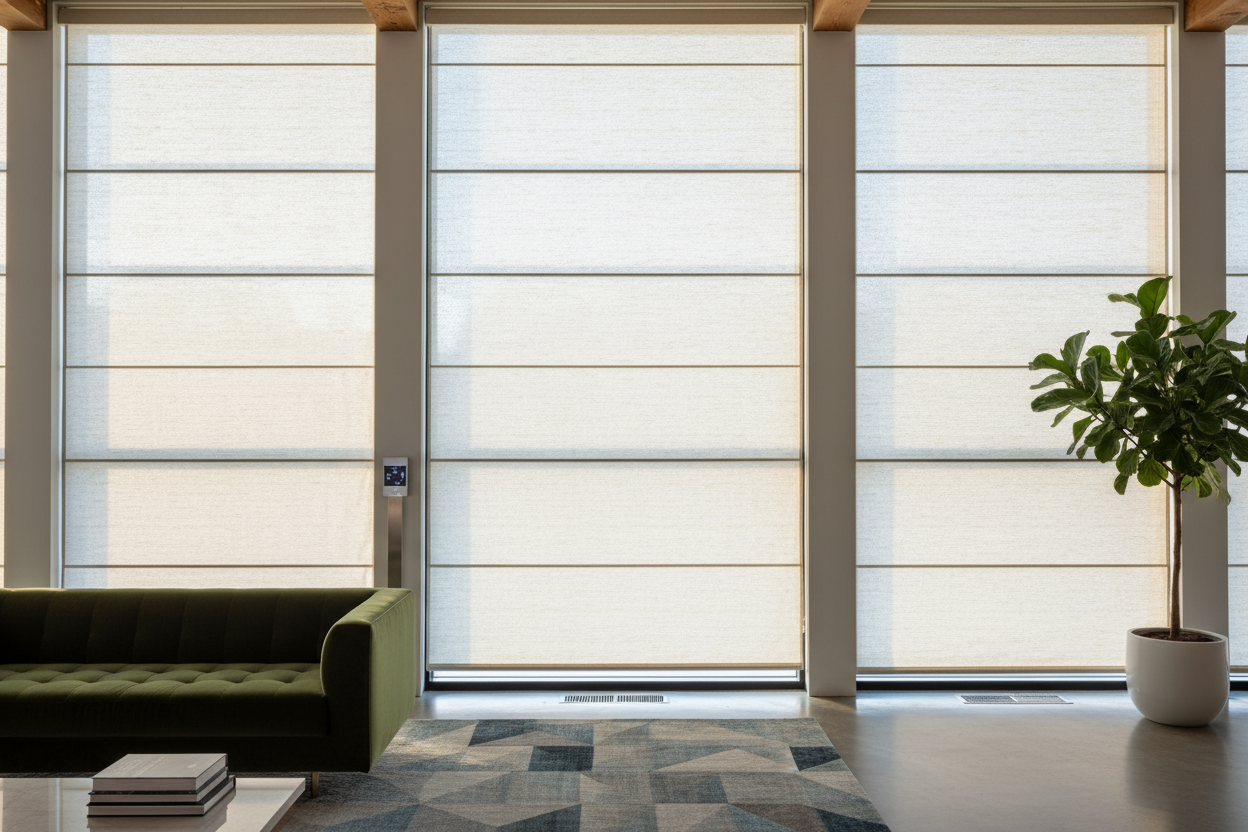

Smart 106 inch wide blinds: How to Cover Massive Windows Safely

There is a specific kind of frustration that comes with trying to cover a massive living room window. You want the natural light during the morning, but when the afternoon sun hits, the room turns into a greenhouse. That was my daily reality until I finally decided to install 106 inch wide blinds. Spanning nearly nine feet of glass with a single motorized shade is a completely different beast than outfitting a standard bedroom window.

When you are dealing with this much fabric and weight, standard off-the-shelf smart shades usually fail. The motors burn out, the tubes bow in the middle, and the batteries drain in weeks instead of months. By the end of this guide, you will know exactly what motor specs to look for, how to prevent the dreaded center sag, and whether you should tackle this massive upgrade as a DIY project.

What You Need to Know First

• Minimum Motor Torque: For shades over 90 inches, you need a motor rated at 2.0 Nm or higher. Standard 1.2 Nm motors will struggle and eventually fail.
• Tube Thickness: Look for a heavy-duty aluminum roller tube (at least 1.5 inches in diameter) to prevent the fabric from sagging in the middle.
• Power Requirements: While battery-powered options exist, hardwired motors (12V or 120V) are highly recommended for spans this large due to the sheer weight of the material.
• Protocol Choice: Zigbee or Z-Wave motors offer better reliability for heavy commands compared to standard Wi-Fi direct motors, which can drop off the network.

The Physics of Massive Window Coverings

Why Fabric Weight Dictates Everything

When shopping for blinds 106 inches wide, the fabric you choose impacts the entire system. A sheer, light-filtering fabric might weigh a few pounds, but a true multi-layer blackout fabric can easily weigh over ten pounds at this width. That weight puts immense strain on the mounting brackets and the motor.

If you opt for blackout material, you absolutely must upgrade to a heavy-duty motor. Lighter motors will either refuse to lift the shade entirely or move at a painfully slow, groaning pace that ruins the smart home experience.

Mounting: Ceiling vs. Wall

With a 106-inch span, mounting directly into studs or ceiling joists is non-negotiable. Drywall anchors, even the heavy-duty toggle bolts, are a massive risk when dealing with the torque of a motorized roller this large. I always recommend a ceiling mount if your window frame allows it, as it distributes the downward pulling force much more safely than a wall mount.

Powering Heavy-Duty Motors

The Battery Drain Reality

Most smart shade manufacturers claim a six-month battery life. However, lifting 106 blinds requires significantly more energy than lifting a standard 36-inch window shade. If you use battery-operated motors for a window this large, expect to charge them every two to three months.

If you must go with battery power, look for models that support a solar panel attachment. Placing a discrete solar strip against the glass can trickle-charge the battery, keeping it topped up despite the heavy lifting.

The Hardwired Advantage

If you are renovating or have access to an attic space above the window, hardwiring is the way to go. A low-voltage (12V) wire run to a central power supply eliminates battery anxiety entirely. Hardwired motors also tend to respond slightly faster to voice commands and smart home routines since they do not need to wake up from a deep sleep state.

Smart Ecosystem Integration

Voice Control and Sun Tracking

Connecting a massive shade to your smart home hub unlocks the best features. Using a hub like SmartThings, Hubitat, or Apple HomeKit allows you to set up temperature-based routines. For example, my living room shade automatically drops to 50% when my indoor thermostat registers 78 degrees.

Matter-compatible motors are starting to hit the market, which simplifies the setup process across different voice assistants. Just ensure your chosen motor uses a reliable mesh network protocol like Thread or Zigbee, as a nine-foot metal roller tube can sometimes cause interference with weak Wi-Fi signals.

Living with 106 inch wide blinds: Day-to-Day Reality

I installed a custom 106-inch motorized roller shade in my west-facing living room about eight months ago. First, the unboxing was intimidating. Maneuvering a nine-foot aluminum tube through my hallway without denting the drywall was a two-person job. I highly recommend bribing a friend with pizza for the installation day.

I originally thought I could get away with a standard battery motor. I was wrong. The motor made a strained, high-pitched whining noise every time it lifted the heavy blackout fabric. After three weeks, I swapped it for a 3.0 Nm hardwired motor. The difference was night and day—the heavier motor hums quietly and moves the massive shade with smooth, confident authority.

One unexpected downside: even with a thick 1.5-inch roller tube, there is a very slight, almost imperceptible bow in the center of the fabric when it is fully raised. It does not affect the function, but if you are a perfectionist, be aware that gravity always wins a little bit over a nine-foot span without a center support bracket.

Frequently Asked Questions

Can a single motor handle blinds 106 inches wide?

Yes, but it must be a high-torque motor (2.0 Nm or greater). Standard motors designed for average windows will either fail to lift the shade or burn out quickly under the strain of the heavy fabric and wide roller tube.

Do I need a professional to install 106 blinds?

While it is possible to DIY, you absolutely need two people. The sheer length and weight of the assembled shade make it impossible to level and mount safely by yourself. If you are not confident finding studs or ceiling joists, hire a professional.

How loud are heavy-duty smart motors?

High-torque motors are generally quieter than struggling low-torque motors. A properly sized motor for a massive window will produce a low, steady hum (around 40-45 decibels), which is easily drowned out by normal household background noise.
