Smart 92 Inch Wide Blinds: Motorizing Large Windows Safely

I used to dread the afternoon sun baking my living room. With windows spanning nearly eight feet, manually pulling down massive shades felt like a daily chore. Upgrading to smart 92 inch wide blinds completely changed the dynamic of the room. Now, when the ecobee thermostat detects the temperature spiking at 3 PM, the blinds quietly lower themselves to block the glare. In this guide, I will walk you through what it takes to motorize extra-wide windows, how to avoid common installation traps, and whether battery or hardwired motors make the most sense for your massive window spans.

What You Need to Know First

Motorizing a massive window span requires entirely different hardware than a standard bedroom window. Here is the reality check for extra-wide installations:

• Tube Diameter: You need at least a 1.5-inch (38mm) to 2-inch extruded aluminum roller tube. Standard tubes will bow in the middle under their own weight.
• Motor Torque: Look for motors rated at 2.0 Nm or higher. Standard 1.2 Nm motors will burn out trying to lift this much fabric.
• Mounting Depth: Inside mounts require at least 3 inches of window frame depth to hide the larger motor head and heavy-duty cassette.
• Hub Requirements: Many high-torque motors use RF or Zigbee, meaning you will likely need a dedicated bridge to connect them to Apple HomeKit or Google Home.

Taming the Extra-Wide Span

Beating the Center Sag

The biggest enemy of roller blinds 92 inches wide is gravity. When you stretch fabric across nearly eight feet, the aluminum tube holding it naturally wants to bend in the middle. This creates a V-shape wrinkling effect in the fabric known as 'smiling'. To prevent this, you cannot use the flimsy hardware found in off-the-shelf home center kits. You need a heavy-duty tube. If you are doing a DIY retrofit, I highly recommend ordering a custom-cut tube specifically rated for spans over 80 inches.

Inside vs. Outside Mount

For windows this large, an outside mount is usually the safer bet. North American window frames rarely have the 3 to 4 inches of depth required to completely flush-mount a high-torque smart blind cassette. Mounting outside the frame on the wall or ceiling gives you more structural wood (studs or headers) to anchor into, which is critical when the total weight of the shade and motor approaches 15 pounds.

Powering Heavy Window Treatments

Battery vs. Hardwired Motors

Lifting massive 92 inch blinds takes serious energy. If you have the luxury of open drywall, hardwiring a 120V or 24V DC motor is the ultimate solution. It delivers consistent, quiet power and you never have to think about charging. However, if you are renting or do not want to hire an electrician, modern lithium-ion battery motors are surprisingly capable. Just manage your expectations: while manufacturers claim 'up to 6 months' of battery life, a heavy blackout fabric on a 92-inch span will drain that battery in about three to four months with twice-daily use.

Voice Control and Routines

Matter, Zigbee, and Hubs

Connecting oversized blinds to your smart home ecosystem is where things get interesting. Most heavy-duty motors from brands like Somfy or Rollease Acmeda do not use direct Wi-Fi because it drains batteries too fast. Instead, they rely on Zigbee or proprietary RF protocols. This means you will need a gateway hub plugged into a wall outlet nearby. Once bridged, the setup comes alive. You can tie the blinds to your sunrise routines, or use geofencing to drop the shades for privacy the moment your phone leaves the home Wi-Fi network.

Living with 92 Inch Blinds: Day-to-Day Reality

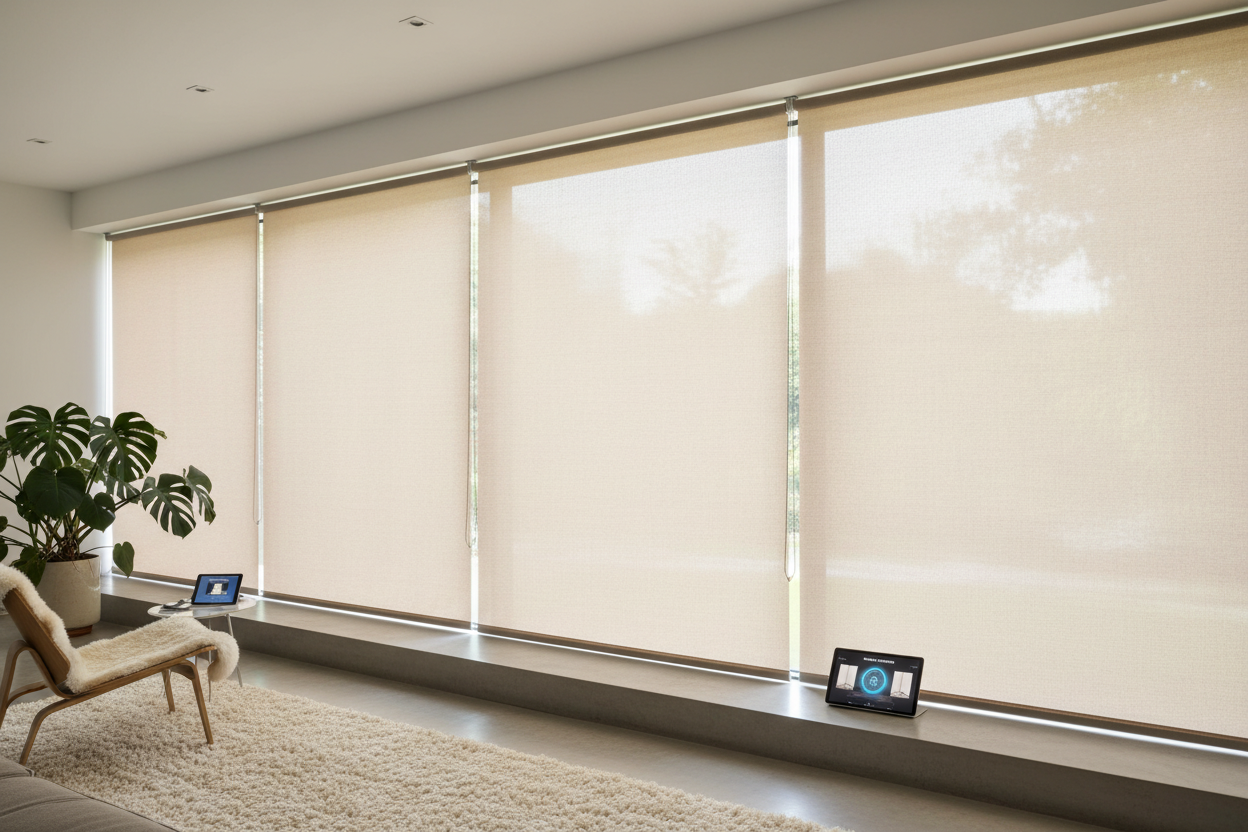

I installed a battery-powered motorized roller shade on my 92-inch living room picture window about eight months ago. The convenience is undeniably great, but it is not entirely flawless. The motor on my unit makes a distinct, low-pitched mechanical hum. It is completely fine during a noisy afternoon, but if I trigger the blinds while the house is dead silent at 6 AM, it is loud enough to wake the dog.

Another frustration was the charging process. Because the window is so wide, reaching the motor head with a standard USB-C cable required a ladder and a 10-foot extension cord draped awkwardly across the living room. I eventually bought a solar panel accessory that sticks to the glass behind the shade. It trickle-charges the battery, and I have not had to plug it into the wall since. Also, if you opt for light-filtering fabric, be aware that direct west-facing sun makes the massive sheet of fabric glow like a giant softbox. It is a beautiful effect, but terrible if you are trying to watch TV without glare.

Frequently Asked Questions

Do roller blinds 92 inches wide need a center support bracket?

Generally, no. A proper oversized motorized blind uses a thick, reinforced aluminum tube designed to span the distance without bowing. Adding a center bracket would actually interfere with the continuous roll of the fabric.

How long do batteries last in 92 inch blinds?

For an extra-wide, heavy shade operated twice a day, expect a rechargeable lithium-ion battery to last between 3 and 5 months per charge. Lighter sheer fabrics will stretch this closer to the 6-month mark.

Can I still operate them manually during a power outage?

If you have a battery-powered motor, yes, they will continue to work normally via remote or app (if your local network router is on a UPS backup). Hardwired motors without a battery backup will be stuck in their current position until power is restored, as pulling them manually can strip the internal gears.
