Smart Control for Your 11 Foot Outdoor Roller Shade: My Setup

It is 5:00 PM. You are trying to enjoy a cold drink on your patio, but the late-afternoon sun is cutting right under the overhang, blinding you and heating up the pavers. You could get up, find the hand crank, and manually lower the heavy fabric, or you could stay seated and simply say, "Alexa, lower the patio shade." That is the convenience we are looking for.

Finding the right smart solution for a standard window is easy, but sourcing and installing a motorized 11 foot outdoor roller shade presents unique challenges regarding weight, wind resistance, and motor torque. Here is how I approached retrofitting a smart motor system for this massive span.

Key Specs at a Glance

Because of the sheer width of an 11 ft outdoor roller shade, standard indoor motors will fail. Here are the specific technical requirements you need to look for before buying:

• Motor Type: 45mm Tubular Motor (minimum)
• Torque Requirement: 6Nm to 10Nm (due to heavy weather-resistant fabric)
• Power Source: Rechargeable Li-ion with Solar Panel trickle charge
• Connectivity: 433MHz RF (requires Bridge) or native Zigbee
• Weather Rating: IP44 or higher (Splash/Dust resistant)

Installation Realities: Managing the Span

The biggest hurdle with an 11-foot span is the "sag factor." Unlike indoor blinds, the aluminum tube holding the fabric needs to be significantly reinforced. When I installed mine, I realized that a standard 1.5-inch tube bowed in the middle. You generally need a 2.5-inch or 3-inch diameter tube to maintain structural integrity.

Furthermore, mounting brackets must be secured into studs or a solid header beam. Drywall anchors or simple stucco screws will rip out under the dynamic load of the wind pushing against 11 feet of fabric.

Power & Battery Options

Running hardwired power to an exterior patio often requires an electrician to drill through masonry. I opted for a battery-operated tubular motor paired with a slim solar panel. The panel mounts on the top of the cassette. In my experience, even indirect sunlight keeps the battery topped off, provided you aren't raising and lowering the shade ten times a day.

Ecosystem Integration

Most heavy-duty outdoor motors utilize 433MHz Radio Frequency (RF) rather than native WiFi. This is actually a benefit, as RF has better range through thick exterior walls. However, to get this into your smart home ecosystem, you need a bridge.

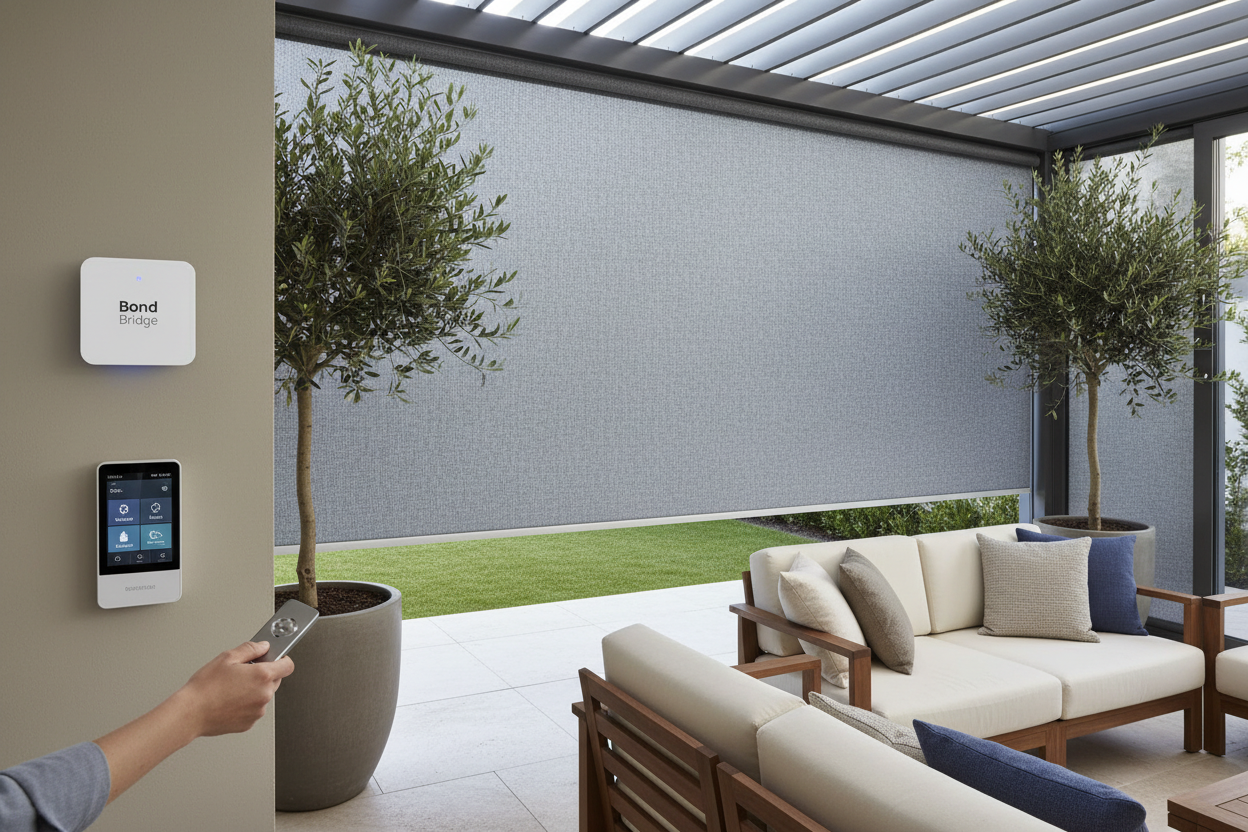

I use a Bond Bridge for this. It learns the RF signal from the shade's handheld remote and exposes the device to Alexa, Google Home, or Home Assistant. Once bridged, you can set schedules—like having the shade lower automatically at 4:00 PM to pre-cool the patio before you get home.

Living with 11 foot outdoor roller shade: Day-to-Day Reality

After three months of daily use, here is the unpolished truth about living with this setup. The first thing you notice is the sound. It isn't silent. These high-torque motors emit a low-frequency hum, roughly 55dB, which is audible but not annoying outdoors.

One specific nuance I didn't expect: the wind delay. I set up a routine using a local weather station to raise the shade if wind gusts exceed 15 mph. However, because cloud-based routines have a slight latency (about 3-5 seconds), there have been moments where I watched the shade billow violently like a sail before the motor finally kicked in to retract it. If you live in a high-wind area, I strongly recommend using tie-downs or cable guides, even with a smart motor.

Conclusion

Upgrading to a motorized 11 foot outdoor roller shade is an investment in usability. While the initial setup requires careful attention to torque specs and bridge integration, the ability to manage heat and glare without leaving your chair makes the patio a true extension of your smart home.

Frequently Asked Questions

What happens if the power goes out?

Most outdoor smart motors have a "manual override" head. You can insert a traditional hand crank into the motor end to raise or lower the shade during outages.

Do I need a specific hub?

If the motor is RF-based (common for outdoor gear), you need a bridge like the Bond Bridge or Broadlink RM4 Pro. If you find a Zigbee motor, you will need a Zigbee hub (like Echo Show or SmartThings).

How long does the battery last without solar?

On a heavy 11-foot shade, a fully charged lithium motor typically lasts 4-6 months with daily use. Adding a solar panel makes it effectively permanent.
