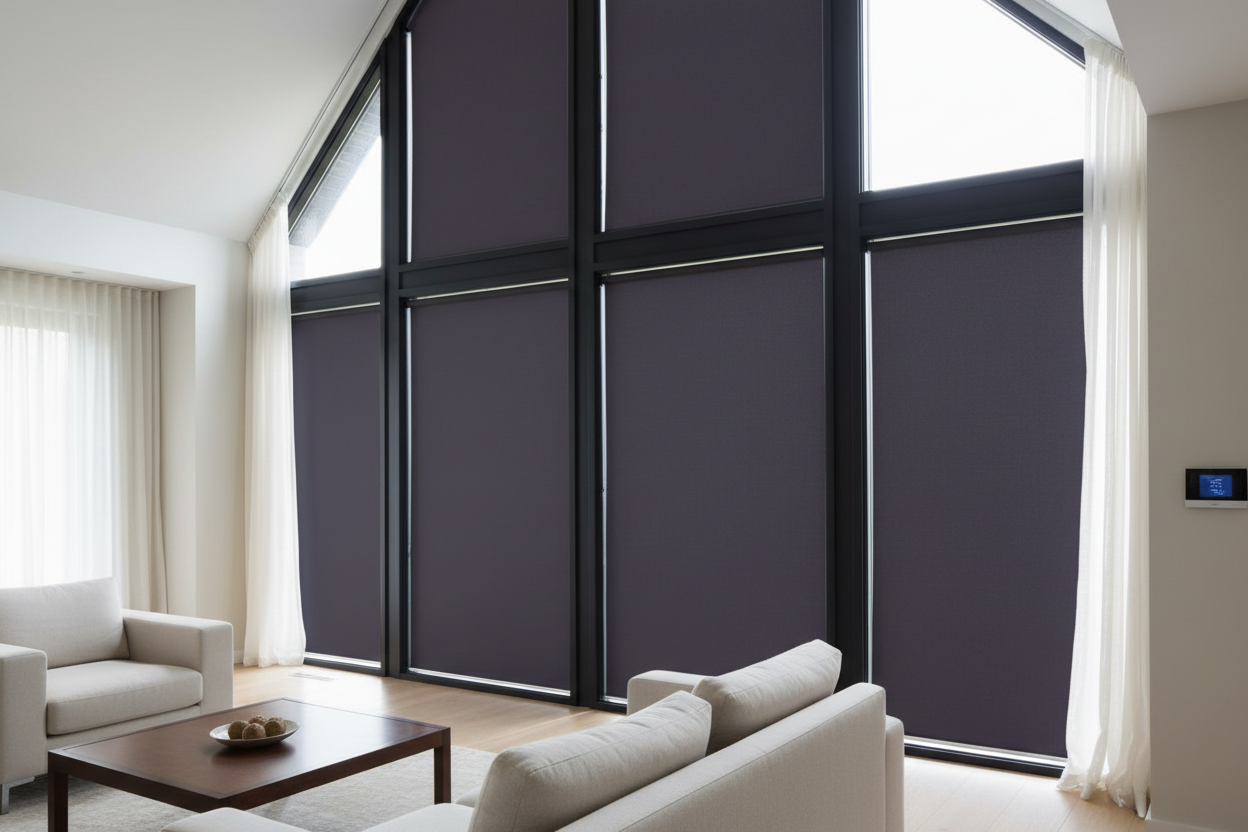

Smart Framed Blinds for Windows: The Ultimate Blackout Setup

Imagine settling in for a movie marathon at noon. You say, "Cinema Mode," and your shades lower. But instead of that annoying halo of light bleeding through the edges, the room goes pitch black. This is the distinct advantage of framed blinds for windows combined with smart home automation. While standard motorized shades offer convenience, adding a frame (often called side channels or a cassette) creates a seal that maximizes insulation and light control. Whether you are looking to retrofit a standard window or finding solutions for complex a frame window blinds, the tech has finally caught up to the architecture.

Quick Compatibility Check: Smart Motor Specs

Before drilling into your window frames, understand what drives these systems. Here is a breakdown of the current tech standards for framed and blind in frame setups.

Motor Type	Connectivity Protocol	Best For	Platform Support
Retrofit Bead Chain	Bluetooth / WiFi Bridge	Existing framed window blinds	Alexa, Google, Siri (via Hub)
Tubular (Battery)	Zigbee / Thread / RF	New installs, Cleaner look	HomeKit, SmartThings, Alexa
Hardwired (DC/AC)	Z-Wave / RS485	Heavy fabrics, A frame window shades	Control4, Savant, Home Assistant

Installation Types: Cassettes vs. Architectural Frames

When we talk about framed blinds, we are generally looking at two distinct categories in the smart home world. Your installation method depends heavily on which route you take.

1. The "Blackout" Frame (Cassette & Side Channels)

This is the most common smart upgrade. The roller blind is housed in a top cassette, and the fabric runs down inside aluminum side channels (the frame). For automation, tubular motors are superior here. Because the fabric is guided by the frame, the motor needs precise limit settings to avoid bunching the fabric at the bottom.

• Noise Levels: Look for motors rated under 40dB. Because the motor is enclosed in a hollow aluminum cassette, cheaper, louder motors will vibrate against the metal, amplifying the sound.
• Weight Capacity: If you are using heavy thermal fabrics, ensure your motor torque is at least 1.1Nm.

2. The Architectural Challenge: A Frame Window Blinds

If you are dealing with triangular or trapezoidal architecture, blinds for a frame windows are notoriously difficult to automate. Gravity is the enemy here.

Standard top-down motors don't work well because the blind gets wider as it descends. The smart solution for a frame window curtains or shades usually involves a tensioned bottom-up system. These require specialized motorized tracks that pull the fabric up from the sill. When shopping, verify the motor supports "tension control" to prevent the fabric from sagging in the middle of the A-frame.

Power Options & Smart Integrations

Integrating framed window treatments requires planning your power source before the drywall is painted (if possible).

Battery vs. Hardwired

For a clean blind in frame look, battery motors are convenient but require charging every 6–12 months. However, if your framed blinds are high up (common with a frame window shades), getting a ladder out to charge them is a hassle. For high ceilings, I always recommend low-voltage hardwiring or a solar panel add-on if the window gets direct sun.

App Features & Sensors

Don't just look for "remote control." A true smart blind system should support:

• Sun Positioning: The blinds adjust based on the sun's azimuth to protect furniture (crucial for large a frame windows).
• Obstruction Detection: If the framed blind hits a window crank or a plant on the sill, the motor must stop instantly to prevent burning out or tearing the fabric.

Living with framed blinds for windows: Day-to-Day Reality

I have lived with a retrofit smart framed system in my master bedroom for about two years now, and there are sensory details the spec sheets don't tell you.

The first thing I noticed was the acoustic difference. Unlike a free-hanging roller shade, a framed blind creates a drum-like effect. When my 7:00 AM automation kicks in, the initial torque of the motor vibrates through the side channels. It’s not loud, but it’s a distinct, mechanical thrum that resonates against the window glass—different from the soft whir of a standard shade.

Another nuance is the "light gap" reality. Even with high-end framed window blinds, if your wall isn't perfectly plumb (and they never are), you might see a hairline fracture of light between the frame and the wall. I ended up having to run a thin bead of black caulk behind the frame to get that true "blackout" experience. It’s a messy DIY fix, but necessary if you are chasing total darkness.

Conclusion

Investing in window treatments for a frame windows or standard framed blackout blinds is a significant upgrade for thermal efficiency and privacy. While the hardware cost is higher than standard shades, the ability to seal off light completely with a voice command is a luxury that is hard to give up once you have it. Just remember: for high-up A-frames, hardwire your power, or you will regret it six months later.

Frequently Asked Questions

Can I retrofit smart motors into existing framed blinds?

Yes, but it depends on the tube size. If you have "Perfect Fit" style blinds (which clip onto the glass), the headrail is often too small for standard tubular motors. You may need an external friction-drive motor (like SwitchBot) or a specialized miniature motor.

Do smart blinds for a frame windows work with Alexa?

Most modern motorized systems for A-frames use RF (Radio Frequency) bridges that connect to WiFi. Once the bridge is online, you can link it to Alexa, Google Home, or HomeKit for voice control.

What happens during a power outage?

If you use battery-powered motors, they will continue to work via the remote or local buttons. Hardwired AC motors will fail unless they have a battery backup. Manual operation is usually not possible with motorized framed blinds due to the gearing inside the motor.
