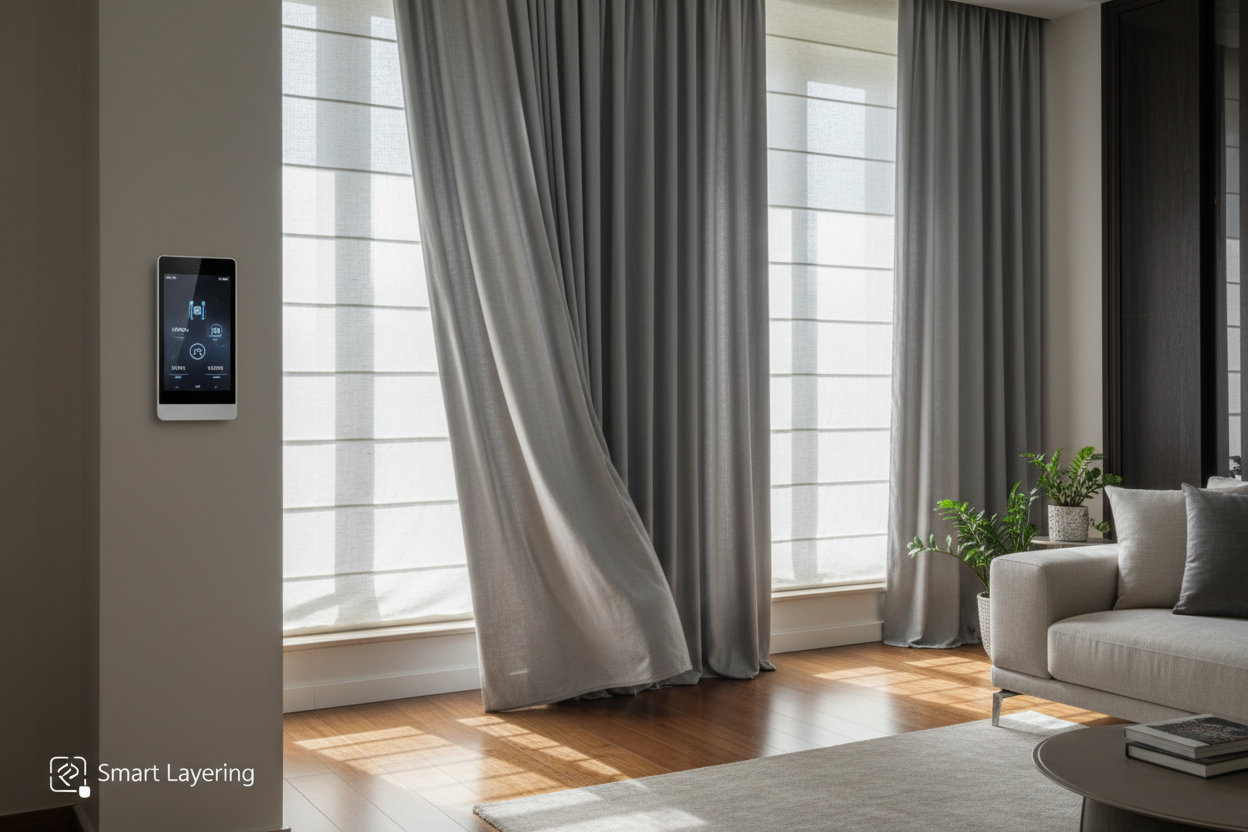

Smart Layering: Automating Roman Shades and Curtains Together

Imagine triggering a "Movie Night" scene via voice command. Instantly, the lights dim, and your window treatments spring to action. The blackout roman shades and curtains glide shut simultaneously, creating a completely dark, acoustically dampened theater environment. This isn't just about luxury; it's about thermal efficiency and privacy management. Layering smart window treatments combines the soft aesthetic of drapes with the functional opacity of shades, but automating this dual setup requires careful planning regarding motor torque, bracket spacing, and protocol compatibility.

Quick Compatibility Check

Before drilling into your headers, verify your smart home ecosystem can handle dual-motor synchronization. Here are the specs you need to look for when selecting motors for layered setups.

Installation Types: Rod vs. Track Spacing

The biggest physical challenge when installing drapes with roman shades is depth. Standard mounting brackets often don't provide enough clearance. If you mount a motorized roman shade inside the window frame (inside mount), you have more flexibility. However, for outside mounts, you must ensure the curtain rod brackets extend at least 3 to 4 inches past the headrail of the shade.

If the spacing is too tight, the pleats of the roman shades and drapes will collide during operation, potentially stalling the motor or triggering the obstacle detection safety stop found in newer smart motors like the SwitchBot Curtain 3 or Eve MotionBlinds.

Power Options for Dual Layers

When you have roman shades with curtains, accessibility becomes an issue. If you choose battery-powered motors for the underlying roman shade, you will have to wrestle with the drapery panels every 6 months to reach the charging port.

For this specific setup, I highly recommend low-voltage hardwiring (24V DC) if you are in the renovation phase. If you are retrofitting, look for motors with detachable battery packs or solar panel add-ons that can be discretely tucked behind the curtains roman style pleats facing the glass.

Smart Integrations and Noise Levels

Noise is a critical factor when two motors run at once. A single noisy motor is tolerable; two sounding like a grinder is not. Look for motors rated below 40dB. Brands like Lutron and Somfy offer "silent modes" that slow the motor down to reduce noise.

In terms of app features, look for "grouping" capabilities. In Apple HomeKit or Amazon Alexa, you want to group the roman shade with drapes so a single command controls the ambient light. You can also set advanced automations: have the sheer roman shades lower at noon for UV protection, while the heavier drapes over roman shades close only at sunset for privacy.

Living with Roman Shades and Curtains: Day-to-Day Reality

I've been running a dual-motor setup in my living room for over a year now, and there is a specific nuance specs don't tell you about: Latency drift. I use a Zigbee motor for the roman shade and a WiFi motor for the drapery track. When I shout a voice command, the WiFi curtain reacts about 1.5 seconds faster than the shade.

Visually, it looks a bit disjointed—the curtains start moving while the shade is still thinking. It’s a minor annoyance, but if you want that seamless "Iron Man" house feel, stick to the same protocol (ideally Thread/Matter) for both the roman shades with drapery panels. Also, the sound of the fabric rubbing is real. If I don't dress the drapes perfectly after vacuuming, the hem catches on the bottom bar of the roman shade, triggering the motor's anti-stall kickback. You learn to check your spacing quickly.

Conclusion

Automating roman shades and curtains is a significant upgrade that offers superior thermal insulation and light control. While it requires careful measurement of bracket depth and motor selection to ensure the layers don't interfere, the result is a truly smart, adaptive home environment.

Frequently Asked Questions

Can I manually open the drapes if the power goes out?

Most modern smart curtain motors (like SwitchBot or Aqara) have a "Touch & Go" or manual override feature that allows you to pull the fabric by hand without damaging the motor gearing. Roman shades, however, usually remain locked in position without power.

Do I need a hub for this setup?

It depends on the motor. Bluetooth motors work directly with your phone but have limited range. For reliable voice control and automation away from home, a gateway or hub (like a HomePod, Echo, or dedicated brand bridge) is highly recommended.

How long do the batteries last in a layered setup?

Expect 6 to 8 months of battery life with average use (2 cycles per day). Heavy velvet drapes will drain curtain motors faster than lighter fabrics.
