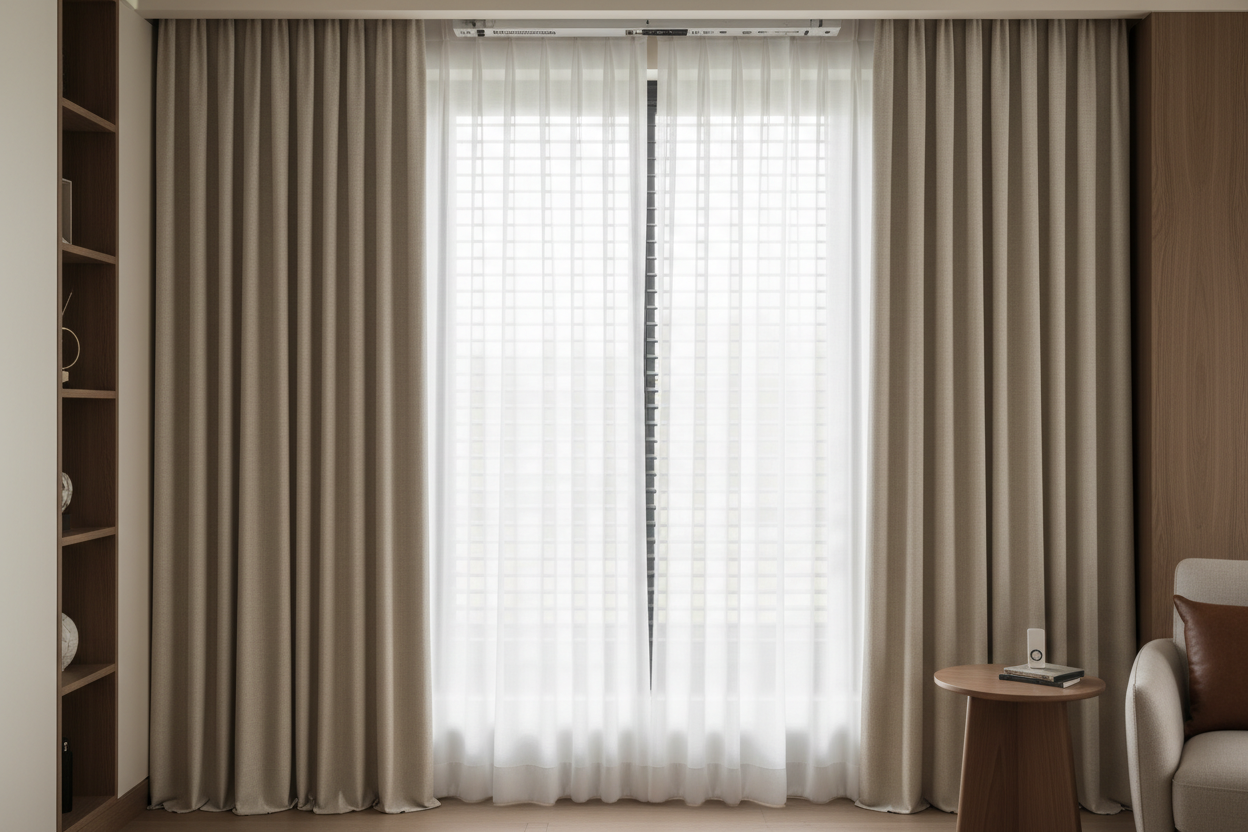

Smart Layering: The Right Way to Put Blinds in Curtains

Imagine it’s movie night. You’re settled on the couch, popcorn in hand, but the streetlamp outside is casting a glare right across your TV screen. Instead of getting up to fiddle with cords and rods, you simply say, “Turn on Cinema Mode.” Instantly, the sheer shades lower for privacy, and the heavy drapes slide shut to block the light. This is the practical magic of combining smart blinds in curtains.

While many people start with just one layer, the combination of motorized hard treatments (blinds) and soft treatments (curtains) offers the best thermal control and light management. However, getting the hardware to fit and the tech to talk to each other requires careful planning.

Quick Compatibility Check: The Essentials

Before drilling holes, you need to know if your window depth and ecosystem can handle a dual setup. Here is the breakdown of what actually matters for a retrofit:

• Power Source: Rechargeable Li-ion battery (easiest for retrofits) vs. Hardwired DC (requires an electrician, best for new builds).
• Connectivity Protocol: Zigbee 3.0 or Thread (recommended for stability), Wi-Fi (battery drain risk), or Bluetooth (limited range).
• Platform Support: Most major motors (Eve, SwitchBot, Lutron) support Amazon Alexa, Google Home, and Apple HomeKit.
• Load Capacity: Check the torque. Standard motors handle up to 10-15 lbs; heavy velvet curtains for windows with blinds may require heavy-duty tracks rated for 25+ lbs.

Installation Realities: Spacing is Everything

The biggest mistake I see when people install window curtains with blinds is underestimating the depth requirements. A standard roller blind cassette sticks out about 3 to 4 inches. If your curtain rod brackets only offer a 3-inch projection, your drapes will snag on the blind housing every time they move.

To fix this, you need extended brackets or a ceiling-mounted curtain track. When measuring for windows with blinds and curtains, allow at least 2 inches of clearance between the front of the blind and the back of the curtain fabric. This prevents friction, which can overwork the motors and drain batteries faster.

Power & Battery Options

If you are renting or don't want to tear up drywall, battery-operated motors are the standard choice. Modern motors typically last 6 to 12 months on a single charge. However, in a layered setup, accessing the charging port can be annoying.

When you have a window with blinds and curtains, the curtain fabric often blocks the blind's charging port. Look for blind motors that offer a magnetic charging extension cable. This lets you charge the blind without needing to remove the valance or wrestle with the drapes.

Ecosystem Integration and Noise Levels

Integrating these devices into your smart home hub allows for "Scenes." You don't want to trigger them individually. Create a routine where the blinds lower first, followed by the curtains 10 seconds later. This staggering helps manage hub traffic and prevents Zigbee network congestion.

Noise Considerations

Pay attention to the decibel (dB) rating. A quiet bedroom setup should operate under 40dB. Cheaper motors often whine at 55dB+, which ruins the luxury feel. When running window blinds with curtains simultaneously, the sound is additive. High-end options like Lutron or Somfy are nearly silent, while budget retrofit kits will be audible.

Living with blinds in curtains: Day-to-Day Reality

After living with this dual setup for over a year, there is a specific nuance that spec sheets don't tell you: the "fabric drag." In my living room, I used a textured linen curtain over a smart roller shade. I noticed that when the AC kicked on, the air current pushed the curtain slightly inward.

If I triggered the blinds to lower while the AC was blowing, the bottom bar of the blind would catch on the curtain texture, causing the blind to spool unevenly. I had to adjust my "Goodnight" routine to close the curtains after the blinds were fully down, rather than simultaneously. It’s a small detail, but it prevents motor strain. Also, hiding the battery pack for the curtain motor is tricky; I ended up using white gaffer tape to secure it behind the pleat so it wasn't visible from the side.

Conclusion

Layering smart window treatments is an investment in comfort and energy efficiency. While it requires precise measurement to avoid snagging, the ability to control heat and light with a voice command is genuinely useful. Focus on spacing and motor torque, and your setup will serve you well for years.

Frequently Asked Questions

Do I need a hub for smart blinds and curtains?

Usually, yes. While some Wi-Fi models connect directly to your router, Zigbee and Thread devices require a compatible gateway or a border router (like an Echo Show or Apple HomePod) for remote control and voice integration.

Can I manually open them if the power goes out?

It depends on the model. Most retrofit curtain bots allow for "Touch & Go" manual pulling, but many motorized roller blinds lock in place without power. Always check for a manual override feature if this is a concern.

How do I charge the blind motor behind the curtains?

Use a magnetic charging cable extension. Leave the small magnetic tip in the blind's charging port, and simply click the cable on when needed. This saves you from having to climb a ladder or move the drapery.
