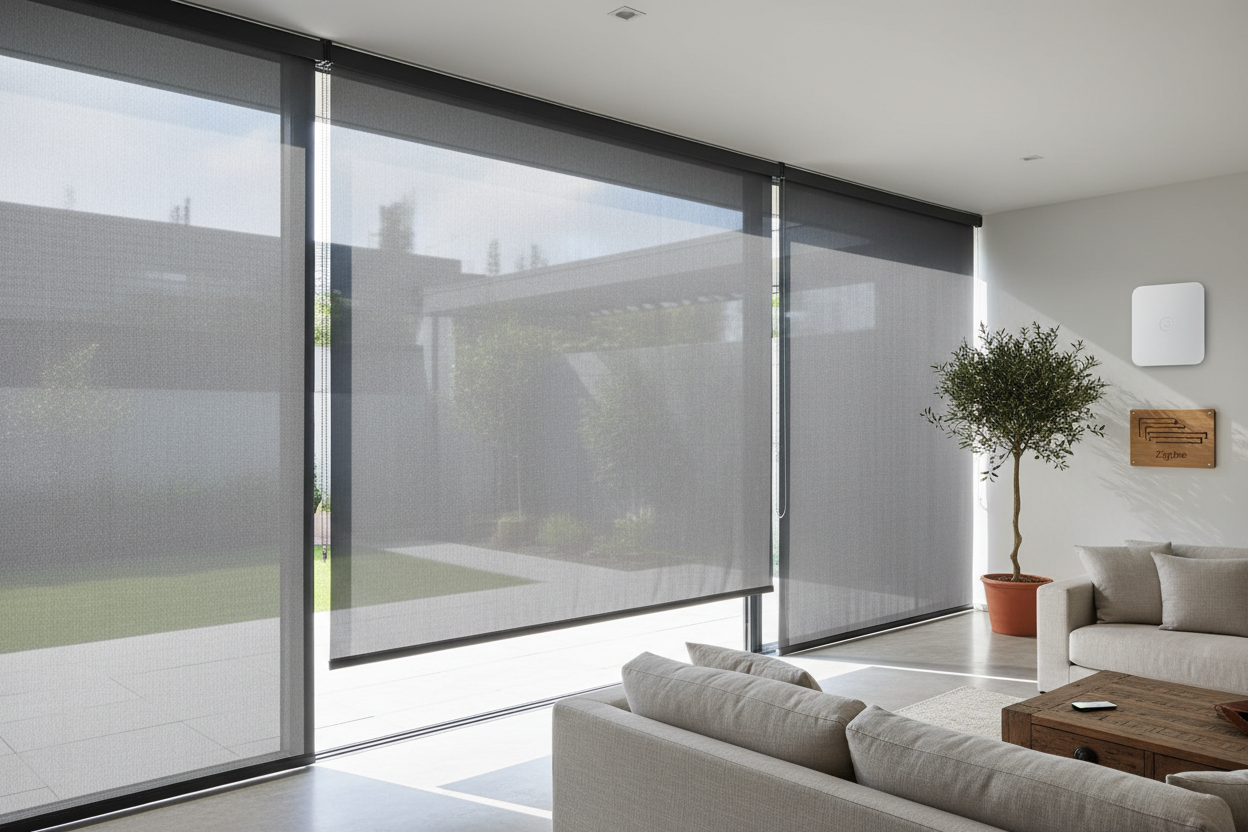

Smart Mesh Outdoor Blinds: Managing Heat Without Lifting a Finger

It’s 3:00 PM on a Saturday. You’re trying to enjoy a cold drink on the patio, but the low-angle sun is blasting the space, turning your relaxation zone into a convection oven. In the past, this meant getting up, finding the hand crank, and manually lowering the shades while squinting against the glare. Today, it just means speaking a command to the air or tapping a widget on your phone.

Integrating mesh outdoor blinds into your smart home ecosystem isn't just about showing off tech; it’s about actual climate control. By blocking UV rays before they hit your windows, you drastically reduce indoor cooling loads. But the real trick is getting the motor, the power source, and your voice assistant to play nice together.

Key Specs at a Glance

Before you start drilling into your stucco or siding, here is the technical breakdown of what makes these blinds tick. I've stripped away the marketing fluff to focus on the hardware realities.

• Motor Type: Tubular Motors (Standard 35mm or 45mm diameter).
• Connectivity Protocols: RF 433MHz (Requires Bridge), Zigbee 3.0, or Native WiFi.
• Power Source: Rechargeable Li-ion Battery (often with Solar Panel) or Hardwired 120V/240V.
• Torque Requirements: 6Nm to 10Nm depending on blind width.
• Smart Platform: Alexa, Google Home, HomeKit (often requires Matter-compatible bridge).

Installation Realities: Mounting and Wind Resistance

Installing smart blinds outdoors is significantly different from indoor treatments. The primary variable isn't just aesthetics; it's wind load. When setting up these blinds, you are generally dealing with either a Wire Guide system or a Side Track (Zipscreen) system.

For a DIY retrofit, wire guides are more forgiving. You anchor a stainless steel cable to the floor or deck, which prevents the blind from banging against the glass during a breeze. If you live in a high-wind area, however, Zipscreen tracks are superior, though they require precise leveling. If your tracks are even 3mm out of plumb, the motor will strain, creating friction that drains the battery faster and increases operation noise.

Power & Battery Options

Unless you are building a new home with pre-run electrical conduits, you will likely opt for a battery-powered tubular motor. Modern Lithium-ion motors usually hold a charge for 4-6 months with daily use.

My recommendation? Add a solar panel trickle charger. Most smart blind motors have a dedicated port for a slim solar strip. Mount this facing South or West. It eliminates the need to get on a ladder with a charging cable twice a year, which is a massive safety plus for second-story installations.

Ecosystem Integration: The RF vs. Zigbee Dilemma

This is where many users get stuck. Most outdoor blind motors operate on Radio Frequency (RF 433MHz). They come with a handheld remote, but they don't talk directly to your router.

To get these into your smart home app, you generally need an RF-to-WiFi bridge. The Bond Bridge is the gold standard here. It learns the RF signal from the handheld remote and exposes that device to Alexa or Google Home.

If you prefer a mesh network with local control (faster response, no cloud reliance), look for motors specifically labeled as Zigbee. These pair directly with hubs like the Aeotec SmartThings Hub or the Amazon Echo (4th Gen), allowing for faster response times and local routine execution even if the internet is down.

Living with Mesh Outdoor Blinds: Day-to-Day Reality

After running a set of solar-powered mesh blinds for six months, here is the unvarnished truth about the experience. The biggest adjustment wasn't the app—it was the sound.

When you trigger the blinds via voice command inside your silent living room, you can faintly hear the tubular motor engaging outside through the glass. It’s a low hum, roughly 45dB. It’s not annoying, but it is noticeable.

Another nuance is the "Bond Bridge Delay." Because my motors are RF-based and routed through a bridge, there is a consistent 1.5 to 2-second lag between saying "Alexa, lower the patio shades" and the motor actually engaging. It’s not a dealbreaker, but it lacks the instant snap of a hardwired switch. Also, keep an eye on the bottom bar weight. During a storm last month, I realized I hadn't tensioned my guide wires enough; the metal bottom bar tapped rhythmically against the wire in 15mph gusts until I went out and tightened the turnbuckles.

Conclusion

Upgrading to smart mesh outdoor blinds is a significant investment, but the thermal comfort payoff is immediate. Being able to schedule the shades to drop right before the afternoon sun hits your patio furniture protects your upholstery and keeps your home cooler. Just ensure you choose the right power source for your installation capabilities.

Frequently Asked Questions

What happens if the battery dies while the blind is down?

Most quality motors include a manual override feature. This is usually a small loop on the motor head where you can insert a manual crank wand to retract the shade mechanically.

Do I need a specific hub for these?

If you buy a standard RF motor, yes, you will need a bridge like Bond or Broadlink RM4 Pro. If you buy a WiFi motor, it connects directly to your router, though this can congest your network.

Can I clean the mesh material?

Absolutely. Most outdoor mesh is PVC-coated polyester. You can hose it down gently and use a mild soap with a soft brush. Just avoid getting water directly into the motor housing side.
