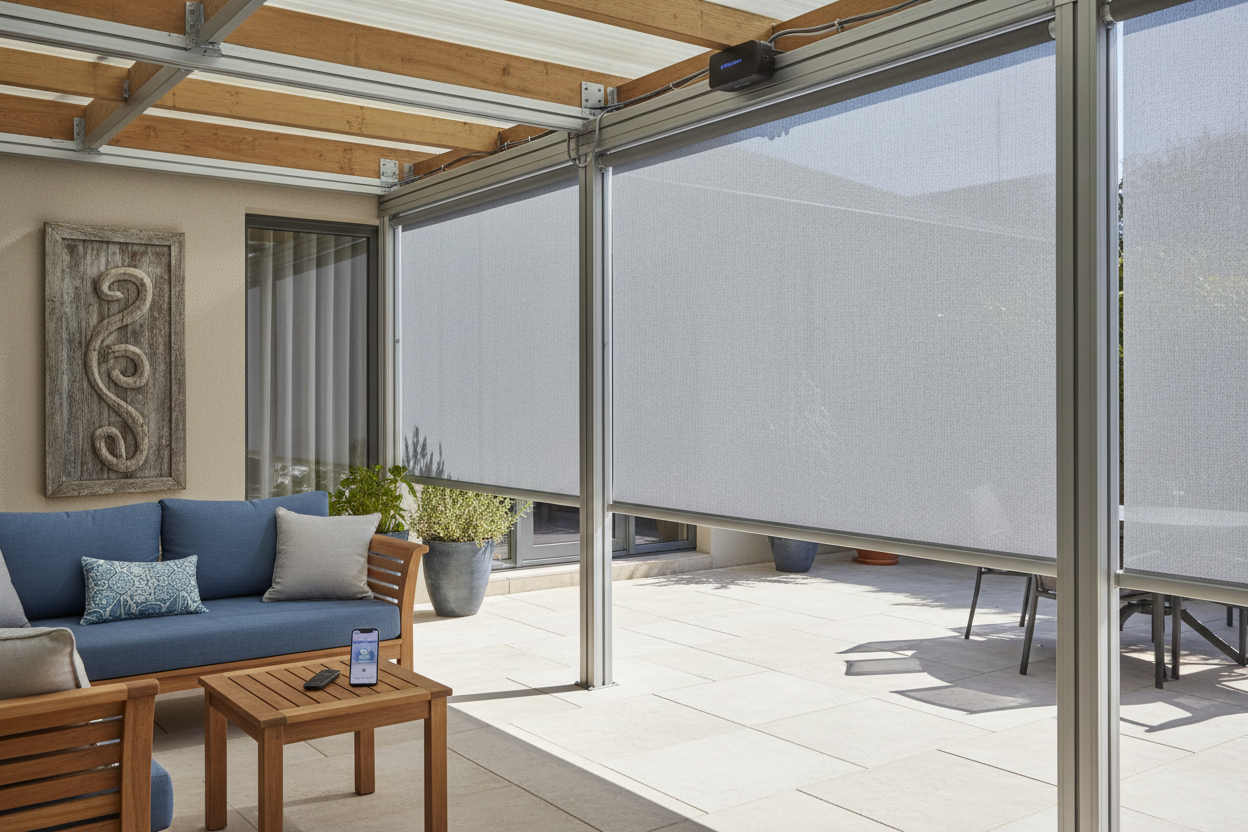

Smart Patio Shades DIY: Adding Voice Control to Your Deck

Imagine settling into your deck chair with a cold drink, ready to enjoy the afternoon breeze, only to have the low sun hit you directly in the eyes. You could get up and manually crank down a heavy canvas, or you could simply say, "Alexa, lower the deck shades." While many assume smart exterior shading requires an expensive professional install, creating a patio shades diy setup is entirely possible with the right retrofit motors and materials.

Key Specs at a Glance

• Motor Type: Tubular (for roller tubes) or Chain Driver (retrofit).
• Power Source: Solar-trickle charge (recommended) or 12V hardwired.
• Connectivity: Zigbee 3.0, Z-Wave, or Wi-Fi (2.4GHz).
• Weather Rating: Look for IP55 or higher for moisture resistance.
• Smart Platform: Alexa, Google Home, HomeKit (via Bridge).

Installation Realities: Building the Structure

When planning diy patio shade structures, the hardware is just as critical as the smarts. If you are starting from scratch, you need a rigid frame to support the torque of a motorized roller. Unlike static diy shade sail ideas which rely on tension, a motorized system needs a level mounting surface.

For a standard diy patio shade wall, I recommend using heavy-duty outdoor roller clutches. If you are retrofitting, check your tube diameter. Most smart tubular motors fit 1.5-inch or 2-inch tubes. If you are working on a diy balcony shade where drilling is restricted, tension-rod based systems can sometimes be adapted with a retrofit chain driver, though they handle less wind load.

Power & Battery Options

The biggest challenge with diy outdoor shade canopy projects is getting power to the unit. You likely don't have an outlet at the top of your pergola.

Solar is King: For most diy patio canopy ideas, a lithium-ion battery motor paired with a small solar panel is the standard. I look for motors with at least a 3000mAh capacity. In my testing, a south-facing panel keeps the battery at 100% indefinitely.
Hardwired Low Voltage: If you are building diy porch shade ideas during a renovation, running 12V cabling is superior as it eliminates battery degradation concerns entirely.

Ecosystem Integration & Range

Your diy shade ideas fall flat if the signal can't reach the motor. Exterior walls—especially brick or stucco with wire lath—are notorious signal killers.

The Connectivity Protocol Matters

I advise against pure Wi-Fi motors for patio awning ideas diy unless you have an outdoor access point. Instead, opt for Zigbee or Thread. These mesh protocols allow you to place a smart plug (acting as a repeater) on the nearest indoor wall to bridge the connection to your outdoor hub. This ensures your diy patio shade cover responds instantly rather than lagging.

Living with patio shades diy: Day-to-Day Reality

After running my own smart exterior setup for six months, here is the unpolished truth: Wind is the enemy.

I installed a Zigbee roller motor on my west-facing pergola. The convenience is incredible, but I learned quickly that smart motors are silent, but wind is not. On a breezy day, a partially lowered shade acts like a sail. I had to install a separate vibration sensor on the bottom bar. Now, if the wind gusts, the sensor triggers a routine to retract the shade immediately. Also, there is a distinct "whir" from the motor that is more audible outdoors than inside due to the lack of insulation—it's about 45dB, roughly the hum of a refrigerator.

Conclusion

Building a smart shading solution is a rewarding weekend project. Whether you are adapting easy diy shade structure plans or retrofitting an existing manual crank, the ability to control heat and glare via voice command changes how you use your outdoor space. It transforms a passive backyard into an active extension of your smart home.

Frequently Asked Questions

How long do the batteries last if I don't use solar?

Without a solar panel, a standard motorized shade operated twice daily typically lasts 3 to 6 months before needing a recharge via USB-C.

Can I still operate the shades if the power goes out?

This depends on the motor. "Dual-power" or manual-override motors allow for hand-cranking during outages, but standard tubular motors will remain locked in position without power.

Do I need a specific hub for these motors?

Yes, most outdoor-rated motors use Zigbee or 433MHz RF. You will likely need a compatible gateway (like a SmartThings Hub, Hubitat, or a dedicated Bond Bridge for RF motors) to interface with Alexa or Google Home.
