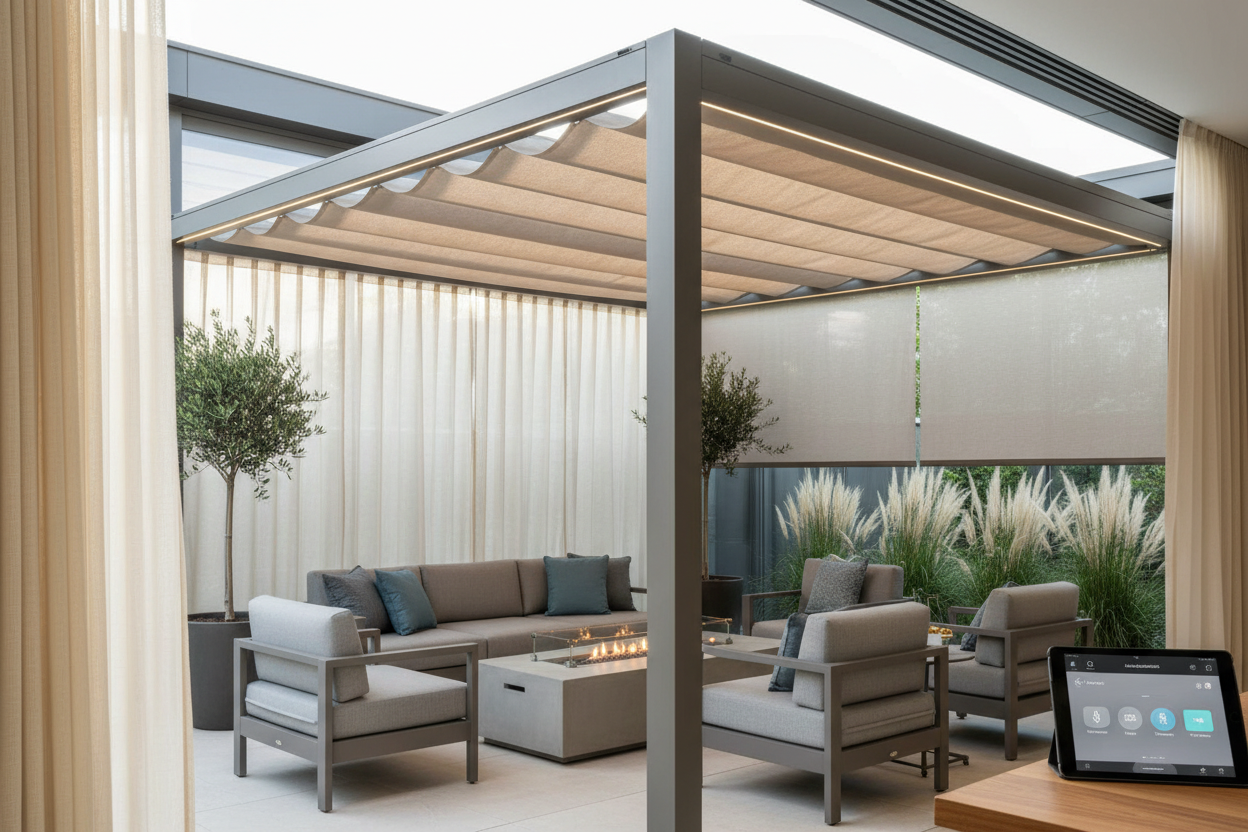

Smart Pergola Cloth Top: Adding Voice-Controlled Shade

Picture this: you are hosting a weekend barbecue on your patio. Just as the afternoon sun drops and starts blinding your guests, you do not have to abandon the grill to manually crank a heavy canopy. Instead, a simple voice command quietly extends your pergola cloth top, casting perfect shade while you keep flipping burgers. Upgrading an outdoor structure with smart, motorized shading bridges the gap between your indoor tech ecosystem and your backyard.

By the end of this guide, you will know exactly what it takes to retrofit your pergola with a connected canopy, from power requirements to weatherproofing and smart hub compatibility.

Key Specs at a Glance

• Weather Ratings: The motor and battery casing must be IP65-rated or higher to survive rain, dust, and humidity.
• Connectivity: Native Wi-Fi is rare outdoors. Expect to use an RF-to-Wi-Fi bridge (like Bond) or a long-range Z-Wave module.
• Power Torque: Outdoor motors require significantly more torque (often 30Nm+) to pull heavy canvas against wind resistance.
• Fabric Weight: Heavier waterproof fabrics drain batteries faster than breathable, UV-blocking mesh.

Power & Motor Options for the Outdoors

Hardwired vs. Battery Power

Outdoor shade motors need serious torque to pull a heavy pergola with cloth top along its tracks. Hardwiring a 120V motor directly to an outdoor junction box is the most reliable path. You never have to worry about charging, and the motor can handle heavy, waterproof acrylics without stuttering. However, if running conduit across your patio is a dealbreaker, heavy-duty lithium-ion battery packs are a viable alternative. Just be prepared: pulling large outdoor shades drains batteries much faster than your indoor bedroom rollers.

Solar Panel Charging Realities

Many outdoor retrofit kits offer a solar panel add-on to trickle-charge the battery. In my testing, these are highly effective as long as the panel gets at least four hours of direct, unshaded sunlight daily. If your pergola is tucked under mature trees, the solar panel will barely keep up with daily use, and you will find yourself running an extension cord to manually charge the motor block every few months.

Smart Ecosystem Integration

Bridging the Gap to Alexa and HomeKit

Because Wi-Fi struggles to penetrate exterior brick walls, most motorized outdoor shades operate on RF (radio frequency) remotes. To get them talking to your smart home, you will likely need an RF bridge. Devices like the Bond Bridge or a Somfy Tahoma hub sit inside your house, connect to your Wi-Fi, and blast the RF signal out to the pergola. Once linked, you can easily pull them into Alexa, Google Home, or HomeKit to set up voice routines.

Weather-Based Automations

The smartest way to use these systems is by tying them to local weather data. Using platforms like SmartThings or Home Assistant, you can create a routine that automatically retracts the canopy if local wind speeds exceed 20 mph, protecting the fabric from tearing. You can also set the shade to deploy automatically when the temperature hits 85 degrees, keeping your patio furniture cool before you even step outside.

Living with a Motorized Canopy: My Installation Notes

I retrofitted my backyard cedar structure last spring. The outdoor motor makes a low, industrial hum when operating—definitely louder than my indoor smart blinds, but perfectly acceptable given the outdoor setting. The convenience is undeniable, but it was not a flawless project.

One major oversight on my part: I didn't tension the steel guide wires enough during the initial install. The first time a 15mph gust hit while the shade was extending, the fabric billowed up and almost derailed the track mechanism. I had to get back on the ladder and use a turnbuckle to pull everything dangerously tight. I also learned that my smart hub's standard sunset routine doesn't account for the neighbor's two-story house blocking the late afternoon sun, so I had to switch to a custom time-offset schedule to get the shade right when I actually needed it.

Frequently Asked Questions

Can I still open my motorized pergola canopy manually during a power outage?

It depends on the motor type. Most hardwired tubular motors lock in place when unpowered, meaning you cannot physically pull the shade open without risking damage to the gears. Always check if your specific model has a manual override crank.

How long do batteries last in an outdoor smart shade?

For a standard 10x12 foot canopy used twice a day, a fully charged high-capacity lithium-ion motor will typically last 3 to 5 months. Adding a solar panel can extend this indefinitely, provided it receives adequate sunlight.

Does rain ruin the motorized track system?

The tracks themselves are usually rust-resistant aluminum or stainless steel, but the fabric matters. If you roll up a soaking wet canopy, it can develop mold quickly. It is best to wait for the fabric to dry before sending the retraction command via your smart home app.
