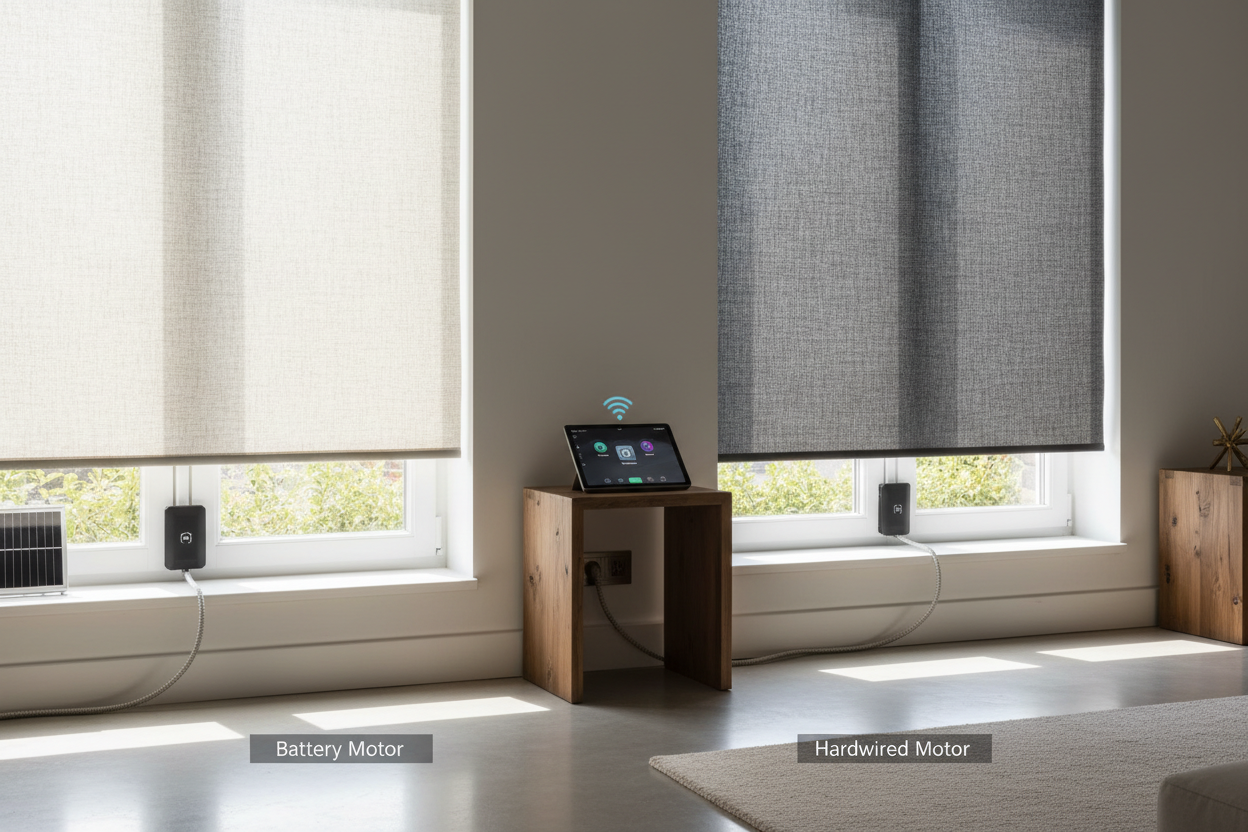

Smart Rollup Blind Guide: Battery vs. Hardwired Motors

Imagine you are settled on the couch for a movie night, popcorn in hand, but the setting sun is blasting a glare directly onto your TV screen. Instead of getting up, you mutter a quick voice command, and the room dims instantly. This is the practical reality of installing a smart rollup blind. Beyond the cool factor, automating your window treatments offers tangible benefits for energy efficiency, security while you're on vacation, and protecting your furniture from UV damage.

Key Specs at a Glance

Before you start drilling holes or buying retrofit motors, it is crucial to understand the technical landscape. Here is a quick breakdown of what to look for when shopping for smart roll up shades.

Installation Types: Rod vs. Track Systems

When automating roll up window blinds interior setups, you generally have two paths: replacing the entire unit or retrofitting the existing mechanism.

Retrofit Chain Drivers

If you already have a roll up window curtain or shade installed, the easiest entry point is a chain driver (like the Soma Smart Shades or Aqara E1). These devices clip onto the beaded chain and physically pull it. While installation takes five minutes, they can be noisy (often 50dB+) and struggle with heavy window roll ups. They are best for smaller windows where you don't want to remove the existing hardware.

Tube Motors

For a cleaner look, you insert a tubular motor inside the metal roller tube of your shade roll up. This requires measuring the inner diameter of your tube (usually 38mm or 40mm). This method hides the technology completely, resulting in shades that roll up silently and smoothly. This is the preferred method for a professional finish.

Power Options: Managing the Juice

The biggest debate in the community is power. Hardwired is "set and forget," but requires tearing up drywall to run low-voltage lines to the window frame. Battery motors have improved significantly; most modern roll out blinds with integrated batteries last 6 to 12 months on a single charge.

If you go the battery route, look for motors with USB-C charging ports. Older micro-USB models are a pain to connect without a ladder. For south-facing windows, a small solar panel taped behind the valence can keep the battery topped up indefinitely.

Smart Integrations and App Features

Hardware is only half the battle. You need your shade roll ups to talk to your ecosystem. Avoid proprietary WiFi bridges if possible; they clutter your router. Instead, look for Zigbee or Thread-enabled motors.

• Noise Levels: Check the dB rating. Anything under 40dB is whisper-quiet. Above 55dB, and you will hear the motor whine over a TV.
• Weight Capacity: A standard battery motor handles about 4kg to 5kg. If you are using heavy blackout vinyl or velvet window shades that roll up, you need a high-torque motor (2Nm or higher).
• Soft Stop: High-end motors slow down right before the shade hits the top or bottom, preventing that cheap "clack" sound.

Living with Rollup Blind: Day-to-Day Reality

I have been living with a mix of retrofit chain drivers and tubular motors for about two years now, and there are nuances the spec sheets don't tell you. The first thing I noticed was the "drift." Over a few months, the bottom limit of my battery-powered shade roll up would shift by about an inch due to fabric stretching and motor calibration drift. I now have a monthly reminder to reset the limits so they line up perfectly with the window sill.

Another detail is the sound frequency. While my bedroom blinds are technically "quiet" at 42dB, the pitch is a high-frequency whir that is very noticeable in a dead-silent house at 6:00 AM. It’s not enough to wake me up with a jump, but it certainly pulls me out of deep sleep—which is actually a nicer way to wake up than a jarring alarm clock. Also, if you use voice assistants, expect a 1-2 second latency with cloud-based WiFi motors. My local Zigbee blinds respond instantly, but the WiFi ones always have that brief "thinking" pause.

Conclusion

Upgrading to a smart rollup blind is one of the few smart home projects that actually changes how you interact with your home environment. Whether you choose a simple chain driver or a custom hardwired tube motor, the ability to control natural light with a voice command or automation script is a massive quality-of-life upgrade.

Frequently Asked Questions

How long do the batteries last in smart roll up shades?

On average, with one up/down cycle per day, a lithium-ion battery motor will last between 6 and 9 months. Adding a solar panel can extend this indefinitely.

Can I still move the blinds manually if the power goes out?

Generally, no. Most motorized window roll ups lock the mechanism to hold the shade in place. However, some specific "dual-operation" models allow for manual override, though they are rare and expensive.

Do I need a hub for my smart blinds?

It depends on the protocol. Bluetooth motors work directly with your phone but have limited range. Zigbee and Z-Wave motors require a compatible hub (like SmartThings or Hubitat). WiFi motors usually connect directly to your router but may require a proprietary bridge for HomeKit support.
