Smart Shade Maintenance: How to Fix Telescoping Roller Shades

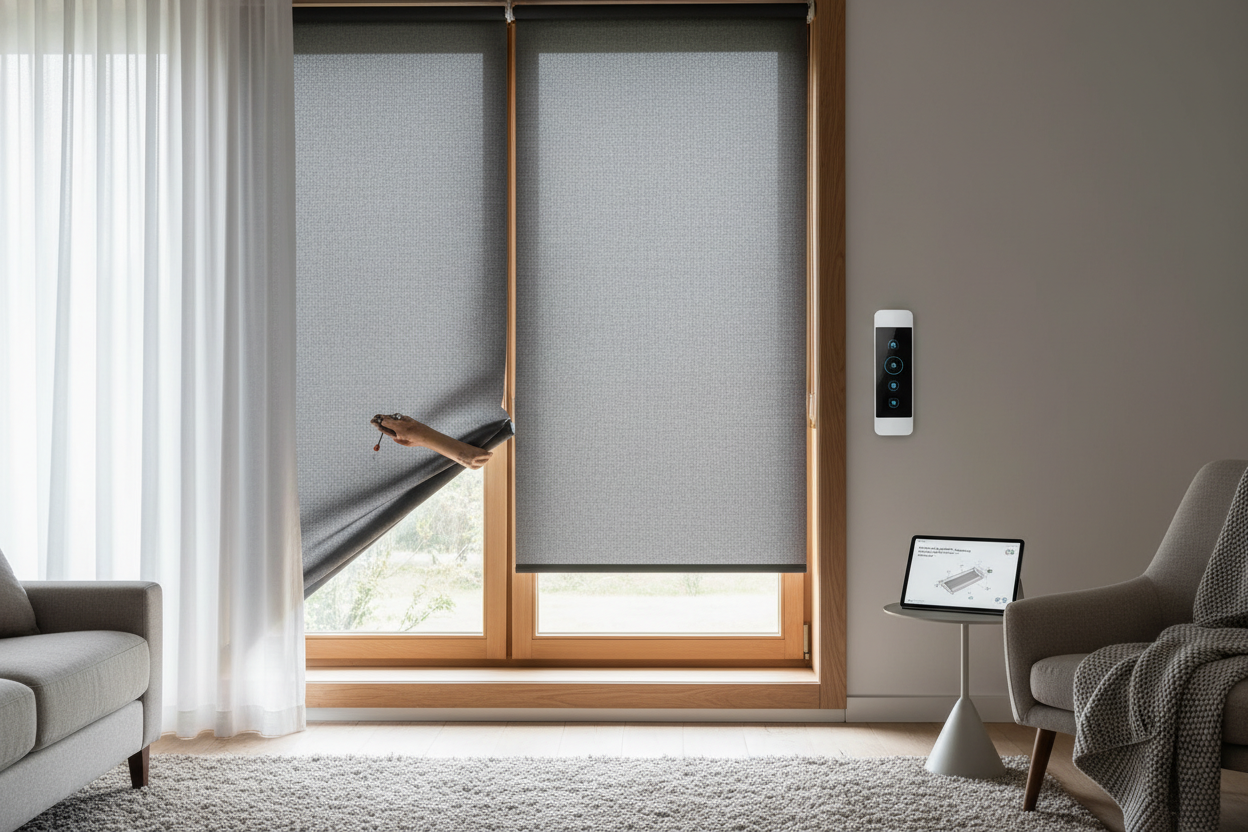

Imagine this: You’re lying in bed, you utter the command, "Alexa, Good Morning," and your blackout shades begin to rise. But instead of a clean, uniform ascent, the left shade starts drifting sideways, the fabric bunching up against the bracket with a cringe-worthy crunching sound. This is called "telescoping," and it’s the quickest way to burn out an expensive smart motor or fray custom fabric.

Whether you are running high-end Lutron Serenas or a DIY retrofit solution like SwitchBot, mechanics still matter. Even the smartest ecosystem can't overcome physics. If your how to fix telescoping roller shade strategy is just to tug on it, you risk damaging the internal gearing of the motor. Here is the technical guide to diagnosing and correcting uneven rolls to keep your automation running smooth.

Quick Hardware Diagnostics

Before attempting a physical repair, identify your motor type. The fix requires accessing the roller tube, which varies by housing.

Feature	Details to Check	Why It Matters for Telescoping
Motor Type	Tubular (Somfy/Rollease) vs. External Drive (Eve MotionBlinds)	Tubular motors are heavier; unlevel mounting causes faster drift.
Power Source	Battery Wand vs. Hardwired (DC)	Battery packs inside the tube can create uneven weight distribution if shifted.
Connectivity	Zigbee / Thread / WiFi	Check app logs. If the motor reports "Obstruction" errors, telescoping is likely the cause.

The Root Cause: Why Smart Blinds Telescope

A telescoping roller shade occurs when the fabric rolls into a cone shape rather than a perfect cylinder. In the smart home world, this is rarely a fabric defect; it is almost always an installation tolerance issue.

1. The Level Check (The 90% Case)

Smart blinds often utilize heavy cassettes or fascias to hide the battery packs. If your mounting brackets aren't perfectly level, gravity pulls the heavy fabric to one side. A variance of just 2mm can cause significant drift over a 6-foot drop.

2. The "Tape Shim" Method

This is the industry-standard fix for a roller blind not rolling up straight. It involves altering the diameter of the roller tube to counterbalance the drift.

• Step 1: Lower the shade completely via your app (or voice command) until the bare metal or cardboard tube is exposed.
• Step 2: Identify the side the fabric is drifting toward.
• Step 3: Place a small piece of masking tape (1-2 inches) on the roller tube on the opposite side of the drift.
• Step 4: Raise the shade. The tape acts as a shim, slightly increasing the lift on that side to straighten the roll.

Impact on Smart Motor Performance

Noise Levels (dB) and Friction

When a shade telescopes, the fabric edge rubs against the idle bracket or the motor head. In a quiet bedroom, a standard roller shade motor should operate between 40dB and 45dB. If you hear a rhythmic scraping or the motor pitch whining higher (indicating increased torque load), your shade is telescoping. Ignoring this friction will drain battery-powered units 20-30% faster.

Weight Capacity and Drag

Smart motors are rated for specific torque (e.g., 1.1Nm or 2Nm). When fabric jams against the side bracket, the resistance spikes. Most smart controllers (like Aqara or Bond Bridge) don't have sensitive enough amperage detection to stop the motor immediately, leading to burnt-out gearing or torn fabric edges.

Living with how to fix telescoping roller shade: Day-to-Day Reality

I learned this lesson the hard way with a retrofit IKEA Fyrtur setup in my home office. I noticed the issue not by looking at it, but by the sound. During a scheduled "Sunset" routine, the usual low hum of the motor was accompanied by a "zip-zip-zip" sound—the texture of the blackout fabric sawing against the metal housing.

The frustrating reality of fixing this in a smart home setup is the "reset" dance. After applying the tape shim, I had to reset the upper and lower limits on the motor because the thickness of the tape slightly changed the roll diameter. The blind thought it was closed, but there was a half-inch gap at the sill. It’s a nuance most manuals don’t mention: if you shim the tube to fix telescoping, you must recalibrate your Zigbee or Z-Wave limits immediately after, or your "100% Closed" status will be inaccurate.

Conclusion

A telescoping shade isn't just an aesthetic annoyance; it's a hardware killer. By using the tape method and ensuring your mounting brackets are perfectly level, you protect the longevity of your smart motors and ensure your automated mornings remain smooth and silent. Don't let a crooked roll ruin your ecosystem.

Frequently Asked Questions

Does telescoping drain my smart blind battery faster?

Yes. The friction caused by the fabric rubbing against the brackets forces the motor to apply more torque, which increases power consumption and depletes batteries significantly faster.

Can I use duct tape to fix the telescoping?

Avoid duct tape. It is too thick and the adhesive can melt over time due to heat from the sun or motor. Simple masking tape or painter's tape allows for finer adjustments (layering) and is safer for the fabric.

Do I need to reset my hub after fixing the shade?

You generally don't need to reset the Hub (Gateway), but you should recalibrate the specific device's upper and lower limits within the app, as the rolled diameter may have changed slightly.
