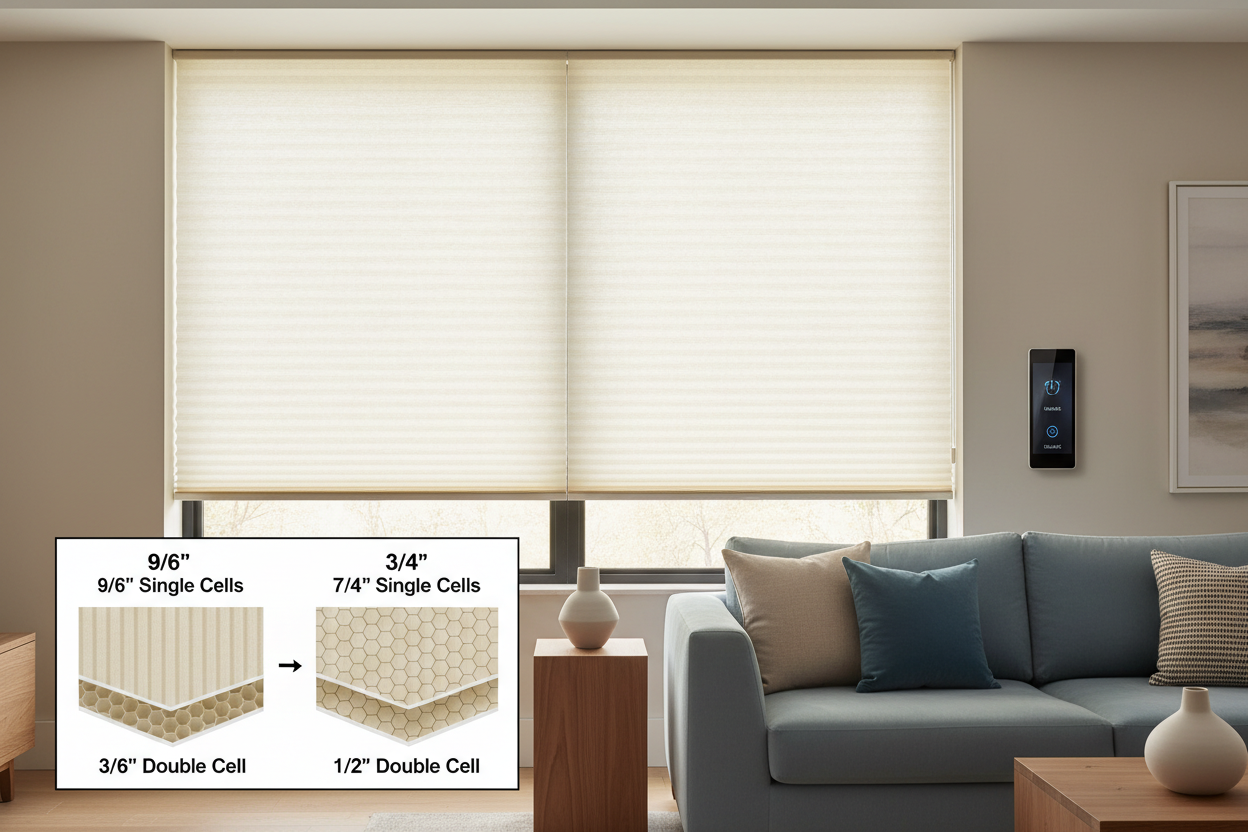

Smart Shade Sizing: 9/16 vs 3/4 Inch Cells Explained

Imagine this: You’ve finally set up your evening routine. You say, "Alexa, turn on Movie Mode," and your lights dim, but your motorized shades struggle to close, or worse, they look visually cluttered against your expansive sliding glass doors. While we often obsess over the protocol (Zigbee vs. Thread) or the power source, the physical architecture of the shade is just as critical for a smooth smart home experience.

Choosing between 9/16 vs 3/4 cellular shades isn't just a design choice; it impacts the weight load on your smart motors, the stack height when fully raised, and the insulation efficiency that helps your Ecobee or Nest thermostat run less often. Let's break down the technical and aesthetic differences to ensure your connected blinds perform as well as they look.

Quick Specs: The "Rule of Thumb" for Sizing

If you are in a rush to order your custom retrofit shades, here is the cheat sheet regarding cellular shade cell size:

• 9/16 Inch (and 1/2 Inch): Best for small to medium windows (bathroom, kitchen). The tighter pleats offer a busy, textured look but add significant weight per vertical foot.
• 3/4 Inch: The industry standard for medium to large windows. Offers a balanced look and lighter weight, making it ideal for battery-powered retrofit motors.
• 1 1/4 Inch: Reserved for massive spans or sliding doors to maintain scale.

Visual Scale and Aesthetics

When asking what size cellular shades should i get, start by looking at the window frame depth and height. Smart home aesthetics rely on clean lines. A 9/16" cell on a massive picture window can create a dizzying, repetitive pattern because there are so many pleats. Conversely, a large 3/4 vs 1 1/4 cellular shades decision usually leans toward the larger cell for floor-to-ceiling glass to keep the view less obstructed.

What is Considered a Large Window for Cellular Shades?

Generally, any window wider than 36 inches or taller than 60 inches benefits from the larger 3/4" cell. If you install a 9/16" or 3/8 vs 3/4 shade on a window this size, the stack (the gathered fabric when the shade is up) will be much thicker, potentially hiding more of your view.

Motor Load and Smart Performance

As a tech reviewer, this is the metric I care about most. Cellular shade size dictates the weight of the fabric.

1/2 vs 3/4 cellular shades: The math is simple. A 9/16" or 1/2" shade requires more pleats (more fabric) to cover the same vertical distance than a 3/4" shade. More fabric equals more weight. If you are using battery-powered motors (like Eve MotionBlinds or retrofit kits from Soma), a heavier shade drains the battery faster and increases the noise level (dB) of the motor as it strains to lift the stack.

Insulation and R-Value

Your motorized shades are a part of your climate control system. The honeycomb cell size creates air pockets that trap heat. While 3/4 single cell vs 1/2 double cell is a common debate, double cells generally offer better insulation (higher R-value). However, double cells are significantly heavier. For smart homes, a 3/4" single cell is often the "Goldilocks" zone—light enough for quiet motor operation but large enough to provide substantial thermal breaks.

How to Measure Cellular Shade Cell Size

If you are retrofitting an existing setup and need to match new smart shades to old manual ones, you need to know how to measure pleat size of cellular shades accurately.

• Step 1: Do not measure the front face of the fabric height.
• Step 2: Look at the shade from the side profile (the honeycomb shape).
• Step 3: Measure the distance from the front of the cell to the back of the cell. This depth usually corresponds to the marketed size (e.g., 3/8, 9/16, or 3/4 inch).

Knowing how to measure cell size of cellular shades ensures your new motorized units won't protrude awkwardly from the casing.

Living with 9/16 vs 3/4 cellular shades: Day-to-Day Reality

I recently retrofitted the windows in my home office and living room, giving me a direct comparison of these sizes. In the office, I have smaller 9/16" double-cell shades. I noticed something specific about the smart motor noise: it has a lower-pitched, slightly straining "hum" because the double-cell fabric is dense and heavy.

In the living room, I went with 3/4" single-cell shades. The difference in "stack height" is what really struck me. When the living room shades are fully open via voice command, they tuck away neatly, barely taking up 3 inches of headroom. The office shades, despite covering a shorter window, stack up nearly 5 inches, blocking a chunk of natural light at the top. If you value maximizing daylight when the shades are open, the larger 3/4" cell is the clear winner for a cleaner, "smart" look.

Conclusion

When deciding what size cell for cellular shades in a smart home, the 3/4" size is generally the superior choice for main living areas. It offers a lighter load for motors, a smaller stack height for better views, and a modern aesthetic. Save the 9/16" or smaller cells for small bathroom windows or doors where frame depth is limited.

Frequently Asked Questions

Does cell size affect the battery life of my smart blinds?

Yes. Smaller cells (like 3/8" or 9/16") require more fabric rows to cover the window, resulting in a heavier shade. This forces the motor to work harder, depleting rechargeable batteries faster than the lighter 3/4" options.

Can I mix different cell sizes in the same room?

It is not recommended. The visual difference in pleat spacing is very noticeable. Stick to one size per room for a cohesive look.

What size cellular shades fit shallow window depths?

If you have very shallow window frames and want an inside mount, 3/8" or 9/16" shades are better as the headrail is typically narrower, allowing for a flush mount where a 3/4" shade might stick out.
