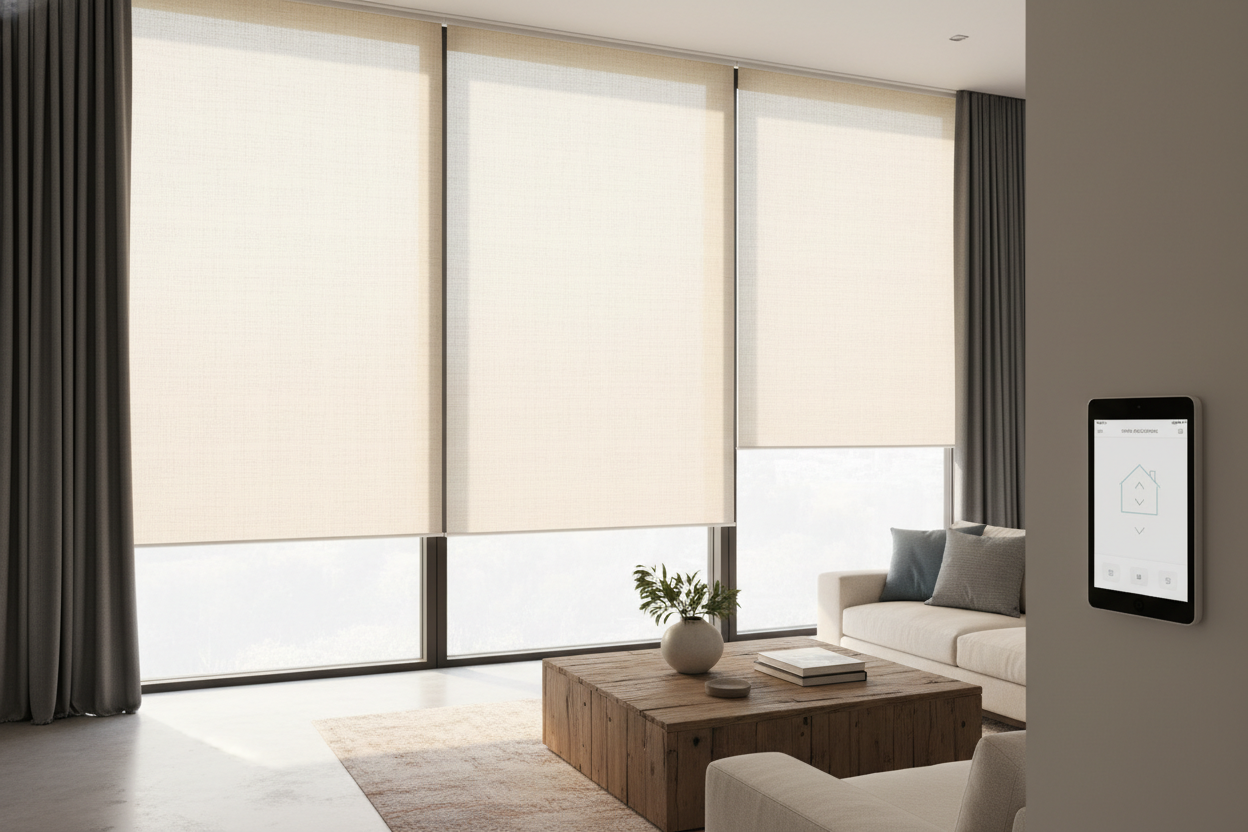

Smart Wide Window Shades: Solving the Heavy Lifting Problem

Imagine settling onto your couch for a movie, but the setting sun is blasting through your 12-foot sliding glass doors, washing out the screen. Instead of pausing the film and physically wrestling with a heavy, corded blind, you simply say, "Alexa, movie time." The glare vanishes. This is the practical magic of smart wide window shades. Beyond the cool factor, motorized solutions solve the physical burden of managing massive fabric spans that are often too heavy to operate manually with ease.

Quick Specs: What Huge Windows Require

When you are covering spans wider than 96 inches, standard motor specs don't apply. Here are the critical thresholds you need to look for to ensure your motor doesn't burn out within a year:

• Minimum Torque: Look for at least 2.0Nm to 6.0Nm motors depending on fabric weight (velvet needs more torque than solar screen).
• Tube Diameter: 2 inches (50mm) or larger to prevent the tube from bowing in the center.
• Connectivity: Z-Wave or Zigbee preferred for range; Wi-Fi can be spotty on large metal-framed windows.
• Power Source: Hardwired is recommended for shades for wide windows due to the high energy consumption of lifting heavy loads.

The Physics of Wide Shades: Sag and Tube Deflection

The biggest enemy of wide shades for windows is gravity. As the width increases, the metal roller tube inside the headrail wants to bow in the middle—industry pros call this "deflection" or the "smile effect."

If you buy a budget smart shade for a 10-foot window, you will likely see ripples in the fabric shaped like a V. High-end systems utilize reinforced aluminum tubes (often engineered with internal ribs) to remain rigid. When shopping, ask the manufacturer specifically about their "deflection rate" for your specific width.

Powering the Drive: Battery vs. Hardwired

While battery wands are convenient for standard windows, long shades for windows (floor-to-ceiling) drain batteries rapidly. A heavy blackout fabric on a 10-foot span requires significant torque to lift.

The Battery Route

If you cannot run wires, opt for a rechargeable Li-ion internal battery rather than external AA wands. Expect to recharge every 3-5 months rather than the standard 12 months due to the weight load. Look for motors with "soft start/stop" features to reduce the jerk motion that drains power spikes.

The Hardwired Advantage

For any shade over 100 inches wide, low-voltage (24V) hardwiring is the gold standard. It provides consistent torque, meaning the shades move at the exact same speed every time—crucial if you have multiple wide windows side-by-side. You never have to drag out a ladder to charge them.

Smart Integrations and Noise Levels

Not all motors sound the same. On a massive window, a cheap motor acts like a soundboard, amplifying the mechanical whine. Look for decibel ratings under 45dB. Brands like Somfy (using the Sonesse line) or Lutron are engineered for near-silent operation.

regarding control, avoid proprietary RF remotes if you want true smart home integration. Look for a "Bridge" (like Bond Bridge) or native Matter support. This allows you to group your wide shades with your lighting scenes, ensuring the lights turn on exactly when the privacy shades lower.

Living with Wide Window Shades: My Installation Notes

I recently installed a 110-inch smart roller shade in a living room with south-facing exposure. Here is a detail the brochures won't tell you: the light gap is real. Because the motor for a shade this heavy is substantial, the "deduction" (the gap between the fabric and the window frame) on the motor side was nearly an inch.

In the mornings, a laser beam of sunlight would cut through that gap. I had to retrofit side channels (U-channels) to block it. Also, the sound is different. Unlike my smaller bedroom shades which make a high-pitched whir, this massive unit produces a low-frequency hum due to the torque required. It’s not loud, but it’s a distinct, mechanical presence that reminds you there is some serious engineering happening above the glass.

Conclusion

Upgrading to motorized options for your large glazing isn't just about luxury; it's about saving your back and protecting your furniture from UV damage effortlessly. While the upfront cost is higher due to the reinforced tubes and high-torque motors required, the usability of smart wide window shades pays for itself every time you close the room down for the night with a single voice command.

Frequently Asked Questions

How long do batteries last on extra-wide shades?

Due to the increased weight of the fabric and the torque required, expect 30% to 50% less battery life than standard shades. Heavy daily use on a 10-foot shade usually requires recharging every 4 to 6 months.

Can I manually pull the shades down if the power goes out?

Generally, no. Most motorized roller shades lock in place when unpowered. However, some manufacturers offer "manual override" clutches, though these are rare on extra-wide models due to the mechanism's complexity.

Do I need a hub for these shades?

It depends on the motor. Wi-Fi motors connect directly but can suffer from connection drops on large windows. Zigbee and Z-Wave motors (highly recommended for reliability) require a compatible hub like SmartThings, Hubitat, or a dedicated manufacturer bridge.
