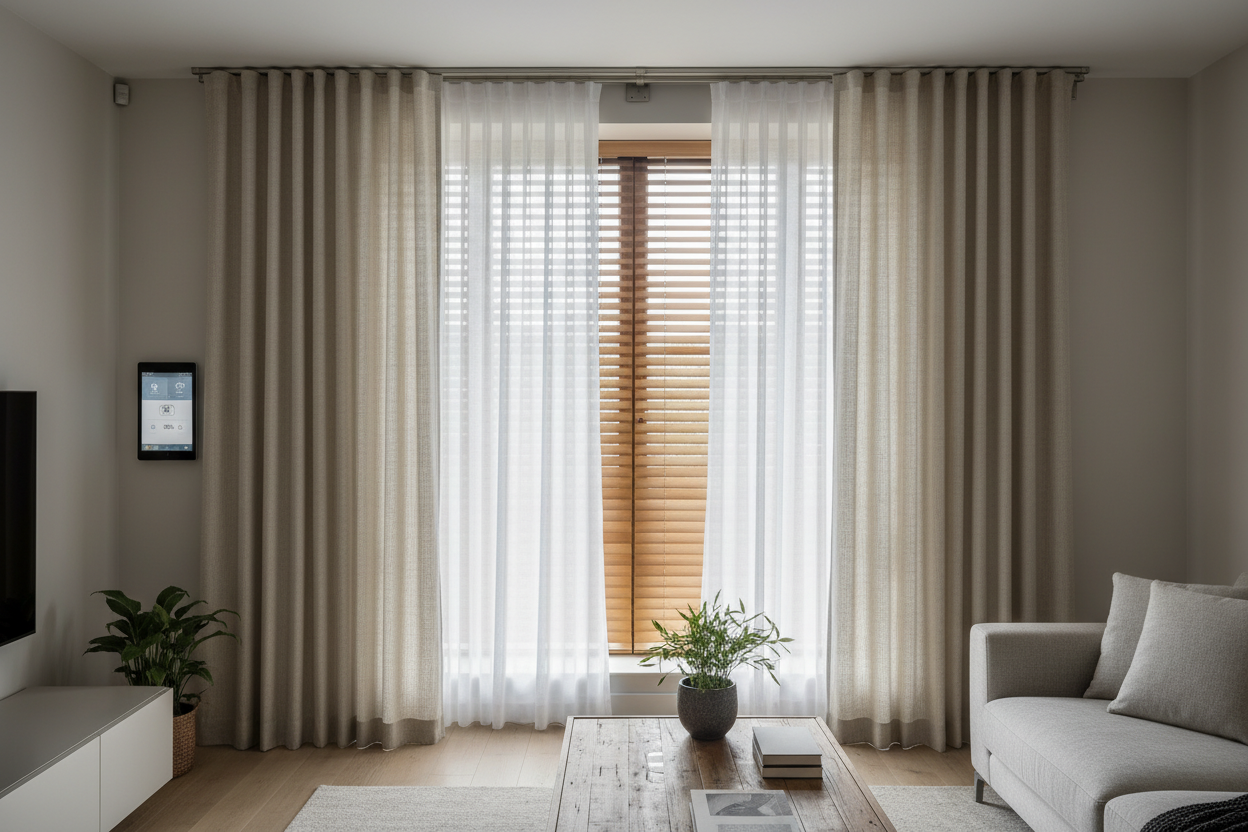

Smart Window Coverings Over Blinds: The Dual-Layer Guide

Imagine settling in for movie night. You don't just want privacy; you want total darkness. With a single voice command, your cellular shades lower for insulation, and heavy velvet drapes glide shut to kill the light bleed. This is the real utility of installing smart window coverings over blinds. While layering is often seen as a purely aesthetic choice, in the smart home world, it solves a functional problem: combining the light-filtering capability of blinds with the blackout and thermal properties of motorized drapes.

Quick Spec Check: The Clearance Rule

Before buying a motorized rod or retrofit bot, you must account for hardware depth. Smart motors add bulk.

• Minimum Projection Needed: Your curtain rod brackets must extend at least 3-4 inches past the blinds' headrail.
• Weight Capacity: Ensure your motor handles the combined weight of the fabric + the friction of dragging over a blind valance (if touching).
• Protocol: Zigbee (requires hub) offers faster response times than Wi-Fi for synchronized dual-layer movements.

Hardware Types: Tracks vs. Retrofit Bots

When selecting window treatments over blinds, you generally have two paths: replacing the hardware entirely or making your existing rod smart.

Motorized Tracks (The Pro Choice)

If you are starting from scratch, a dedicated motorized track (like those from Aqara or Somfy) is superior. These replace standard rods. The belt-drive systems are generally quieter, often sitting below 30dB, which is whisper-quiet. Because the motor is geared directly to the belt, they handle heavy blackout window treatments for over blinds much better than friction-based robots.

Retrofit Robots (The DIY Choice)

Devices like the SwitchBot Curtain or Aqara Curtain Driver E1 clamp onto your existing rod. These are excellent if you rent or love your current hardware. However, be aware of the "hump." If your rod has an extendable joint, the robot might struggle to traverse it smoothly, creating a stuttering noise. Calibration is critical here to ensure the robot stops exactly where the blinds end.

Power and Connectivity

Wiring a dual setup can be messy. If you already have hardwired blinds, you might not have a second junction box for the drapes.

• Battery/Solar: Most retrofit options offer 6-8 months of battery life. If your window treatment over blinds is heavy, expect that to drop to 4 months due to the higher torque required.
• Hardwired (DC): Best for high windows. You don't want to drag a ladder out to charge a curtain motor that sits above a blind header.

Smart Integrations and "Scenes"

The magic happens in the software. You aren't just opening a window; you are orchestrating a layer. In apps like Apple Home or Google Home, you should create a specific scene called "Blackout Mode."

This scene should trigger the blinds to close first, wait 5 seconds (to avoid fabric snagging on moving slats), and then draw the curtains. This staggering is essential when managing multiple window treatments over blinds to prevent mechanical collisions.

Living with Smart Layers: My Install Notes

I learned the hard way that physics doesn't care about smart features. When I installed a motorized velvet drape over my wood blinds, I didn't account for the "stack back"—the bunching of the curtain fabric when open. The motor would push the curtain all the way open, but the bunched fabric was so thick it pressed against the blind's tilt wand.

Every time the blinds tried to tilt open in the morning, I'd hear a grinding sound as the wood slats fought against the velvet bunching. I had to go into the app settings and virtually limit the "open" percentage to 90% rather than 100% to leave breathing room for the hardware. It’s a small tweak, but it’s the difference between a silent morning and waking up to the sound of a stalling motor.

Conclusion

Layering smart drapes over blinds is the ultimate upgrade for media rooms and bedrooms. It gives you the flexibility of filtered light during the day and total thermal isolation at night. Just measure your bracket depth twice—clearance is everything.

Frequently Asked Questions

Can I move the curtains manually if the power goes out?

Most dedicated motorized tracks have a "Touch & Go" feature where a manual tug activates the motor, but they also allow manual pulling during outages. Retrofit robots can be harder to drag manually due to the friction wheels clamping the rod.

Do I need a hub for these setups?

It depends on the brand. Wi-Fi versions usually connect directly to your router but drain batteries faster. Zigbee or Thread versions (recommended for large homes) require a compatible hub or border router for voice control.

How loud are the motors?

High-end tracks operate around 25-30dB (library quiet). Retrofit robots that run along a rod are louder, typically 40-50dB, producing a noticeable mechanical whir.
