Stop Paying Pros: A Complete Guide to DIY Cellular Shade Installation

Why Cellular Shades Are Worth the Effort

Cellular shades, frequently referred to as honeycomb shades, offer a unique combination of aesthetic softness and functional insulation. Their geometric design traps air at the window, providing a barrier against heat loss in winter and heat gain in summer. However, once the package arrives, many homeowners feel a sudden hesitation. The hardware can look confusing, and the fear of drilling unnecessary holes in window frames is real. Fortunately, the process is logical and manageable with the right approach.

While manufacturers differ slightly in their bracket designs, the core physics of hanging these shades remain consistent. Whether you are dealing with a custom order or a stock size from a big-box store, success lies in precise measurement and understanding your specific mounting depth. This guide covers the essential steps to achieve a professional look without the service fee.

Gathering the Right Tools

Before opening the box, ensure you have the necessary tools. Attempting to install shades with improper equipment often leads to stripped screws or crooked headrails. You will need a steel tape measure, a pencil, a power drill with a 1/16-inch drill bit (for pilot holes), a Phillips head screwdriver, and a level. If you are mounting into drywall rather than a wooden frame, you will also need appropriate drywall anchors. A step ladder is highly recommended to ensure you are working at eye level with the headrail.

A Lesson From Experience: Measure Depth, Not Just Width

I learned the importance of checking mounting depth the hard way during a renovation project a few years ago. I had ordered beautiful, blackout cellular shades for a bedroom. I measured the width perfectly, but I failed to account for the depth of the window casing. When I went to install the brackets for an inside mount, I realized the window crank handle protruded just enough to hit the back of the shade. I had to scramble to find shims to push the brackets forward, which created a gap that let light in—defeating the purpose of blackout shades. The lesson is clear: always check for obstructions like cranks, alarm sensors, or protruding locks before you drill your first hole.

Understanding Inside vs. Outside Mounts

The first decision in the installation process happens before you even pick up the drill. An inside mount places the shade inside the window frame, providing a clean, built-in look. An outside mount attaches the shade to the wall above the frame or on the trim itself, which is useful if the window is too shallow or out of square.

For an inside mount, the brackets generally screw into the top of the window frame (the lintel). For an outside mount, they screw into the wall or the face of the trim. Most brackets provided by manufacturers are "universal," meaning they have holes drilled on both the top and the back to accommodate either method.

Positioning the Brackets

Proper bracket spacing is critical for the structural integrity of the shade. A general rule is to place the two end brackets approximately 2 to 3 inches in from the edges of the window frame. If your shade is wider (usually over 30 inches), the manufacturer will provide support brackets to be installed evenly between the two end brackets.

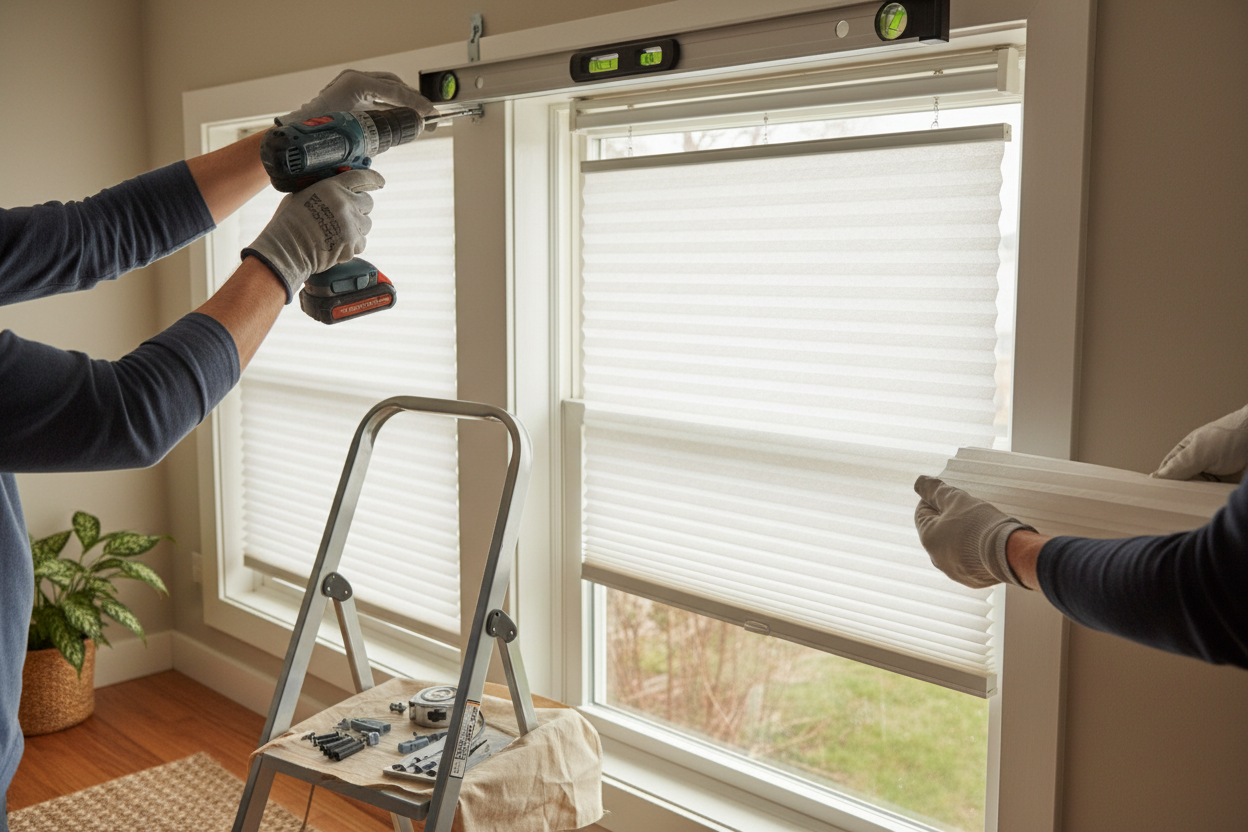

Hold the bracket in place and mark the screw holes with your pencil. If you are following blinds com cellular shade installation protocols, they often emphasize using a level at this stage. Even if your window frame looks straight, houses settle over time. Installing brackets into a slightly crooked frame will result in a shade that doesn't roll up evenly. Use the level to ensure your marks are perfectly aligned horizontally.

Drilling and Securing

Once your holes are marked, set the brackets aside. Drill pilot holes using your 1/16-inch bit. This step is vital; screwing directly into wood without a pilot hole can cause the wood to split, compromising the hold. Secure the brackets using the provided screws. Ensure they are tight, but be careful not to overtighten, which can warp the metal bracket and make snapping the headrail in difficult later.

Navigating Brand-Specific Nuances

While the general process is standard, specific brands have unique locking mechanisms. For instance, if you are figuring out how to install blinds to go cellular shades, you will likely encounter a spring-loaded metal clip. The front of the headrail usually hooks onto the front lip of the bracket, and then you rotate the back of the headrail upward until the spring snaps into place. It requires a firm, confident motion.

Alternatively, if you bought stock shades from a home goods retailer, you might be looking for Real Simple cordless cellular shade instructions. These often utilize a plastic bracket system that can feel different from the metal clips used by custom manufacturers. With these, it is crucial to ensure the fabric is not caught in the bracket mechanism during the snap-in process. For cordless models, you must also attach the plastic handle to the bottom rail. This usually slides on or snaps into a pre-drilled groove in the center of the bottom rail.

Handling the "Accordion" Material

The fabric of cellular shades is delicate. Many DIYers search for how to install accordion blinds because the pleated fabric behaves like an accordion. During installation, keep the shade fully compressed (raised). Do not lower the shade until the headrail is completely clicked into the brackets. If you let the shade drop while trying to mount it, the fabric can obscure your view of the brackets and increase the risk of damaging the pleats or getting grease from your hands on the material.

Final Adjustments and Troubleshooting

Once the headrail is snapped in, test the operation. Pull the shade down slowly. If it is a cordless model, you may need to operate it up and down a few times to engage the tension mechanism. If the shade sits unevenly at the bottom, check if the headrail is centered in the brackets. Sometimes, sliding the headrail slightly to the left or right can balance the weight distribution.

If the shade refuses to snap into the brackets, do not force it with a hammer or heavy object. Check to see if the bracket screws are not flush; a protruding screw head can prevent the headrail from seating properly. Back the screw out slightly and drive it back in straight to ensure a flat surface.

By following these steps and respecting the specific requirements of your mounting depth and bracket type, you can achieve a flawless installation that enhances both the comfort and value of your home.
