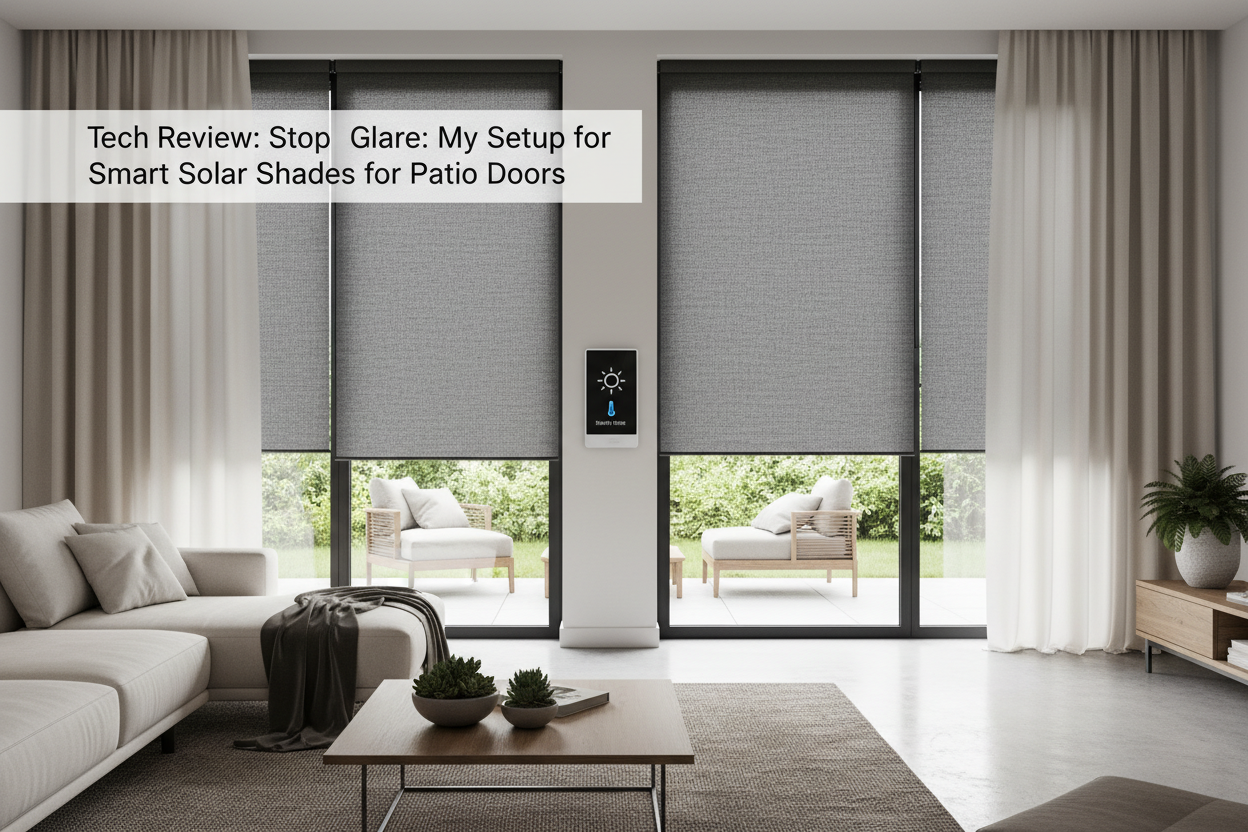

Stop the Glare: My Setup for Smart Solar Shades for Patio Doors

We have all been there: it is 3:00 PM, you are trying to watch a movie or work on your laptop, but the afternoon sun turns your living room into a sauna and washes out your screen. Large glass sliders are great for views, but terrible for temperature control. This was my reality until I upgraded to smart solar shades for patio doors. The goal wasn't just to block light; it was to control the environment by voice without leaving the couch, and to secure the house when I'm traveling by simulating occupancy.

Key Specs at a Glance

• Power Source: Rechargeable Li-ion battery (USB-C) or Plug-in DC.
• Connectivity: Zigbee 3.0, Z-Wave, or Wi-Fi (2.4GHz).
• Motor Torque: Look for at least 1.1Nm for wider patio shades.
• Openness Factor: 1% (Privacy/Heat Block) to 5% (Better View).
• Platform Support: Alexa, Google Home, HomeKit (via Bridge).

Installation Realities: Weight and Width

When installing a sun shade for patio door applications, physics is your biggest enemy. Unlike standard windows, patio doors are wide—often requiring shades spanning 70 to 90 inches. This adds significant weight.

During my setup, I opted for a split-rail installation. Instead of one massive roller which strains the motor and battery, I installed two separate solar roller shades for patio doors side-by-side. If you go this route, ensure your smart motor is rated for the load. A standard 0.5Nm motor will stall on a heavy 8-foot blackout fabric; you need a high-torque motor (1.1Nm or higher) to lift that weight smoothly.

Power & Battery Options

Most retrofits today use rechargeable lithium-ion battery wands hidden inside the roller tube. In my testing, a fully charged motor on a heavy patio door lasts about 4 to 6 months with two up/down cycles per day.

If your door gets direct sunlight (which it likely does if you are buying solar shades), I highly recommend attaching a small solar trickle-charging panel behind the valance. It keeps the battery topped off so you never have to get the ladder out to recharge.

Ecosystem Integration and Smart Control

Smart solar blinds for patio doors generally require a bridge if they run on Zigbee or Z-Wave, though Wi-Fi versions connect directly to your router. I prefer Zigbee for its low latency and local control.

Setting the "Sun Check" Routine

The real magic happens with light sensors. I paired my shades with a separate lux sensor. When the light intensity hits 2,000 lux, the shades lower to 50%. This keeps the room cool passively. In the app, look for features like "Soft Stop" configuration to prevent the heavy bottom bar from clanking against your door frame.

Living with solar shades for patio doors: Day-to-Day Reality

After six months of daily use, here is the unpolished truth. The convenience is undeniable, but there are quirks. The most noticeable one is the "whir" of the motors. While manufacturers claim silent operation, in a quiet living room, a 45dB motor sounds surprisingly loud, especially when two shades are moving simultaneously.

Speaking of simultaneous movement, that is another nuance. Even with high-end motors, my two side-by-side shades rarely move at the exact same speed. One usually finishes about two seconds before the other. It doesn't affect functionality, but if you are obsessive about symmetry, that slight lag might bug you. Also, be prepared for the "light gap"—the 1-inch slice of sunlight that sneaks in between the two rollers in the center of the door.

Conclusion

Upgrading to motorized solar shades is one of the most practical investments for a living room. It protects your furniture from UV fading and significantly lowers cooling costs. Just be sure to spec your motor correctly for the weight of the fabric.

Frequently Asked Questions

How loud are the motors during operation?

Most retrofit motors range between 40dB and 55dB. High-end brands like Lutron or Somfy are closer to a whisper (35-40dB), while budget Tuya-based motors have a more distinct mechanical hum.

Do I need a Hub or Gateway?

It depends on the protocol. Wi-Fi motors connect directly to your phone/router. Zigbee and Thread/Matter motors require a compatible hub (like an Echo Show, SmartThings, or Apple HomePod) to communicate with your network.

Can I move them manually if the power goes out?

Generally, no. Most motorized roller shades lock the gear mechanism when not in use. However, some newer "dual-drive" models allow for manual pulling, though they are rarer and more expensive.
