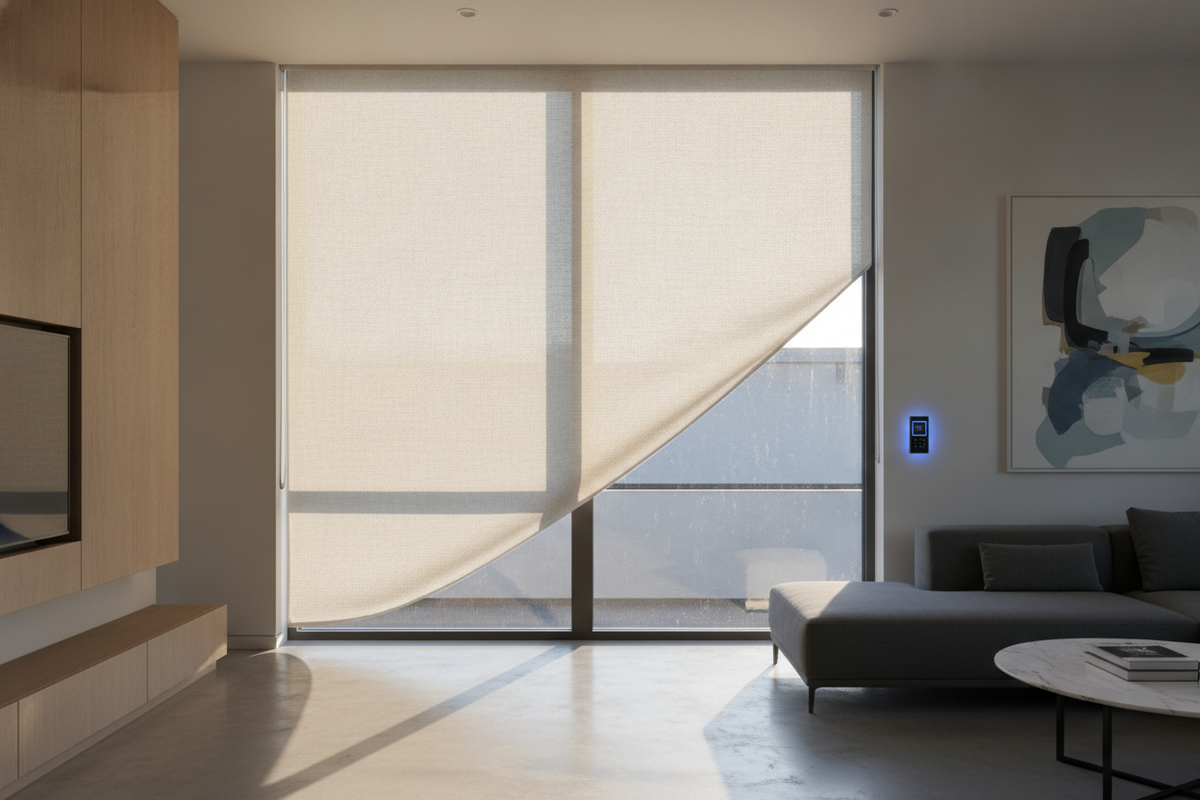

Telescoping Roller Shade: How to Fix Uneven Rolling

A window treatment should retract evenly without bunching, scraping, or wandering off to the side. When a shade rolls unevenly along its upper tube, the issue is commonly referred to in window fashion mechanics as telescoping. A telescoping roller shade shifts gradually toward one mounting bracket as it rises, threatening to fray textile edges, increase motor drag, and ruin the clean aesthetic of an automated or manual window covering. Understanding how to diagnose and resolve this tracking error ensures smooth operation and preserves your fabric over many years of daily use.

Understanding the Telescoping Roller Shade: Geometry of Roll-Up Tracking

To grasp why a shade tracks improperly, it helps to review the basic physics of winding. A roller blind operates on a continuous cylindrical tube. When the shade fabric begins its ascent, it lays down an initial base layer on the barrel. In a perfectly aligned system, the edge of the textile forms a clean, vertical ninety-degree angle relative to the horizontal axis of the tube. When conditions deviate from this ideal alignment, the roller blind not rolling up straight becomes noticeable almost immediately.

Telescoping is driven by a compounding spiral principle. If one side of the tube has an effective diameter even slightly different from the other side, or if the mounting points are out of parallel, the fabric will take the path of least resistance. The material pulls toward the side with the larger effective diameter or the lower gravitational slope. What begins as an imperceptible skew on the initial revolution compounds with every subsequent wrap. By the time the shade reaches the top of its travel cycle, that minute deviation expands into a noticeable lateral shift. Readers exploring motorized architectures in our comprehensive roller blind shade guide will recognize that maintaining concentric winding is central to reliable operation.

Primary Physical Causes of Lateral Shade Drift

Before applying any mechanical adjustments, it is vital to isolate the underlying cause of lateral drift. In general residential and commercial installations, several physical variables contribute to sideways movement:

• Out-of-Level Mounting Brackets: Gravity always pulls hanging fabric straight down. If the mounting brackets are installed with even a slight tilt, the suspended fabric hangs vertically while the tube remains angled. As the roller turns, the fabric feeds onto the tube at an angle rather than perpendicularly, forcing it to walk toward the lower side.
• Window Frame Imperfections: Architectural window casings are rarely perfectly plumb and square. Settling walls, uneven drywall beads, and shifting trim can create trapezoidal openings. When brackets are mounted flush to an unlevel jamb without independent verification, tracking errors naturally occur.
• Tube Deflection on Wide Spans: As window widths increase, the center of the aluminum tube naturally flexes under the weight of the textile. This slight downward bow alters tension distribution across the fabric, causing the edges to feed faster than the center.
• Asymmetrical Fabric or Hem Weight: In some shades, the bottom rail or the inner fabric spline may not be seated completely flat. Any small wrinkle or excess stitching thickness at the edge changes the balance of the rolled textile.

Step-by-Step Calibration: How to Fix Telescoping Roller Shade Systems

Learning how to fix telescoping roller shade drift does not require complex machinery or total shade replacement. A methodical sequence helps isolate bracket alignment, structural balance, and roll circumference.

1. Verify Bracket Level and Jamb Squareness

Begin by fully extending the shade downward until the entire fabric surface hangs free and the underlying barrel is exposed. Place a reliable spirit level across the top surface of the roller tube. If the bubble indicates that the tube slopes toward one end, the brackets must be adjusted. In many cases, loosening the mounting screws on the lower bracket and raising it slightly into true horizontal level eliminates the lateral wandering completely.

2. The Barrel Shimming Method

If the brackets are level yet the shade continues to walk to one side, the issue often stems from subtle variations in fabric thickness or tube geometry. You can counteract this behavior using barrel shimming, a proven technician technique detailed further in our fix telescoping roller guide.

The principle of shimming relies on counterbalancing the effective diameter of the roller. A shade naturally tracks toward the side with a larger circumference. Therefore, if your shade is telescoping toward the left bracket, the right side requires a subtle increase in diameter to draw the fabric back toward center. Follow these steps:

1. Lower the shade completely until the bare roller tube and fabric attachment spline are visible.
2. Select painter's tape or quality masking tape that will not degrade or leave gummy residue over time.
3. Apply a flat strip of tape directly onto the metal tube on the opposite side of the telescoping direction. Ensure the tape lies flat without wrinkles.
4. Raise the shade and observe the tracking behavior.
5. If the shade still drifts, lower it again and apply a second layer of tape directly over the first. Continue incremental adjustments until the fabric coils cleanly between the brackets without contacting either side.

Motorized Roller Blinds: Tubular Motor Seating and Limit Alignment

Motorized shades introduce additional mechanical elements that require careful inspection. In smart window systems, a tubular motor rests inside the aluminum barrel, utilizing a drive wheel and crown adapter to rotate the tube. If these internal components are misaligned, they can create rotational wobble that mimics classic fabric telescoping.

When dealing with a motorized roller blind not rolling up straight, inspect how the motor head sits within its mounting bracket. If the motor is seated at an angle or if the drive crown has slipped out of its mating groove, the tube will rotate on an eccentric axis. Re-seating the motor assembly securely into the idler and drive brackets ensures smooth, concentric revolution. For deeper troubleshooting of automated hardware, consult our dedicated shade fix telescoping guide.

Once mechanical shimming is completed on a motorized unit, it is equally important to recheck the upper and lower electronic travel limits. Because shimming tape increases the roller diameter, the shade reaches its intended top position slightly sooner in its rotational count. Resetting the upper limit prevents the bottom hem bar from jamming tightly against the brackets, which could otherwise induce fresh tracking errors or place unnecessary strain on the internal motor gearing.

Window Dimensions, Fabric Weights, and Long-Term Prevention Framework

Preventing lateral shade drift begins before installation by evaluating the relationship between window proportions and textile properties. The aspect ratio of a window plays a notable role in roll stability. Tall, narrow shades with substantial drop lengths are inherently more susceptible to telescoping than wide, short shades. On a tall shade, even a fraction of an angular degree deviation has multiple vertical rotations to multiply into severe edge drift.

Fabric weight and weave characteristics also influence tracking dynamics. Dense blackout materials with multi-layer backings exhibit greater structural stiffness than loose, open-weave solar screens. Stiff textiles require meticulous bracket alignment, as they do not naturally conform or flex across minor installation variances. Conversely, softer decorative fabrics may stretch unevenly along the hem if pulled off-center during manual operation.

In my own observation, taking extra time during initial rough-in to verify that mounting brackets share a true plane saves far more effort than correcting compounding drift later. Utilizing mounting brackets with elongated screw slots allows you to make minor lateral and vertical adjustments before driving final securing hardware into the window framing. By pairing accurate bracket geometry with thoughtful barrel shimming and proper motor seating, you can ensure your roller shades deploy and retract with balanced, quiet precision.
