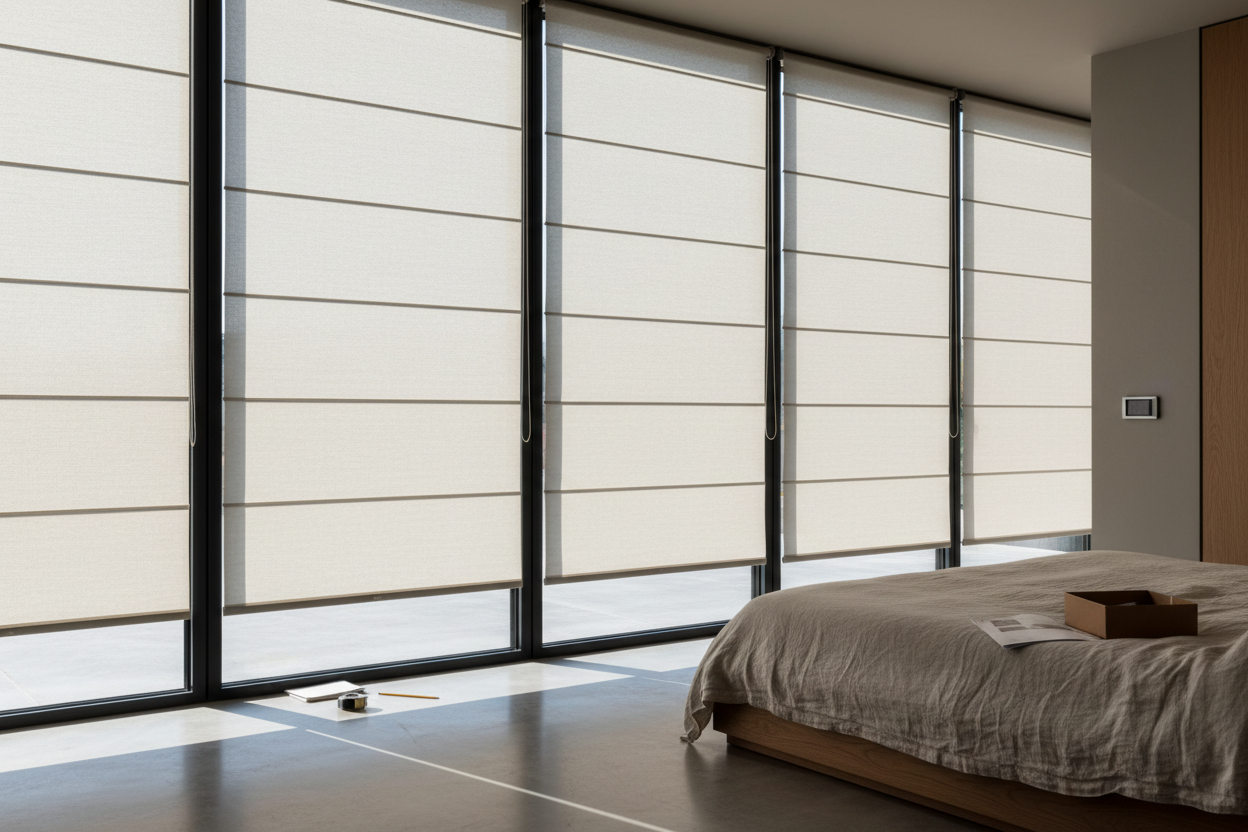

The 1/8-Inch Mistake I Made Ordering In Frame Blinds

I spent three weeks on my hands and knees sanding 100-year-old white oak trim in my guest room. By the time the stain dried, the wood looked like a million bucks. There was no way I was going to drill holes into the face of that casing to hang an outside-mount shade. I wanted in frame blinds that looked like they were born there—tucked away, architectural, and clean.

But my obsession with aesthetics nearly cost me $300. I was so focused on getting the width right that I completely ignored the physics of the motor. I learned the hard way that when it comes to window blinds that fit inside frame, the depth of your window jamb is just as important as the width of the glass.

Quick Takeaways

• Always measure width in three places (top, middle, bottom) and use the smallest number.
• Smart blinds require more depth than manual ones to accommodate motors and battery packs.
• A 'flush mount' means the blind is fully recessed; a 'partial mount' means the headrail sticks out.
• Deduct 1/8-inch from your narrowest width measurement to prevent the fabric from scraping the window jambs.

Why I Refused to Cover My Restored Window Trim

Outside mount shades are fine if you are trying to hide ugly vinyl windows or a crooked frame. But in a craftsman home, the trim is the star of the show. Installing blinds that fit inside window frame allows the molding to act as a natural border. It feels intentional, not like something you bought at a big-box store and slapped on the wall.

The problem is that inside mounts leave zero room for error. If you are off by a fraction of an inch, the shade either won't fit into the opening or it will rub against the sides, eventually fraying the fabric. I wanted that sleek, built-in look, but I didn't realize how much the hardware requirements change when you decide to choose smart blinds instead of old-school pull-cords.

The $300 Measuring Mistake (Window Depth is Everything)

Here is where I messed up: I measured the width of my window at 34 inches and called it a day. I didn't check the depth. When my custom motorized shade arrived, I realized the motor cassette required 3.5 inches of depth to sit flush. My window jambs? They were only 2.75 inches deep.

The result was a shade that protruded nearly an inch from the wall. It looked like a tumor on my beautiful oak trim. Even worse, because the roller was so tight against the glass, the fabric would catch on the window lock every time it lowered. If you don't account for the 'roll diameter'—the thickness of the fabric when it is fully rolled up—you risk burning out the motor because of the constant friction.

How to Actually Measure (The 1/8-Inch Rule)

Don't trust your house to be square. It isn't. Take a steel tape measure—not a soft sewing tape—and measure the width at the top, the middle, and the bottom. Use the narrowest measurement. If you use the widest, your blinds will jam halfway down. Most custom manufacturers will do the 'deduction' for you, but I always subtract 1/8-inch myself just to be safe. This 'light gap' is barely visible but essential for the shade to move freely as the house expands and contracts with the seasons.

For the height, do the opposite: measure left, center, and right, and use the longest measurement to ensure the blind actually reaches the sill. If you are worried about the bracket placement, check out this smart blinds in window frame setup guide to see how the mounting clips impact your final clearance numbers.

The Motor Problem: Hiding the Tech in Tight Spaces

Smart blinds are thicker than manual ones. Period. You have a motor, a battery tube, and a Zigbee or Thread radio crammed into that top headrail. This usually means a larger cassette. If you have shallow windows, look for shades that use 'low-profile' motors or thinner fabrics.

I have found that motorized light filtering sheer shades are the best bet for tight spaces because the material is so thin it doesn't create a massive roll at the top. If you’re hardwiring your blinds (12V DC), you can often get away with a smaller headrail because you aren’t trying to hide a pack of eight AA batteries up there.

What If Your Window Jambs Are Too Shallow?

If you have less than 2 inches of depth, a true flush inside mount is probably impossible. You have two choices: the 'partial inside mount' or admitting defeat with an outside mount. In a partial mount, the brackets are inside the frame, but the roller sticks out. It’s a compromise. You can often hide this with a custom valance or a decorative fascia.

Before you give up, see if there are fit blinds inside your window frame options that use 'spring-loaded' brackets. These can sometimes be mounted further forward in the opening, giving you just enough clearance to avoid hitting the glass while keeping the motor hidden. Just remember: if that motor is rubbing against the window handle, it won't matter how good the trim looks—it’s going to break.

FAQ

Do I need to hire a pro to measure for inside mount blinds?

No, but you need to be patient. Use a laser measurer for accuracy if you have them, but a standard steel tape is fine. Just measure everything twice and write it down immediately. Don't try to remember the numbers.

What is the minimum depth for a motorized inside mount?

Most motorized shades need at least 2.5 inches for a partial mount and 3.5 to 4 inches for a full flush mount. Check the specific 'spec sheet' for the motor model before you click buy.

Will in frame blinds block more light than outside mount?

Actually, they block less. Inside mounts always have a small 'light gap' on the sides (usually 1/8 to 1/4 inch) to allow the fabric to move. If you need 100% total blackout for a theater room, outside mount is actually the better choice.
