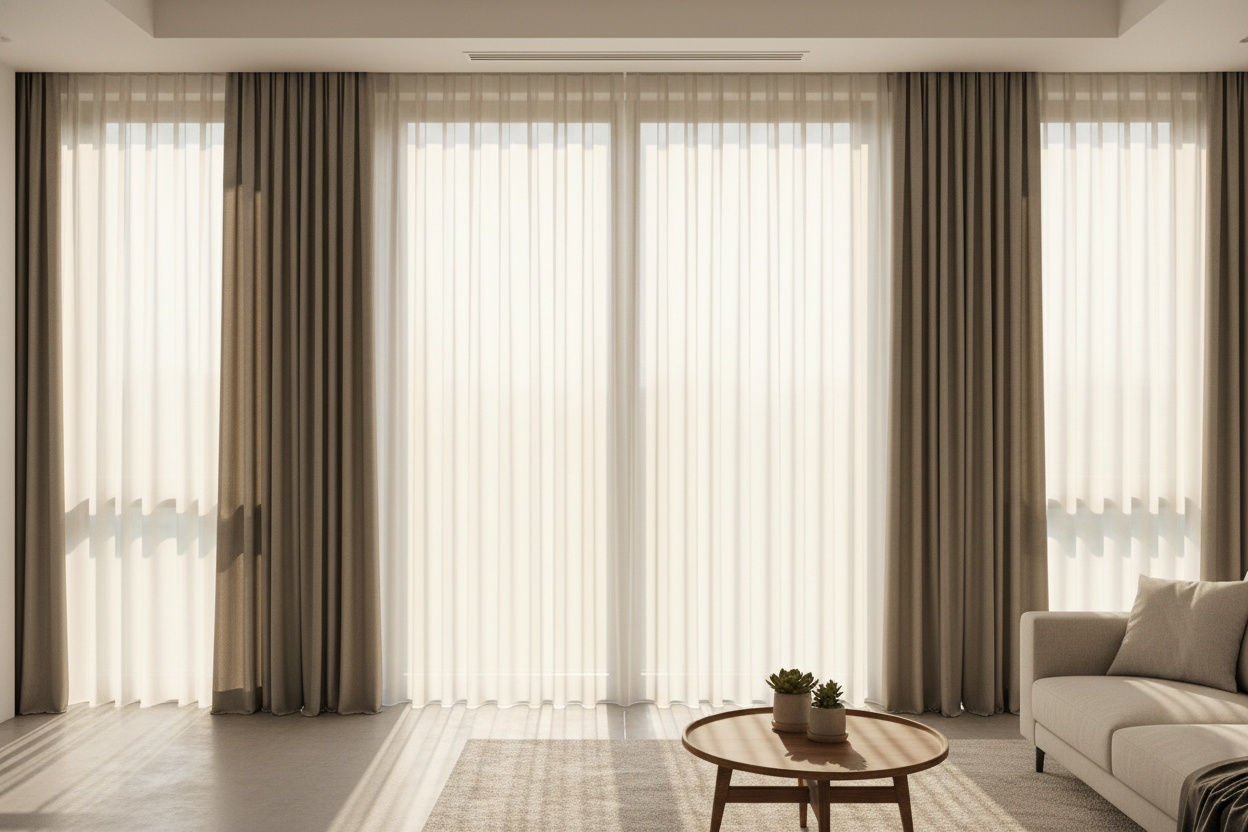

The 4 Rules for Layering Smart Shades and Draperies Without Clashing

I used to think a single motorized roller was the peak of home automation luxury. Then I woke up at 6:15 AM with a laser beam of sunlight hitting my eyes because of the unavoidable light gaps on the sides of the frame. I realized that shades and draperies aren't just about looking like a high-end hotel; they are about fixing the functional flaws of a single-layer system.

• The 3-Inch Rule: Always leave at least three inches of clearance between the shade and the drapery track to prevent motor jams.
• Discrete Grouping: Set up your smart home scenes to control layers independently, not as a single 'window' group.
• Torque Awareness: Match your motor's Newton-meter (Nm) rating to the actual weight of your fabric.
• Hybrid Control: If the budget is tight, automate the functional layer and keep the decorative layer manual.

Why You Actually Want Both (Function Meets Form)

A single window treatment usually forces you to choose between aesthetics and utility. Roller shades are surgical tools for light control, but they can look cold and leave architectural edges exposed. Adding a decorative window treatment on top softens the room's acoustics and hides those mounting brackets you spent three hours leveling.

I've found that layering creates a literal air pocket that helps with insulation, but the real win is the lighting flexibility. You can have the sheers closed for privacy while the blackout rollers are up, or vice versa. I’ve detailed the specific logic of this setup before when explaining why I run a smart curtain and shades on the same window to handle everything from afternoon glare to total movie-night darkness.

Rule 1: The 3-Inch Clearance Gap Is Non-Negotiable

The biggest mistake I see is mounting a curtain track too close to a roller shade. When that motorized roller starts spinning, the hem bar—the weighted metal bit at the bottom—likes to swing. If it’s within two inches of your drapery treatments, it will eventually snag the fabric. This doesn't just look messy; it triggers the motor's safety stop or, worse, burns out the motor because it thinks it hit an obstacle.

Measure from the wall to the outermost edge of your shade's bracket. Then, add three inches before you mark the drill holes for your outer curtain treatment. This 'air gap' ensures that even if a breeze catches the fabric, your motors won't be fighting each other for physical space.

Rule 2: Don't Fight Your Smart Home Hub (Group Strategically)

In the Alexa or HomeKit app, your instinct is to group 'Left Window Shade' and 'Left Window Curtain' into one device called 'Left Window.' Don't do it. You will inevitably say 'Close the window' and find yourself sitting in a cave when you only wanted to cut the glare on your TV.

Create specific scenes instead. I use a 'Work Mode' scene that lowers the window drapery treatments to 50% to kill reflections while keeping the inner shades open for natural light. Keeping the devices separate in your hub's hierarchy allows you to troubleshoot which motor is acting up without the other one responding to every command. If one Zigbee node drops off, you'll know exactly which one it is.

Rule 3: Match the Fabric Weight to the Track Motor

Not all motors are created equal. Most battery-powered curtain tracks are rated for about 10kg to 15kg of fabric. If you've fallen in love with heavy, triple-weave velvet, you are going to smoke a standard motor in six months. Heavy fabrics create friction, especially at the 'stackback' where the fabric bunches up.

Before you buy, calculate the weight of your panels. If you're going for a grand, floor-to-ceiling look, you need heavy-duty smart drapery hardware designed for high-torque pulls. I once tried to save $50 by using a lightweight motor on a 20-pound velvet setup; the grinding sound it made every morning was enough to ruin the 'luxury' vibe entirely.

The Budget Compromise: Automate One, Pull the Other

Let's be real: motorizing two layers per window gets expensive fast. If your budget is screaming, automate the layer you move the most. For most of us, that's the inner blackout shade that goes up and down every single day. The outer decorative layer can stay manual, or even stationary as 'side panels' that never actually close.

If you decide that layering is too much of a hardware headache, you can find a middle ground. I often suggest a high-quality motorized drapery with 90% blackout as a single-layer alternative. It gives you the soft fabric look of a drapery with the light-blocking power of a heavy shade, saving you the hassle of dual-track installation.

My Personal Experience: The Mesh Network Meltdown

Last winter, I decided to update the firmware on my dual-layer setup in the living room. Halfway through, my Zigbee mesh decided to re-route through a smart plug in the kitchen that someone had unplugged. The inner shade finished the update, but the outer drapery got stuck in a 'zombie' state. I had to climb a ladder, reset the motor, and re-calibrate the travel limits from scratch. The lesson? Always make sure your hub has a clear, powered path to your windows before you start messing with the software.

FAQ

Can I use one remote for both layers?

Yes, but get a multi-channel remote. Channel 1 for shades, Channel 2 for drapes, and Channel 3 to move them both. Using one channel for both is a recipe for frustration.

How do I hide the wires for two motors?

If you're not using battery-powered units, you'll need a dual-outlet behind the drapery header. I use paintable cable raceways to run the wires down the corner of the window frame where the fabric naturally hides them.

Do smart shades work with existing curtains?

Usually. As long as you have enough depth in your window casing (about 2.5 inches) to mount a roller shade inside the frame, your existing wall-mounted curtains can stay exactly where they are.
