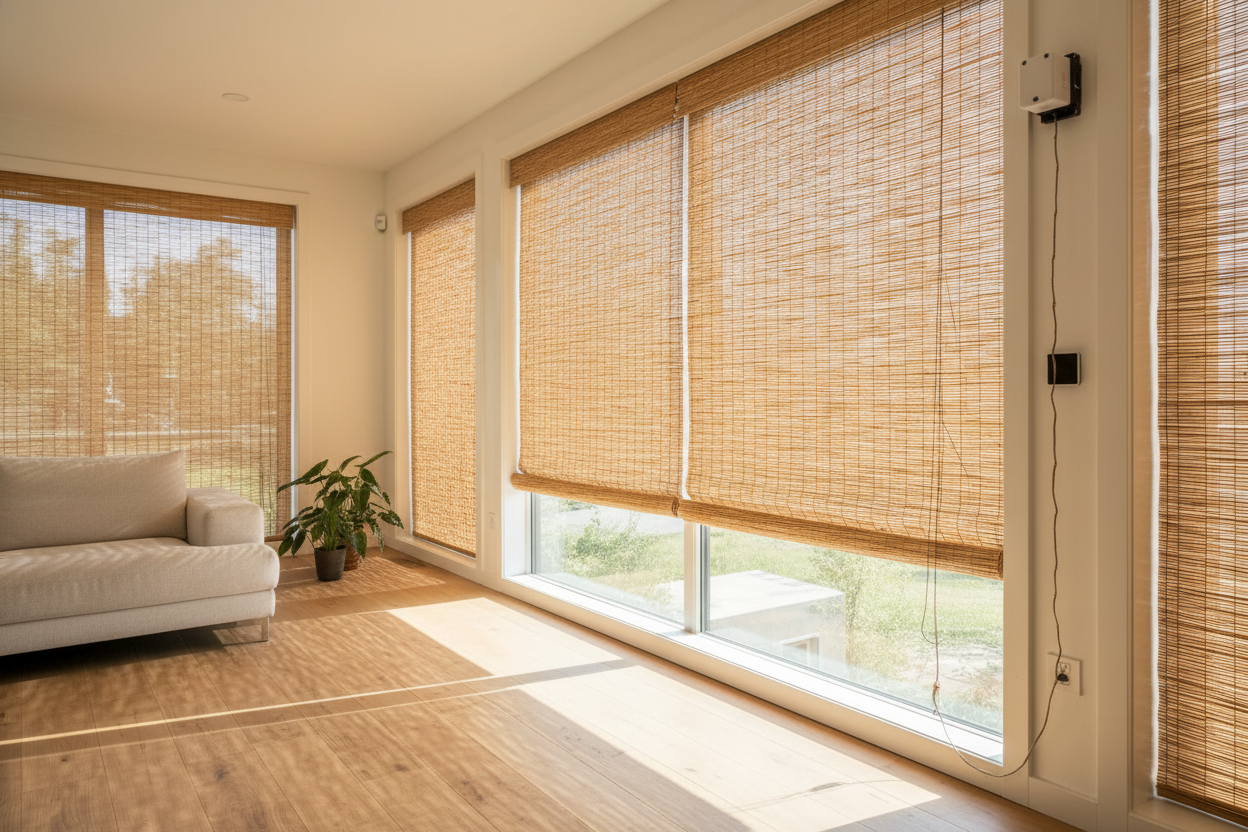

The Heavy, Crooked Truth About Automating a Woven Wood Shade

I spent three hours mounting a beautiful, textured bamboo blind only to watch my smart motor stall halfway up. It made a sound like a blender full of gravel. I wanted that organic, high-end look I saw on Pinterest, but I didn't account for the fact that wood is, well, heavy. Most of us are used to lightweight polyester rollers that zip up with a tiny 5V motor. Attempting that with a woven wood shade is a recipe for a dead battery and a very frustrated weekend.

Adding natural textures to your windows is a massive trend right now, and for good reason. They filter light beautifully and kill that 'sterile' tech vibe. But after personally installing, configuring, and eventually cursing at a half-dozen different setups, I’ve realized that natural woven blinds require a completely different engineering mindset than their synthetic cousins.

Quick Takeaways

• Torque is King: You need a motor rated for at least 1.1Nm to 2.0Nm for anything larger than a powder room window.
• Telescoping is Real: Natural fibers aren't uniform, which means they rarely roll perfectly straight without help.
• Power Requirements: Skip the weak 5V internal batteries; 12V hardwired or high-capacity lithium packs are your friends here.
• Roman vs. Roller: Roman-style folds are easier on motors but take up more vertical space when raised.

Why I Fell for the Organic Aesthetic Trap

I’m a sucker for texture. I wanted my home office to feel less like a server room and more like a retreat. Standard blinds woven wood offer this incredible 'earthy' depth that flat fabric just can't touch. I bought into the hype, thinking I could just slap a retrofit motor on a set of off-the-shelf natural woven blinds and call it a day. I was naive.

The problem is that natural materials—bamboo, jute, seagrass—have variable thickness. Unlike a machine-pressed sheet of vinyl, a woven wooden window shade has knots, bumps, and ridges. When you automate that, the motor isn't just fighting gravity; it’s fighting the friction of the material itself. I learned quickly that the 'aesthetic tax' on these shades isn't just the price tag; it's the mechanical demand they put on your smart home hub.

The Physics of Bamboo: Why My First Motor Screamed

Weight is the silent killer of smart blinds. My first attempt involved a standard retrofit motor I had lying around from a previous project. The moment I triggered the 'Open' command, the motor sounded like it was climbing a mountain with a backpack full of bricks. Fabric shades might weigh 2 or 3 pounds; a solid woven wood roller shade can easily double or triple that.

If you are looking at a retrofit guide for woven wood, pay attention to the Newton-meter (Nm) rating. Most 'standard' DIY motors are rated at 0.5Nm. That is fine for a sheer curtain, but for wood? You are going to burn out the gears in six months. I eventually had to upgrade to a high-torque Zigbee motor that could handle the 15-pound load without sounding like a woodchipper. If your motor is whining, it’s dying.

Roller vs. Roman: How Grass Folds Differently

There is a massive mechanical difference between a woven wood roller shade and woven wood curtains that operate on a Roman fold. Roller versions are sleek, but they require a much larger headrail because the wood gets thick very quickly as it rolls up. This creates a 'telescoping' effect where the roll gets wider and wider, increasing the strain on the motor shaft.

I personally prefer the look of woven wooden window shades in a Roman style for automation. Why? Because the motor doesn't have to roll the material around a tube. It just pulls cords to lift the folds. It’s a more consistent load for the motor, even if the 'stack' at the top of your window is a bit bulkier. If you have deep window casings, go Roman. If you’re tight on space, you’ll need a heavy-duty roller motor and a lot of patience.

The Telescoping Nightmare (And How to Fix It)

Here is the secret no one tells you: natural materials are never perfectly square. Because woven grass blinds and window blinds woven wood are made from organic fibers, one side of the shade might be 1mm thicker than the other. Over a 72-inch drop, that 1mm becomes a disaster. The shade will start to 'telescope'—drifting to one side until it jams against the bracket.

When motorizing natural woven wood, you have to become a master of 'shimming.' I spent an afternoon with a roll of masking tape, sticking small strips onto the metal roller tube on the 'thin' side of the fabric. This levels out the roll so it tracks straight. It’s tedious, but it’s the only way to prevent your smart blinds from eating themselves during a 7 AM scheduled opening.

Finding a High-Torque Motor That Actually Stays Quiet

If you’re going to do this, don't skimp. You need a motor with a soft-start and soft-stop feature. This prevents the 'jolt' that can cause heavy wood shades to shift on their cords. I look for motors that stay under 35dB. There is nothing worse than a beautiful, natural room being interrupted by a high-pitched electronic whine.

I also highly recommend going with a 12V system. While 5V USB-rechargeable motors are convenient, they often lack the 'breakaway' torque needed to start lifting a heavy natural woven shade from a dead stop. If you can't hardwire them, look for external battery wands that take AA lithium batteries—they provide a more consistent voltage floor than the cheap internal lipos found in budget fabric-shade motors.

My Final Setup: Earthy Looks, Smart Brains

After a year of trial and error, I finally have a setup that doesn't make me cringe. I’m using motorized woven wood shades that were built from the ground up for automation. The motors are tucked inside a reinforced metal headrail, and the torque is high enough that they move with a confident, low-frequency hum rather than a desperate struggle.

The result? My shades open to 30% when my alarm goes off, letting in just enough dappled light to wake me up without hitting me with a sun-laser. They look like a million bucks, and they work every single time. Just remember: respect the weight of the wood, shim your rollers, and buy more torque than you think you need. Your ears (and your spouse) will thank you.

FAQ

Can I automate my existing bamboo blinds?

You can, but check the headrail first. Most 'dumb' blinds have a tiny, flimsy headrail that won't fit a motor. You'll likely need to replace the entire top assembly or buy a dedicated motorized unit.

How long does the battery last on heavy wood shades?

If you're using a standard internal battery, expect about 3-4 months of daily use. Heavy wood drains batteries much faster than fabric. I suggest a solar charging panel if your window gets direct sun.

Why is my woven shade rolling crooked?

That is telescoping. It happens because the natural fibers vary in thickness. Use small strips of masking tape on the roller tube (under the material) to 'bulk up' the side that is sagging.
