The Precision Guide: Getting the Perfect Fit for Your Cellular Shades

Installing new window treatments is one of the most effective ways to improve the energy efficiency and aesthetics of a room. Cellular shades, in particular, offer a sleek look and superior insulation properties. However, the difference between a high-end, custom appearance and a frustrating installation often comes down to one thing: the accuracy of your measurements. When opting for an inside mount—where the shade sits recessed within the window frame—precision is non-negotiable.

Many homeowners assume that a window frame is perfectly square, but structural settling and drywall variations often result in slight irregularities. This guide provides a detailed, evidence-based approach to measuring your windows, ensuring that your custom shades operate smoothly and block light effectively.

The Essential Tools for Accuracy

Before approaching the window, it is vital to have the correct equipment. The most common error in window measurement stems from using the wrong type of measuring device. Cloth tape measures used for sewing can stretch over time, and folding rulers can be difficult to keep straight inside a recess.

You must use a steel tape measure. It provides the rigidity necessary to span the width of the window without sagging and offers precise markings down to the 1/8th of an inch. Additionally, have a pencil and a specialized measurement worksheet or a simple notepad ready. Relying on memory is a recipe for error.

Step-by-Step: How to Measure for Inside Mount Cellular Shades

An inside mount provides a clean, built-in look that showcases your window molding. To achieve this, the shade must fit within the recess without rubbing against the sides while minimizing light gaps. Here is the professional standard for gathering these dimensions.

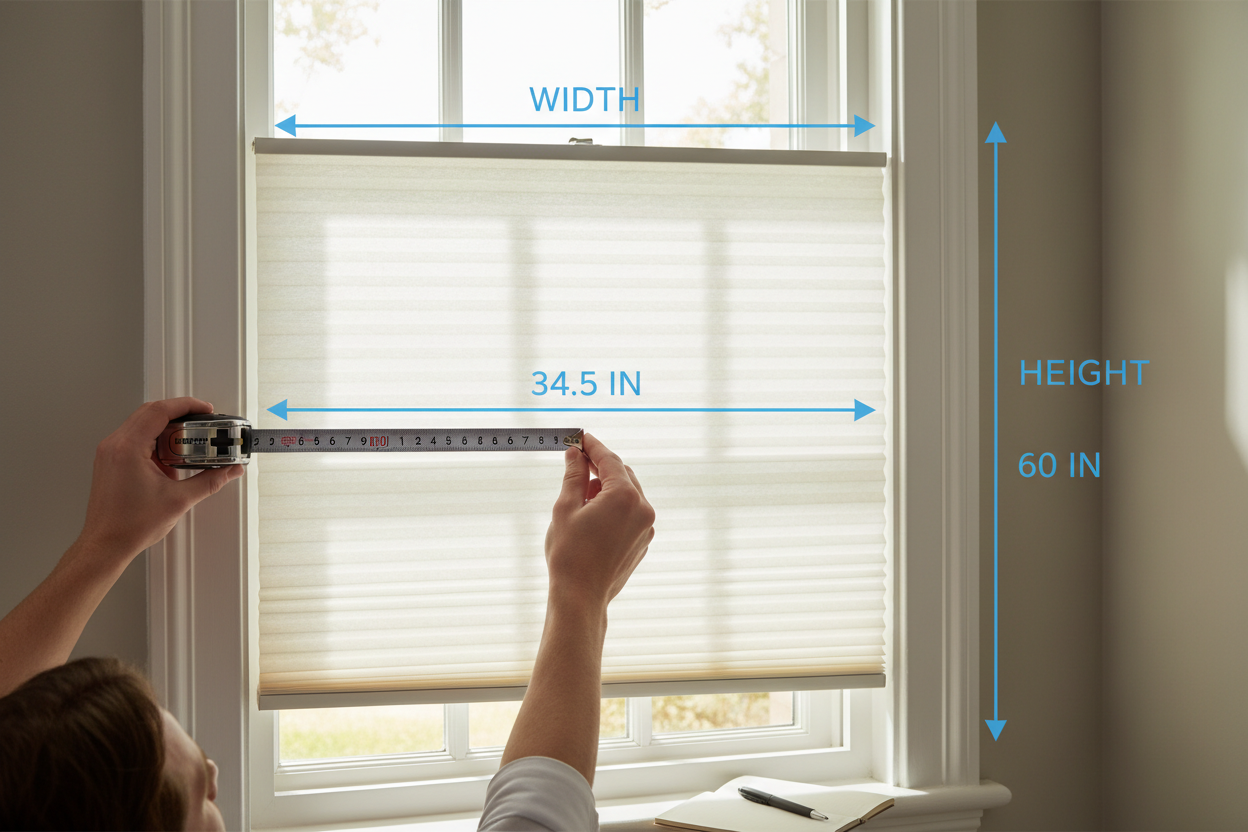

1. Measuring the Width

Do not simply measure across the middle and assume the width is consistent. You must measure the width inside the casing at three distinct points:

• The top of the window opening (where the headrail will sit).
• The middle of the window.
• The bottom of the window.

Record all three measurements to the nearest 1/8th of an inch. For an inside mount, you should circle the narrowest of the three measurements. This is the primary number you will provide to the manufacturer. Factories automatically make a small deduction (usually between 1/4 to 3/8 of an inch) from the width you provide to ensure the hardware fits. If you provide the average or the widest measurement, the shade will likely bind against the frame and fail to operate.

2. Measuring the Height

Similar to the width, the height of a window frame can vary. Measure the vertical height inside the casing at three points:

• The left side.
• The center.
• The right side.

For the height, you should use the longest measurement. This ensures that the shade covers the entire opening when fully extended. If the shade is slightly too long, the bottom rail will simply rest on the sill. If it is too short, you will have a visible gap that lets in light and reduces privacy.

3. Confirming Window Depth

Cellular shades require a specific amount of depth to mount securely. This is often referred to as minimum mounting depth. Measure the depth of your window casing from the glass to the edge of the molding. Compare this against the product specifications. If you want the shade to be fully recessed (flush mount) so it does not protrude into the room, you will usually need between 2 to 3 inches of depth, depending on the cell size (single vs. double cell).

Special Considerations: How to Measure for Top Down Bottom Up Shades

Top Down Bottom Up (TDBU) functionality adds versatility, allowing you to lower the shade from the top to let in light while maintaining privacy at the bottom. However, the mechanics involved require specific attention during the measuring process. When learning how to measure for top down bottom up shades, you must account for the additional hardware bulk.

The operating cords or cordless mechanisms in TDBU shades are often housed in slightly larger headrails or require precise tension to keep the middle rail level. If your window frame is significantly out of square (a difference of more than 3/8 inch between top and bottom widths), a TDBU shade may not hang level, causing a gap where the rails meet. In such cases, checking the diagonals of the window to confirm squareness is recommended. If the diagonals differ significantly, an outside mount might be a safer functional choice.

Furthermore, ensure there are no obstructions such as window cranks, alarm sensors, or handles that would interfere with the operation of the floating rail. The measurement process remains the same—width at three points, height at three points—but the tolerance for error is lower due to the complexity of the lift mechanism.

Addressing Terminology: How to Measure for Top Down Bottom Up Blinds

While industry professionals distinguish between "shades" (fabric) and "blinds" (hard slats), many homeowners use the terms interchangeably. If you are searching for how to measure for top down bottom up blinds, the methodology is identical to that of cellular shades. Whether you are installing a pleated shade or a specialized blind with TDBU features, the "narrowest width" rule applies strictly to prevent the floating rail from scraping the window jambs.

A Lesson Learned from the Field

Early in my career, I assisted a client with a beautiful bay window installation in a historic home. The client had measured the windows themselves using a fabric measuring tape from a sewing kit. They provided the measurements, and we ordered high-end cellular shades. When we arrived to install them, every single shade was nearly half an inch too wide. We discovered that the fabric tape had stretched over years of use, and the client had measured the front of the window frame rather than the recessed point where the brackets would sit. We had to reorder the entire batch. This experience solidified the importance of using a steel tape measure and measuring exactly where the headrail will be installed. It is a small detail that saves significant time and money.

Final Checklist Before Ordering

Before submitting your order, verify your data one last time. Ensure you have measured the exact opening and not the glass size. Do not take deductions yourself; provide the exact window opening size (recitals) and let the manufacturer apply the necessary deductions for operating clearance. If you are mounting two shades in one large window (2-on-1 headrail), measure to the center mullion carefully.

By adhering to the three-point measurement system and using the correct tools, you ensure a professional fit that maximizes the insulation and beauty of your cellular shades.
