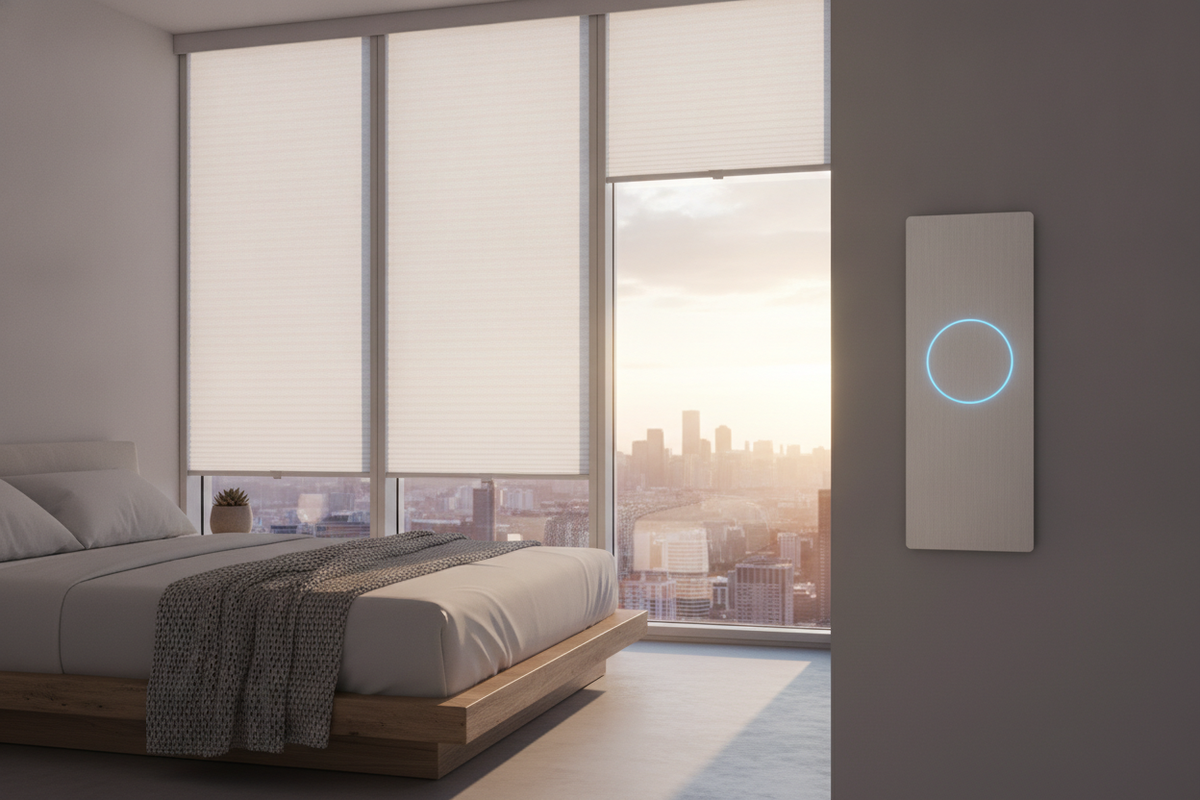

Thin Cellular Shades: Low-Profile Mechanics, Shallow Depth Mounting, and Smart Automation Architecture

Anatomy of Thin Cellular Shades: Profile Mechanics and Pleat Architecture

Window architecture often presents spatial constraints that make conventional window treatments impractical. Thin cellular shades address these architectural challenges by utilizing micro-pleat honeycomb geometries and slim hardware profiles. By reducing the overall projection of both the fabric stack and the structural housing, low-profile cellular shades provide essential light control and insulation without protruding awkwardly into living spaces.

Compact Cell Scale vs. Standard Honeycomb Dimensions

The core distinction in thin cellular shades lies in their cell scale. Standard honeycomb shades feature deeper cell cavities that demand significant casing depth. In contrast, narrow cellular shades utilize tighter pleat spacing and shorter horizontal cell projections. This architectural scaling creates a significantly shallower fabric stack when raised, preserving unobstructed daylight and clear sightlines across smaller glass panes.

Proportionally, smaller pleats complement narrow windows, transom panels, and sidelights far more naturally than heavy, oversized cell structures. The delicate horizontal lines of micro-honeycomb fabrics deliver a tailored aesthetic that aligns with minimalist interior schemes, preventing the treatment from overwhelming delicate window moldings.

Low-Profile Headrails and Mounting Depth Clearance

A primary mechanical component of thin cellular shades is the low-profile headrail extrusion. Traditional blinds and roller shades often incorporate bulkier top cassettes that require deep casing reveals for a flush appearance. Slim headrails are engineered with compact internal components, allowing them to nest cleanly within minimal mounting depths.

When a headrail fits flush within the window frame, it creates a clean architectural finish and prevents hardware from colliding with adjacent walls, sliding panels, or decorative trim. This low-profile housing preserves the structural lines of modern window casings while housing the necessary internal mechanics for smooth operation.

Solving Architectural Depth Constraints: Sidelights, French Doors, and Shallow Casements

Certain architectural openings frequently present severe depth limitations. Entry door sidelights, French doors, tilt-in hopper windows, and shallow European-style casements rarely feature the recess depth necessary for standard window coverings.

Narrow Openings and Hardware Clearance (Handles and Cranks)

Door installations and operable windows present physical clearance obstacles, such as projecting lever handles, locks, deadbolts, and window cranks. Installing deep treatments often leads to mechanical interference, where the bottom rail or fabric rubs against hardware during daily operation.

Narrow cellular shades resolve this clearance issue through their minimal forward projection. When installed close to the glass, the slim profile allows door handles to turn freely and window cranks to operate without catching on the shade edge. For comprehensive guidance on structural clearances, exploring a dedicated cellular shades resource helps homeowners verify hardware setbacks before installation.

Inside Mount vs. Outside Flush Mount Framework

Deciding between an inside mount and an outside mount depends largely on frame depth and opening functionality:

• Inside Mount: Recommended when the window jamb offers sufficient flat mounting surface for the slim mounting brackets, allowing the headrail to sit recessed and flush with the surrounding drywall or millwork.
• Outside Mount: Utilized when the casing depth is entirely obstructed or nonexistent. The low-profile nature of thin shades ensures that an outside mount remains sleek, projecting minimally off the wall surface compared to bulkier alternatives.

Light Management and Thermal Physics in Slender Honeycomb Cells

Despite their slender dimensions, compact cellular shades deliver effective thermal regulation and illumination control through specialized fabric engineering.

Light Filtering vs. Blackout Material Density in Thin Profiles

Selecting the right fabric density depends on the functional demands of each room. Translucent, spunlace polyester fabrics diffuse harsh direct sun, scattering daylight evenly throughout the room while softening glare. For living areas, choosing a motorized cellular shades product provides smooth illumination balance alongside seamless architectural lines.

In contrast, blackout variants incorporate an opaque interior barrier within the compact cell structure. In spaces such as bedrooms and media rooms, elegant series motorized blackout cellular shades prevent direct light transmission through the fabric, delivering privacy and darkness even within shallow frames. Browsing a curated cellular shades collection allows designers to compare various opacity levels and profile dimensions.

Thermal Air Trapping Dynamics in Micro-Chamber Honeycombs

The insulating capacity of cellular shades stems from the dead-air barrier created within each pocket. While smaller cells contain less individual air volume than larger honeycomb chambers, a continuous array of micro-cells establishes a stabilizing thermal buffer along the glass surface.

This micro-chamber structure limits convective air cycling between the cold or heated window pane and the interior living environment. As a result, thin cellular shades help moderate interior surface temperatures without adding visual heaviness to the window reveal.

Operational Mechanics: Cordless Spring Tension vs. Compact Motorization

Modern low-profile cellular systems prioritize clean operation, eliminating dangling cords while offering reliable lifting mechanisms suited to compact hardware.

Cordless Friction Drives and Minimalist Bottom Rails

Manual cordless cellular shades utilize internal spring-tension friction systems paired with a weighted, slender bottom rail. Users simply push or pull the handle to adjust height smoothly. This mechanism eliminates hanging pull cords, creating a modern, uncluttered appearance that is well suited for modern homes.

The reduced weight of compact pleat stacks minimizes internal mechanical strain on cordless spring assemblies, promoting consistent leveling and smooth manual adjustments over repeated daily cycles.

Smart Motorization and Power Architecture for Slim Profiles

Motorizing shallow-depth window coverings once presented significant design challenges due to motor diameter and battery housing dimensions. Modern engineering integrates compact tubular motors directly within the slim headrail extrusion, eliminating bulky external battery wands.

These compact automated systems connect with smart home platforms, enabling automated schedules, voice activation, and remote scene control. Automated adjustments allow shades across sidelights, transoms, and hard-to-reach casements to move synchronously throughout the day.

Measuring and Precision Fit Framework for Narrow Cellular Shades

Achieving a seamless fit with thin cellular shades requires methodical measuring practices, particularly in shallow frames where slight imperfections become visually apparent.

Accounting for Frame Taper and Hardware Clearances

Window frames are rarely perfectly square. In shallow openings, minor variations in drywall taper or sill level can cause uneven gaps or fabric binding. To ensure an exact fit:

1. Measure the interior width across three separate locations: the top, middle, and bottom of the casing opening.
2. Record the narrowest measurement to determine headrail and fabric manufacturing specifications.
3. Measure the vertical height at the left, center, and right points to verify proper drop clearance.
4. Check the depth of the reveal at the top to confirm adequate mounting bracket purchase.

Mitigating Edge Light Bleed in Shallow Casements

Because inside-mounted cellular shades require slight factory deductions to allow free vertical movement, narrow edge gaps naturally occur at the perimeter. In shallow installations where blackout performance is required, installing low-profile side channels or magnetic hold-down brackets can help contain perimeter light bleed and maintain fabric alignment.

Maintenance and Longevity of Compact Honeycomb Fabrics

Preserving the crisp lines and functional performance of narrow cellular shades requires straightforward, gentle maintenance routines.

Dust Prevention and Static Management

Non-woven polyester fabrics naturally resist dust accumulation, but ambient airborne particles can settle within the cell openings over time. Routine maintenance involves using a vacuum cleaner with a soft brush attachment set to low suction, gently gliding across the pleats. Alternatively, a handheld duster or a hair dryer on a cool setting can quickly clear debris from inside the micro-cavities.

Pleat Retention and Mechanical Realignment

To preserve the structural memory of compact pleats, it is beneficial to raise the shades completely for several hours periodically. Keeping the fabric compressed in its stacked position reinforces pleat crease geometry, ensuring that the shade continues to collapse evenly and operate smoothly within tight frame clearances.
