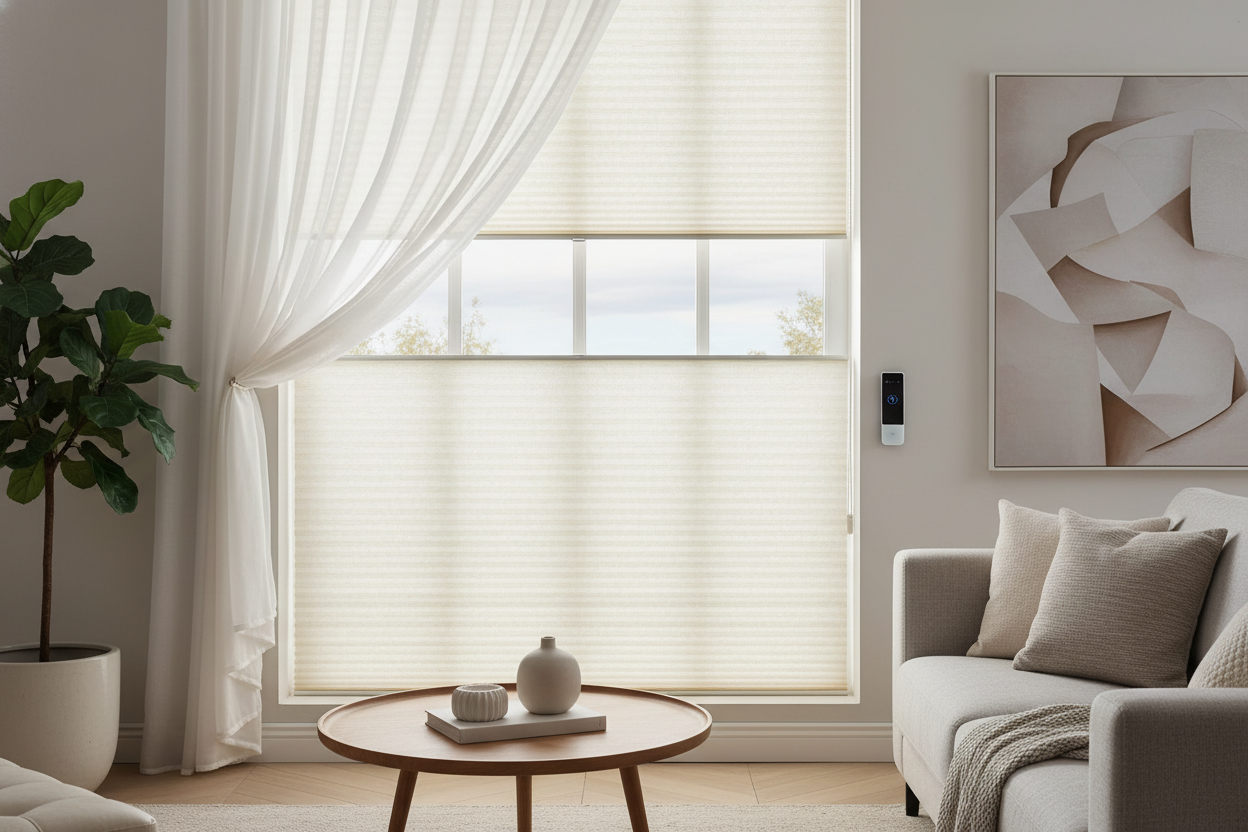

Ultimate Privacy Control: How Smart Top Down Bottom Up Shades Work

Imagine sitting in your living room, enjoying the natural morning light flooding in, yet remaining completely invisible to the pedestrians walking on the sidewalk just a few feet away. This isn't magic; it's specific engineering. While standard roller shades are an all-or-nothing affair, the TDBU (Top-Down Bottom-Up) configuration offers granular control over privacy and lumens. But how do top down bottom up shades work when you introduce smart motors and voice assistants into the mix?

As a smart home integrator, I often recommend these for street-facing windows and bathrooms. They solve a specific problem: getting light in without exposing your interior. Below, we’ll break down the mechanics, the motorization requirements, and what you need to know before retrofitting your windows.

Key Specs at a Glance

Before understanding the mechanics, here is a quick reference guide for the tech specs you will encounter when shopping for smart TDBU units.

Feature	Specification Details
Motor Configuration	Dual Motor (Independent rails) or Single Motor with Clutch
Connectivity	Zigbee 3.0, Thread, Z-Wave, or WiFi (2.4GHz)
Power Source	Rechargeable Li-ion Battery Wand or Hardwired (12V/24V)
Noise Level	40dB - 55dB (Dual motors are slightly louder)
Platform Support	Alexa, Google Home, Apple HomeKit (via Bridge)

The Mechanics: Floating Rails and Tension

To understand the smart version, you first have to grasp how do top down shades work mechanically. Unlike a standard blind that hangs from a fixed headrail, a TDBU system utilizes a floating middle rail.

There are essentially two moving parts: the bottom rail (which operates like a standard shade) and the middle rail (which lowers the top section). This is made possible by a complex system of cords located on the far left and right edges of the shade.

• The Anchor Points: Even in "cordless" models, thin lift cords run through the fabric. The cords for the bottom rail go all the way up to the headrail. The cords for the middle rail actually anchor at the bottom of the window frame or use a counterbalance weight.
• The Tension System: If you are wondering how do cordless top down bottom up shades work without slipping, the answer is constant spring tension. Inside the rails, spring-loaded spools hold the fabric taut at any position. When you push the rail, you are fighting just enough friction to keep it in place once you let go.

Motorizing the Movement: The Smart Upgrade

When we move from manual to smart, things get complicated. How do top down bottom up blinds work when automated? You are essentially asking a machine to control two different coordinates on a vertical axis.

Dual Motor vs. Clutch Systems

Most high-end smart TDBU shades (like those from Lutron or Hunter Douglas) use two independent motors housed in the headrail. One motor winds the cords for the bottom lift, while the second motor releases the cords for the middle rail drop. This allows for total customization—you can have the shade compressed entirely at the bottom, entirely at the top, or floating in the dead center of the window.

Budget-friendly options sometimes use a single motor with a mechanical clutch, but I find these prone to jamming. If you are integrating this into a smart home routine (e.g., "Alexa, set privacy mode"), the dual-motor setup is more reliable.

Installation and Power Considerations

Mounting Depth

Because these shades often house two motors and two rollers, the headrail is deeper than a standard roller shade. If you are doing an inside mount, measure your window depth carefully. You typically need at least 2.5 to 3 inches of depth so the headrail doesn't protrude into the room.

Battery vs. Hardwired

If you are renovating, run low-voltage wire to the window frame. Hardwired motors respond faster and eliminate the "battery anxiety" of dual-motor power consumption. If you are retrofitting, look for rechargeable Li-ion battery wands. Note that TDBU shades are heavier due to the extra rail; expect to charge them every 4-6 months rather than the standard 12 months for single roller shades.

Living with Smart Top Down Bottom Up Shades: Day-to-Day Reality

I have had a dual-motor cellular TDBU unit installed in my home office for about eight months now, and there are nuances the spec sheets don't tell you. The biggest realization for me was the sound signature.

When I trigger my "Work Mode" scene, the shades lower from the top. Unlike a standard roller that has a consistent whir, my TDBU unit has a distinct two-stage sound. The motors rarely sync perfectly. You hear the bottom rail adjust, followed by a slight pause, and then the top rail descends. It’s not loud—maybe 45dB—but in a dead-silent room, that mechanical "adjustment" dance is noticeable.

Another detail is the "light gap" at the top. Even when the shade is fully closed (top rail pulled tight to the headrail), the thickness of the fabric stack sometimes prevents a 100% flush seal against the headrail mechanism. At high noon, I get a razor-thin sliver of light bleeding through the very top. It doesn't affect privacy, but if you are a blackout purist, it’s something to watch for.

Conclusion

Understanding how do top down bottom up shades work reveals why they are often more expensive than standard blinds—you are paying for complex tension mechanics and often double the motorization. However, for ground-floor living or rooms facing busy streets, the ability to keep the bottom half closed for privacy while the top half harvests daylight is a feature no other window treatment can match.

Frequently Asked Questions

Can I operate smart TDBU shades manually if the power goes out?

Generally, no. Most motorized shades lock the gears when not powered to hold the position. However, some hybrid models offer a "manual override" feature, though this is rare in TDBU configurations due to the complex cord tension.

Do I need a hub for these shades?

It depends on the protocol. If you choose Zigbee or Z-Wave motors (like Somfy or generic Tuya motors), you will need a compatible gateway or hub (like SmartThings or Hubitat). WiFi versions connect directly to your router but drain batteries faster.

How do top down blinds work with cellular fabric vs. pleated?

Cellular (honeycomb) fabrics are superior for TDBU systems. The hollow cells hide the lift cords inside the fabric, whereas pleated shades or roman shades often have visible cords running down the back, which can look messy when the top is lowered.
