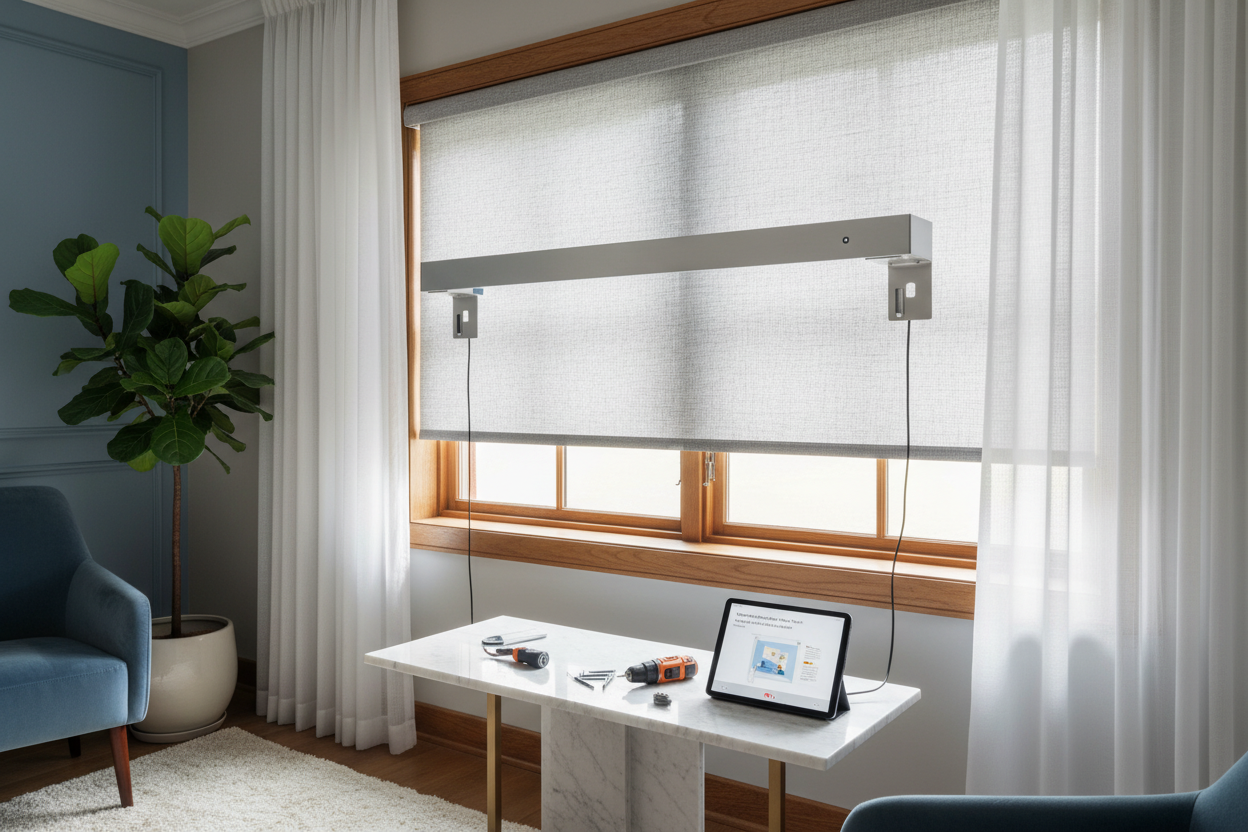

Upgrading Window Tech: Why Your Roller Shade Bracket Matters

You have the smart hub set up, the voice routines programmed, and the retrofit motors charged. You climb the ladder to snap everything into place, only to realize the existing hardware doesn't fit the new motor head. It is a classic smart home hurdle. While we obsess over Zigbee protocols and battery life, the humble roller shade bracket is often the single point of failure in a smart window setup.

Whether you are installing brand new smart shades or retrofitting a motor into existing fabric, the mounting hardware dictates the stability, noise level, and longevity of the device. If the bracket isn't rated for the extra weight of a lithium battery motor, you aren't just risking a fallen blind; you're risking a broken motor.

Key Specs for Motorized Setups

Before you drill, check these requirements. Motorized shades behave differently than manual ones—they generate torque and carry more weight.

• Load Capacity: Ensure the roller blind mounting brackets are rated for at least 15 lbs if you are using battery-powered motors (batteries add significant weight).
• Motor Head Compatibility: Standard manual clutches usually use a pin-end. Smart motors often require a star-head or flat-head interface on the bracket.
• Vibration Dampening: Look for mounting brackets for roller shades that include plastic or rubber inserts to reduce the transfer of motor hum to the window frame.

Installation Realities: Inside vs. Outside Mount

The type of mount you choose drastically affects how you interact with the smart tech, particularly regarding light gaps and sensor placement.

The Outside Mount Advantage

For blackout scenarios, I almost always recommend an outside mount roller shade bracket. By mounting the hardware on the wall or trim above the window, you allow the fabric to overlap the opening. This is crucial for smart setups where you might rely on the shade to darken a room for a movie mode.

Furthermore, an outside mount bracket usually offers more clearance. This is vital if your smart motor has an external battery wand or a charging port that sits on the end of the tube. Tight inside mounts often block access to the USB-C charging port, forcing you to unmount the entire shade just to recharge.

Managing the "Halo" Effect

If you must use an inside mount, standard roller blind mounting hardware creates a "halo" of light on the sides. Smart motors often add an extra 0.5 to 0.75 inches of gap on the motor side to accommodate the antenna and setting button. If you are sensitive to light, ensure your window shade brackets outside mount configuration is wide enough to cover this increased gap.

Heavy Lifting: Torque and Stability

When a manual chain is pulled, the force is vertical. When a smart motor engages, it applies rotational torque directly to the roller shade mounting bracket. Cheap plastic brackets often flex under this torque, causing the shade to "jump" or stutter during operation.

For any shade wider than 60 inches, upgrade to heavy-duty metal brackets for roller shades. This rigidity prevents the motor from twisting the bracket, which is the leading cause of the dreaded "grinding" noise people often blame on the motor itself.

Living with roller shade bracket: Day-to-Day Reality

I learned the hard way that not all roller blind mounting brackets are created equal during a recent install in my home office. I used the stock brackets that came with a budget retrofit motor. They were metal, but the fit was slightly loose.

Every morning at 7:00 AM, when the schedule triggered the blinds to rise, the loose tolerance between the motor head and the bracket caused a metallic rattle that was louder than the motor itself. It wasn't a soothing wake-up call. I eventually swapped them for an outside mount brackets for roller shades set with a nylon bushing. The difference was night and day. The rattle vanished, leaving only the low hum of the motor.

Another nuance: I positioned the bracket so the pairing button on the motor head was facing down. On my first try, I had the button facing the back wall. When the Wi-Fi disconnected a month later, I had to take the whole shade down just to press the reset button. Learn from my mistake: check your port and button orientation before screwing in the bracket for roller blind.

Conclusion

Don't let the hardware be an afterthought. The right roller shade outside mount bracket ensures your smart motor runs quietly, stays charged easily, and remains secure. It is the difference between a setup that feels like a luxury upgrade and one that feels like a noisy DIY project.

Frequently Asked Questions

Do I need special brackets for motorized shades?

Often, yes. While some retrofit motors fit standard roller blind brackets, many require brackets with specific adapters to hold the stationary motor head while the tube spins. Always check the motor manufacturer's spec sheet.

Can I paint my mounting brackets?

You can paint the exterior, but avoid painting the inside mechanism where the shade pin or motor head sits. Paint buildup can increase friction, straining the motor and draining the battery faster.

How do I hide the brackets?

If the industrial look of the outside mount bracket doesn't fit your decor, consider adding a cassette or a fascia. Many smart shade systems offer a fascia that snaps directly onto the roller shade mounting bracket to conceal the hardware and the roller tube.
