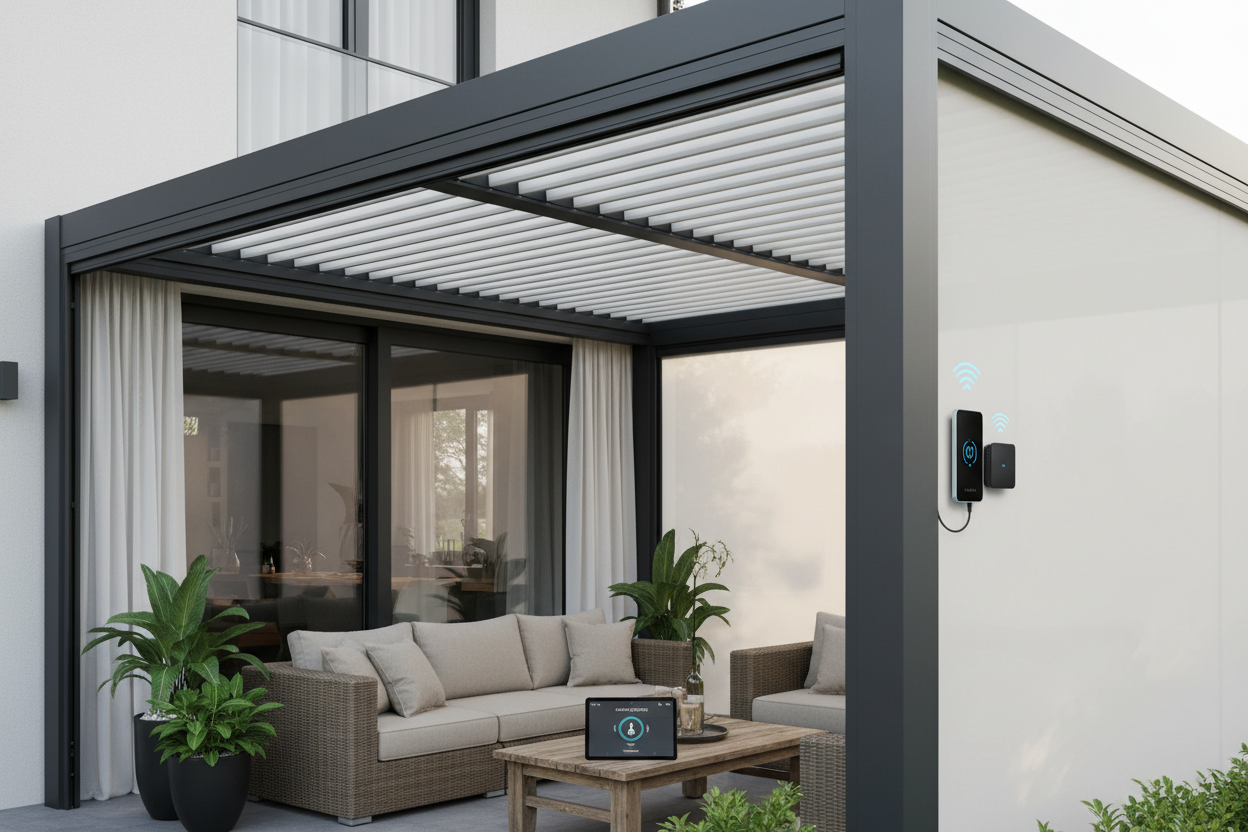

Voice Controlled Permanent Outdoor Shade Structures: My Setup

It’s 2:00 PM on a Tuesday. I’m trying to finish a video edit on the patio, but the sun just hit that specific angle where my laptop screen becomes a mirror. Ten years ago, I would have had to get up and manually crank a handle. Today, I just stay seated and say, “Turn on Focus Mode.” The motorized louvers above me silently rotate 45 degrees, blocking the glare while keeping the airflow active.

This is the reality of modern permanent outdoor shade structures. We aren't just talking about static wood pergolas anymore; we are talking about connected, motorized architectural elements that integrate directly into your smart home ecosystem. Whether you are looking at a louvered roof or a retractable screen system, bringing these heavy-duty fixtures online changes how you utilize your outdoor square footage.

Key Specs at a Glance

Before you start drilling into concrete or running conduit, you need to know what drives these systems. Most permanent shade setups rely on RF (Radio Frequency) motors, which means they don't connect to WiFi directly out of the box.

• Motor Protocol: Usually RTS (Somfy) or generic 433MHz RF.
• Connectivity: Requires a Bridge (Bond Bridge, Somfy TaHoma) for app/voice control.
• Power Source: Hardwired (110V/240V) is standard; Solar/Battery is rare for structural units.
• Wind Resistance: High-end models rated for 60+ mph gusts (when closed).

Installation Realities: Hardwired vs. Plug-in

Unlike a retrofit smart blind you stick on a window, a permanent shade structure is a significant construction project. From a tech perspective, the biggest hurdle is power delivery. Most robust systems—especially louvered pergolas—require a hardwired connection to your home’s main breaker panel.

You aren't just dealing with a simple USB-C rechargeable battery here. These motors need torque to move heavy aluminum slats or tensioned fabric. If you are planning a DIY install, ensure you have a weatherproof junction box ready at the top of the post. I always recommend running Cat6 ethernet alongside your power line, even if you don't need it yet. It future-proofs the structure for hardwired security cameras or mesh WiFi access points later.

The "Bridge" to Smart Control

Here is where many homeowners get confused. Your permanent canopy structure will likely come with a proprietary handheld remote. To get it talking to Alexa, Google Home, or Home Assistant, you need a translation layer.

The RF Bridge Solution

Since most heavy-duty outdoor motors use Radio Frequency (RF) to communicate, they are invisible to your WiFi router. I use a Bond Bridge Pro for this. It learns the frequency of the handheld remote and broadcasts that signal via WiFi. This allows you to create a "scene" where your permanent sun shade extends or closes based on a schedule or voice command.

Sensor Integration

True intelligence isn't just about voice control; it's about reaction. High-end systems often include rain and wind sensors. However, integration can be tricky. A local 433MHz wind sensor usually talks directly to the motor, bypassing the smart hub. This is a safety feature—if the WiFi goes down, the shade still retracts during a storm to prevent damage.

Living with permanent outdoor shade structures: Day-to-Day Reality

I’ve lived with a smart louvered system for two years now, and there are sensory details the spec sheets don't mention. First, there is the noise. It isn't silent. When I trigger the "Morning" routine, there is a distinct, low-frequency hum followed by a mechanical clunk as the louvers lock into the open position. It’s satisfying, but audible enough to wake a light sleeper if their window is open nearby.

Another nuance is the latency. Because the command goes from my voice assistant to the cloud, back to the bridge, and then over RF to the permanent shade canopy, there is a consistent 2-to-3-second delay. At first, I thought the system missed the command, leading me to repeat it. Now, I’ve learned to trust the lag. Also, a quick tip: keep the physical remote in a waterproof box near the patio door. When the internet is out, you will be thankful for that analog backup.

Conclusion

Investing in smart permanent outdoor shade structures is about more than just blocking the sun; it's about extending your living space. While the installation demands serious electrical planning and the integration requires a reliable RF bridge, the ability to modulate your environment with a voice command is incredibly valuable. It turns a static backyard into a responsive room.

Frequently Asked Questions

What happens if the power goes out?

Since most permanent structures are hardwired, they will not operate during an outage. Some high-end motors have a manual override crank, but you must ensure this is accessible during installation.

Can I schedule the shade to follow the sun?

Yes, but you will need a third-party hub. Using a platform like Home Assistant or Hubitat, you can program the shade to adjust incrementally throughout the day based on the sun's azimuth.

Do these structures interfere with WiFi signals?

Large aluminum structures can act as a Faraday cage, blocking WiFi signals. If you plan to work under your shade, consider installing an outdoor-rated WiFi access point mounted directly to the structure.
