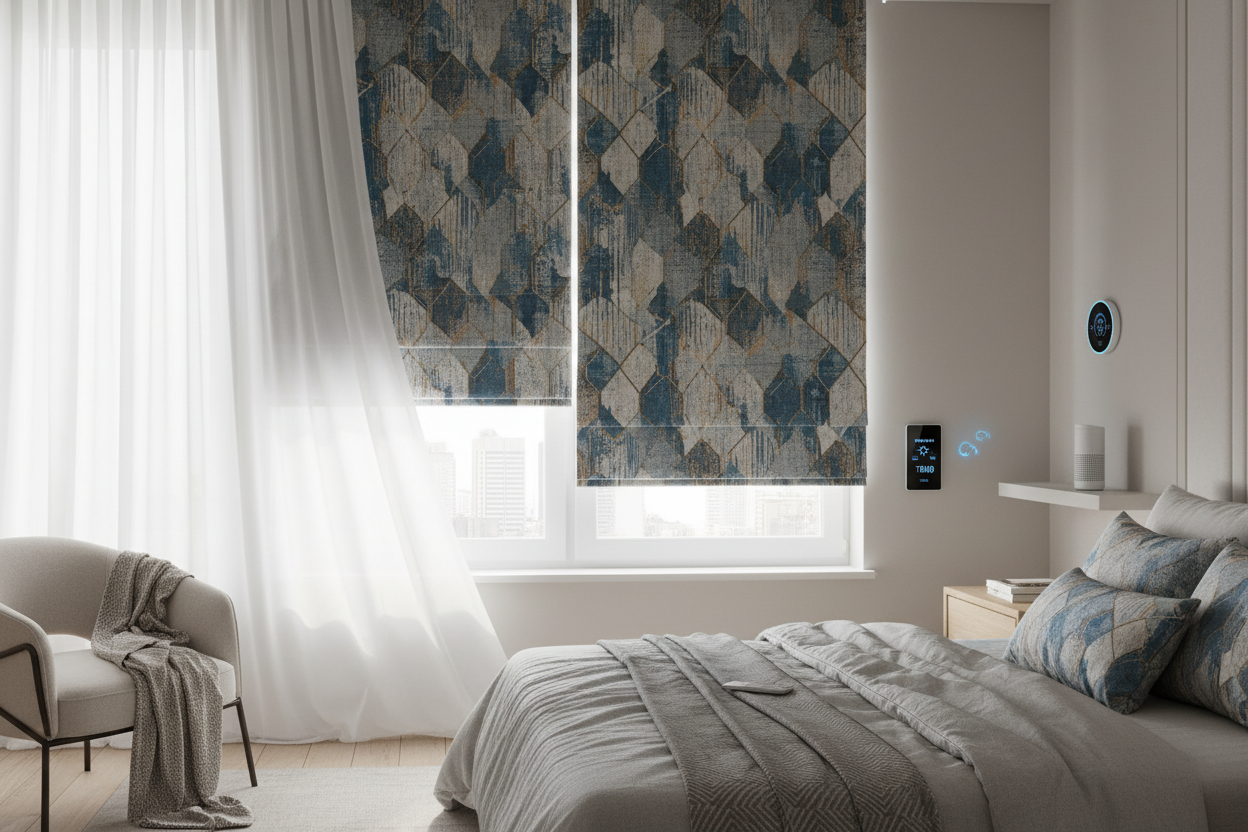

Wake Up in Style: The Smart Patterned Roller Shade Setup

Imagine this: It’s Saturday morning. The sun is just starting to hit your bedroom window, but instead of fumbling for a plastic chain or getting out of bed to block the glare, you simply mutter, “Good morning.” Instantly, the vibrant, textured fabric of your patterned roller shade glides down, softening the light and preserving your privacy. This isn't just about laziness; it's about merging interior design with home automation protocols.

For years, tech enthusiasts had to choose between ugly, industrial-looking smart shades or dumb, aesthetic ones. That gap has closed. Whether you are looking for blackout patterned blinds for a media room or light-filtering patterned window shades for a kitchen, the hardware now exists to automate them without sacrificing style.

Key Specs at a Glance

Before buying a retrofit motor or a custom unit, check these specifications to ensure your ecosystem handles the heavier fabric often found in pattern blinds.

Feature	Recommendation	Why It Matters
Protocol	Zigbee 3.0 or Thread	Lower latency and better battery life than WiFi.
Torque	1.1Nm minimum	Patterned/textured fabrics are heavier than plain vinyl.
Power	Li-ion Rechargeable	Cleaner look; no hanging battery packs to ruin the pattern.
Noise	< 40dB	Silent operation prevents the "robotic" feel.

Installation: Retrofit vs. Custom Build

When automating patterned blinds for windows, you generally have two paths: retrofitting an existing shade or buying a pre-fabricated smart unit.

The Retrofit Approach

If you already have high-end patterned window blinds that match your duvet or rug, you don't want to toss them. Devices like the Aqara Roller Shade Driver E1 or Soma Smart Shades attach to the bead chain. However, be warned: patterned fabrics are often thicker. If the bead chain connector is heavy, ensure the retrofit motor has enough torque to lift it without stalling. This is the budget-friendly route but adds a visible gadget to your window frame.

Custom Smart Shades

Companies like Graywind or Yoolax now offer custom-printed fabrics with integrated tubular motors. The motor sits inside the roller tube, completely invisible. This is critical for patterned designs because you want the visual focus on the art, not the tech.

Power and Connectivity

If you are renovating, hardwired (120V or 24V) is always superior for reliability. However, for most users, battery power is the reality. Look for USB-C rechargeable internal motors. With average use (one up/down cycle per day), a 3000mAh battery should last 6 months.

For connectivity, avoid Bluetooth-only motors unless you enjoy standing within 10 feet of the window to operate them. A Zigbee hub or a Thread-enabled border router (like an Apple HomePod mini) provides the range and speed needed for whole-home automation.

Technical Considerations: Weight and Noise

Weight Capacity: This is where many DIY setups fail. A standard vinyl shade is light. A jacquard or embroidered patterned roller shade can weigh 30-50% more. If your motor is rated for 4kg and your shade is 3.8kg, the motor will whine and drain the battery rapidly. Always over-spec your motor torque.

Noise Levels: In a bedroom, the difference between 35dB and 55dB is jarring. Higher-end motors (like those using Somfy or Eve technology) operate at a low hum, whereas cheaper WiFi motors often sound like a remote-control car.

Living with Patterned Roller Shade: Day-to-Day Reality

I’ve had a motorized geometric-patterned shade in my home office for about eight months now, and there are nuances specs don't tell you.

First, let’s talk about the "backlight effect." When I ordered the shade, the pattern looked crisp navy and white. However, around 2:00 PM when direct sunlight hits the window, the motor lowers the shade, and the light blasting through the fabric changes the color temperature completely. The navy looks washed out unless you opt for a blackout liner. If you are automating these for a home theater, the liner is non-negotiable.

Second, there is the "sync drift." I have three windows side-by-side. I use a group command: "Alexa, close the office." They rarely move in perfect unison. One usually starts a half-second later or moves slightly slower due to battery variance. It’s a minor visual annoyance, but if you have a continuous pattern across three windows, seeing them misaligned by an inch as they lower can trigger a bit of OCD. I solved this by setting the "down" limit slightly past the sill, so they all eventually look uniform when fully closed.

Conclusion

Upgrading to a smart patterned roller shade is a significant lifestyle improvement. It adds security by simulating presence when you're away and protects your furniture from UV damage automatically. Just ensure you prioritize motor torque and communication protocols (Zigbee/Thread) over WiFi to keep the experience frustration-free.

Frequently Asked Questions

Can I still use the manual chain if the battery dies?

Mostly, no. Tubular motors lock the mechanism. However, some retrofit chain drivers allow for manual operation, and some high-end hybrid mounts (like Eve MotionBlinds) offer a "tug" feature to activate the motor manually.

Do patterned fabrics affect the remote signal?

Generally, no. RF (Radio Frequency) and Zigbee signals penetrate fabric easily. However, if your pattern uses metallic threads or foil blocking for heat control, it could dampen the signal range slightly.

Do I need a hub for these shades?

It depends on the motor. WiFi motors connect directly to your router (but crowd your network). Zigbee and Z-Wave motors require a compatible gateway or hub (like SmartThings, Hubitat, or Amazon Echo 4th Gen).
