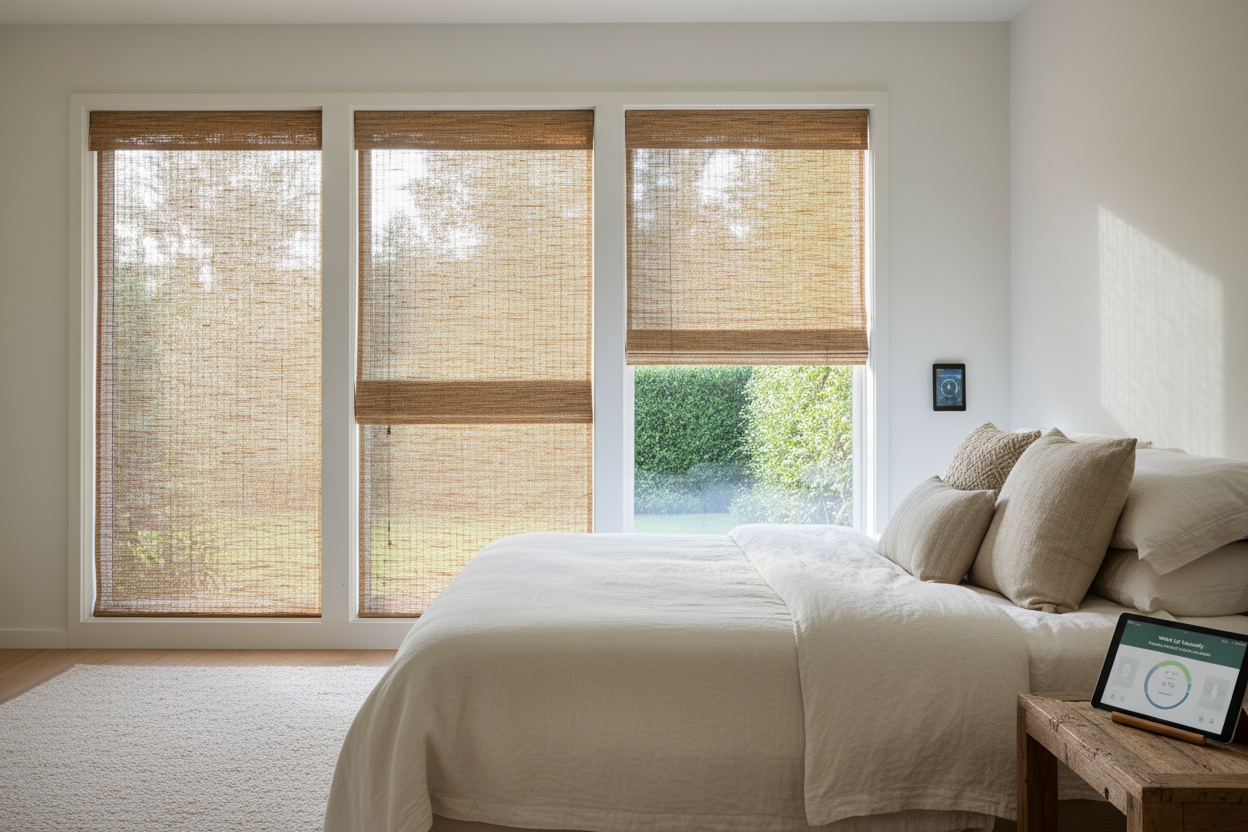

Wake Up Naturally: Automating Top Down Woven Wood Shades

Imagine this scenario: It’s Saturday morning. You want natural light to flood the room, but you aren't quite ready to expose your home to the neighbors walking their dogs on the sidewalk. With standard blinds, you have to choose between darkness and exposure. This is where top down woven wood shades shine. By lowering the top half of the shade via a voice command or a scheduled routine, you keep your privacy at street level while letting the sky in.

As an automation specialist, I often recommend woven woods for their texture, but motorizing the "top-down, bottom-up" (TDBU) functionality adds a layer of complexity that requires the right hardware. It’s not just about aesthetics; it’s about managing light and privacy without touching a cord.

Key Specs at a Glance

Before ripping out your old blinds, you need to know what drives these shades. TDBU setups are heavier and mechanically more complex than standard rollers.

Feature	Specification	Notes
Motor Type	Dual Motor or Twin-Shaft	Required to control the middle rail and bottom rail independently.
Connectivity	RTS (RF), Zigbee, or Bluetooth	RF (433MHz) is most common for woven woods; requires a bridge.
Power Source	Rechargeable Li-ion Wand vs. Hardwired (12V/24V)	Hardwired is preferred for TDBU due to weight/power consumption.
Ecosystems	Alexa, Google Home, HomeKit	Usually requires a Bond Bridge or TaHoma Switch.

Understanding the Mechanics: Dual Motors

Unlike a standard roller shade, woven wood shades top down bottom up configurations essentially operate as two separate window treatments on one headrail. One motor controls the lift of the bottom rail (raising the shade entirely), while a second mechanism controls the middle rail (lowering the shade from the top).

The Weight Factor

Woven woods (bamboo, grasses, jute) are significantly heavier than cellular honeycomb fabrics. When you automate these, torque is critical. If you are retrofitting, ensure your motor is rated for at least 1.1Nm to 2Nm depending on the window width. A weak motor will result in a sluggish lift or, worse, a stalled shade halfway up the window.

Power Options: Battery vs. Hardwired

For most retrofit projects, rechargeable battery wands are the standard. They tuck neatly behind the headrail. However, because TDBU mechanisms have more friction, battery drain is faster than with standard shades.

• Battery: Expect to recharge every 4-6 months with moderate use. Look for motors with external charging ports so you don't have to dismantle the valance to charge.
• Hardwired (Low Voltage): If you are renovating, run a 16/2 wire to the window frame. This provides consistent torque and eliminates the "battery sag" speed reduction that happens as the charge drops.

Smart Integrations and Bridges

Most woven shades top down bottom up motors utilize Radio Frequency (RF) rather than direct Wi-Fi. This is actually a benefit, as it congests your network less. To get them into Alexa or HomeKit, you need a bridge.

The Bond Bridge Pro is the industry standard here. It learns the RF signal from the shade's remote and broadcasts it via Wi-Fi to your voice assistants. This allows you to create routines like "Alexa, turn on Privacy Mode," which lowers the top rail to 50%.

Living with Top Down Woven Wood Shades: Day-to-Day Reality

I’ve had a motorized TDBU bamboo setup in my living room for about eight months now, and there are sensory details the spec sheets don't mention. The first thing you notice is the sound—not of the motor, but of the material. Unlike silent polyester rollers, woven wood has a distinct, organic "crackle" or rustle as the dried grasses fold and unfold. It’s a pleasing, tactile sound, but it's definitely audible.

Another nuance is the "sync drift." Since my setup uses two separate motors on the same headrail (one for the top, one for the bottom), occasionally they get slightly out of sync regarding speed. I’ll ask Google to "Open the shades," and the middle rail might arrive at the top two seconds before the bottom rail hits the sill. It’s not a functional issue, but if you are OCD about symmetry, you might find yourself recalibrating the limits every few months to keep the movement perfectly uniform.

Conclusion

Automating top down woven wood shades combines the best of organic interior design with modern privacy control. While the installation requires careful consideration of motor torque and power sources, the ability to modulate natural light via voice command is a massive lifestyle upgrade.

Frequently Asked Questions

Can I operate these manually if the power goes out?

Generally, no. Most motorized woven wood shades lock the gears when not powered to hold the weight of the wood. If you live in an area with frequent outages, consider a hybrid system or ensure you have a battery backup for the motor.

How loud are the motors?

Modern DC motors typically run between 40dB and 50dB. They are a low hum, usually quieter than a conversation. The sound of the wood texture moving is often louder than the motor itself.

Do I need a hub for smart phone control?

Yes. Most woven wood motors use RF communication. To control them via an app or voice assistant while away from home, you will need a gateway like a Bond Bridge or the manufacturer's specific hub.
