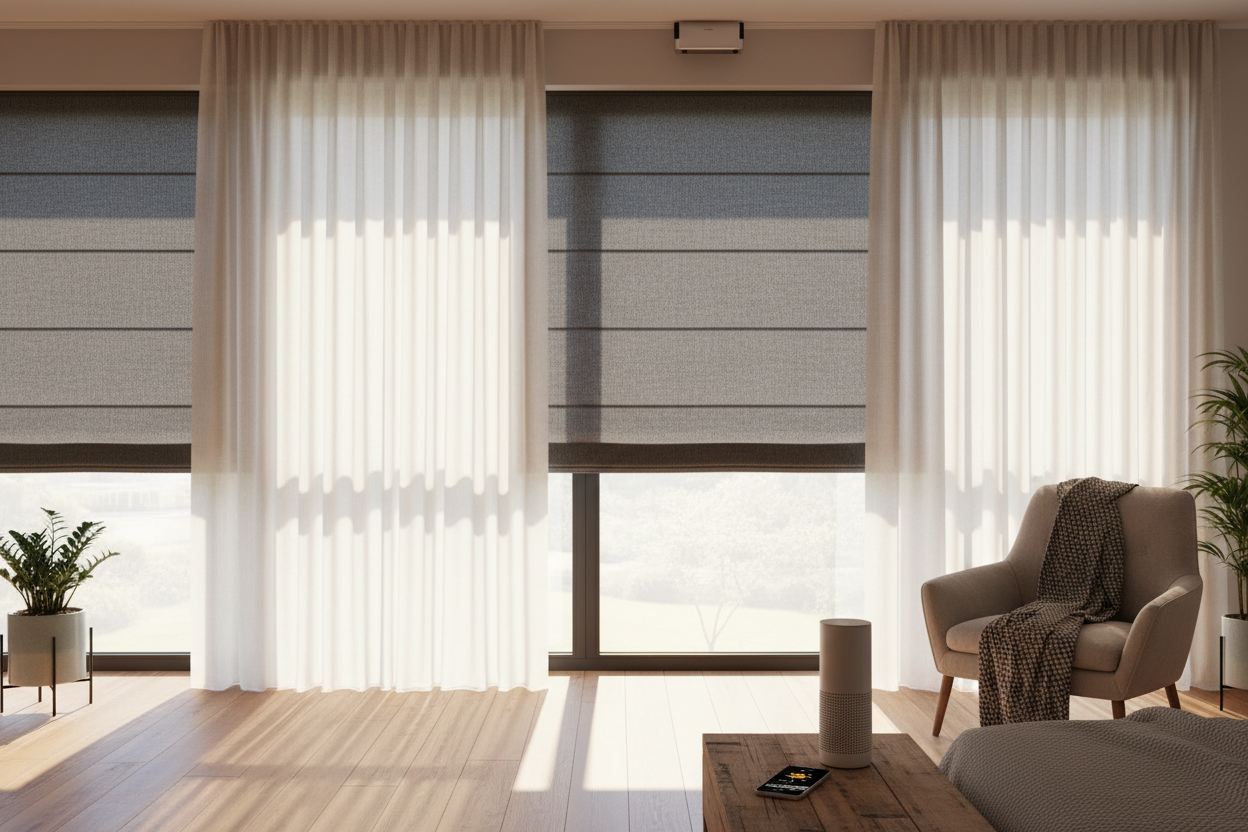

Wake Up to Natural Light: My Smart Sun Blind Setup

It is Saturday morning. You are comfortable in bed, but the early light is starting to creep across your face. Instead of getting up to wrestle with a cord, you simply mutter a voice command or tap your phone, and the room goes dark again. This isn't just a luxury; it is about practical light management. Whether you are trying to cut glare on the TV during a movie or keeping the house cool while you are at work, a smart **sun blind** offers a level of control that manual shades just cannot match.

Key Specs at a Glance

Before you start drilling holes, it is vital to match the motor to your window type. Here is the quick technical breakdown of what usually powers these setups:

• Power Source: Rechargeable Lithium-Ion (USB-C charging) or 12V Hardwired.
• Connectivity Protocol: Zigbee 3.0, Wi-Fi (2.4GHz), or Thread/Matter.
• Control Platforms: Alexa, Google Home, Apple HomeKit, Samsung SmartThings.
• Motor Torque: Typically 1.1Nm to 2.0Nm (capable of lifting 8-12 lbs).

Installation Realities: Retrofit vs. New

When looking into sunblinds, you generally have two paths: buying a brand new motorized unit or retrofitting your existing shades. Retrofit motors are essentially 'blind engines' that sit inside the roller tube. They are cost-effective but require precise measurements of your tube diameter (usually 38mm or larger).

If you have high ceilings, safety is a massive factor. Installing a smart sun blind eliminates the need for dangerous step-ladders just to adjust the light. However, be mindful of the weight. If you are ordering from major manufacturers like Sun Blinds Inc or similar tech-focused brands, check the load capacity. A heavy blackout fabric requires a motor with at least 1.5Nm of torque to lift smoothly without stalling.

Power & Battery Options

The biggest friction point for users is power. Hardwired is reliable but requires an electrician and messy drywall work. Most retrofit users opt for battery power. Modern motors use internal lithium-ion batteries that last 4 to 6 months on a single charge based on one up/down cycle per day.

Solar Panel Add-ons

For windows that get direct light, small solar panel strips can trickle charge the battery. This effectively removes the need to plug them in manually. However, if your window has a heavy UV coating or an overhang, the panel might not generate enough amperage to keep the motor topped up.

Ecosystem Integration

Getting your sun blind to talk to your smart home requires the right protocol. Wi-Fi motors connect directly to your router but can crowd your network. Zigbee motors respond faster and use less battery, but they require a dedicated Gateway or Hub (like an Echo Show or SmartThings hub).

If you are sourcing parts from distributors like Sun Blinds US, verify if their motors are 'Tuya' compatible. Tuya is a common backend platform that allows affordable hardware to interface easily with Google Assistant and Alexa via a simple skill link.

Living with Sun Blind: Day-to-Day Reality

After using this setup for over a year, I need to mention the noise. Marketing materials often claim 'silent operation,' but that is rarely true. In a dead-silent bedroom at 6:00 AM, the motor creates a distinct low-frequency hum—about 40dB. It isn't loud, but it is definitely audible. It sounds a bit like a tiny RC car driving on carpet.

Another nuance is the 'drift.' Over six months, the bottom limit of the blind tends to drift up or down by about half an inch as the fabric stretches or the spool tightens. I find myself having to recalibrate the stop points in the app roughly twice a year to ensure the window is fully covered. Also, if you use a solar panel, hiding the thin wire that connects the panel to the motor header can be tricky; I ended up using a tiny strip of white electrical tape to keep it flush against the frame.

Conclusion

Upgrading to a smart sun blind is one of the few tech improvements that offers immediate, tangible benefits every single day. While the initial setup and hub pairing can be fiddly, the ability to manage natural light without touching a cord is well worth the effort.

Frequently Asked Questions

What happens during a power outage?

If you use battery-powered motors, they continue to work via the remote or local buttons. However, voice control and app schedules will fail if your Wi-Fi or Hub is down.

How do I charge the blinds?

Most modern units feature a USB-C port on the motor head. You typically plug in a power bank or a long charging cable for 4-6 hours until the indicator turns green.

Do I need a hub?

If you choose a Zigbee or Z-Wave motor, yes, a hub is required. If you choose a Wi-Fi or Bluetooth version, you can usually connect directly to your phone, though Wi-Fi consumes more battery.
