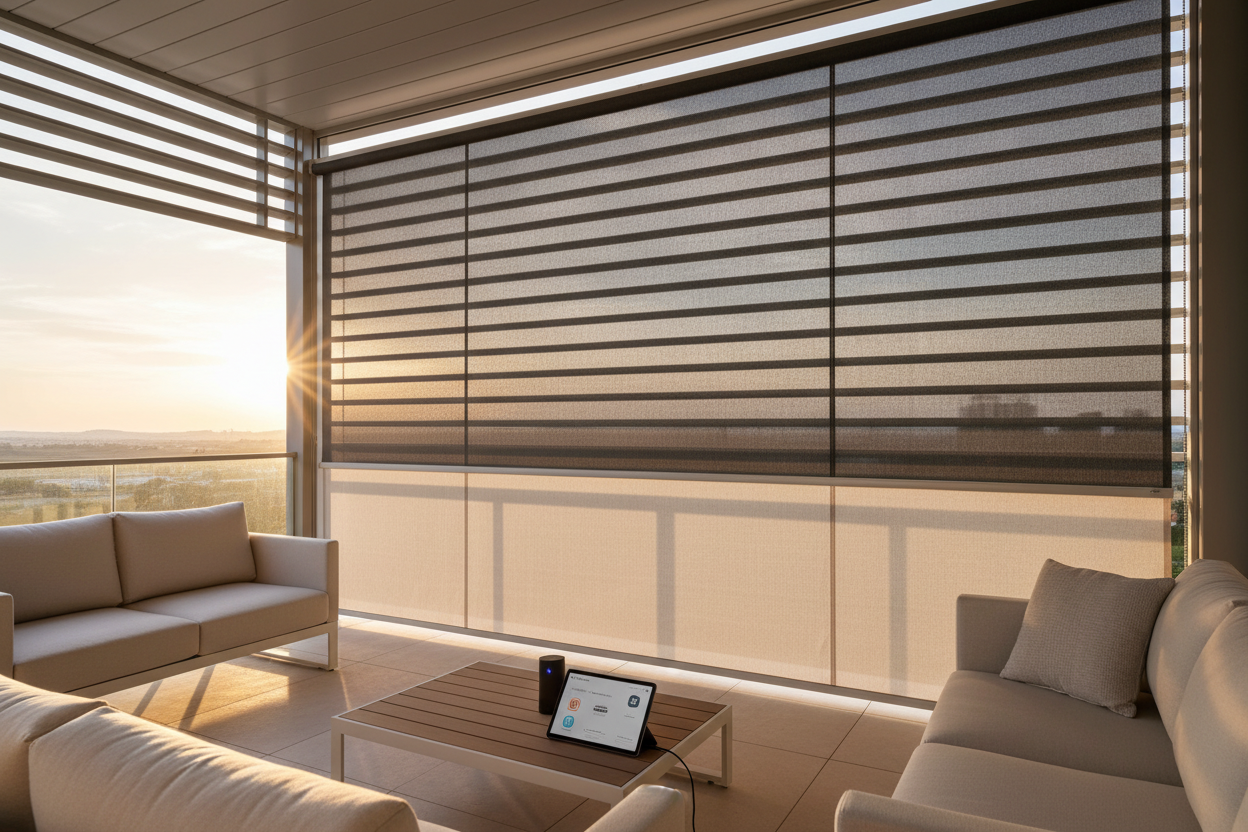

West Facing Patio? How a 9 Foot Outdoor Roller Shade Solves Glare

It’s 5:30 PM on a Tuesday. You’ve just poured a drink and stepped onto the patio, but instead of relaxing, you’re squinting against the blinding low-angle sun. The heat radiating off the pavers is intense, rendering your outdoor living space unusable right when you want it most. This was my reality until I integrated a smart 9 foot outdoor roller shade into my exterior setup. Beyond just blocking UV rays, these motorized solutions allow you to control your home's thermal envelope via voice command or a simple tap on your phone, securing your privacy without lifting a finger.

Key Specs at a Glance

Before you start drilling into your stucco or siding, here is the technical breakdown you need to know for most smart exterior shading systems.

• Connectivity Protocol: Usually Zigbee 3.0 (requires a hub/gateway) or Wi-Fi (2.4GHz direct connection).
• Power Source: Rechargeable Li-ion battery (often with a solar panel trickle charge) or Hardwired (120V AC).
• Material Durability: High-Density Polyethylene (HDPE) with UV stabilizers.
• Wind Resistance: Generally safe up to 15-20 mph; requires a smart wind sensor for auto-retraction.

Installation Realities: Mounting a 9-Foot Span

Installing a drop down sun shade of this width requires precision. Unlike smaller interior blinds, a 9-foot span carries significant weight. You are not just mounting a shade; you are mounting a heavy-duty roller tube and a motor. If you are retrofitting this onto a pergola or fascia, you must ensure you are drilling into solid structural wood or using heavy-duty masonry anchors.

For horizontal patio shades, leveling is non-negotiable. Even a half-inch variance can cause the fabric to telescope (roll up unevenly), which jams the motor over time. If you are setting up roll up sun shade for gazebo structures, double-check your clearance. The motor head usually adds about an inch to the total width, so measure your opening at the top, middle, and bottom.

Power & Connectivity Options

Battery vs. Hardwired

If you have an outlet near the soffit, go hardwired. It provides instant response times and higher torque for heavier commercial outdoor blinds. However, for most residential retrofits, a rechargeable motor is the standard. I recommend pairing these with a small solar panel mounted on the fascia. It keeps the Li-ion battery topped off, so you aren't dragging a ladder out every six months to recharge.

The Ecosystem Handshake

Most DIY-friendly exterior roll up patio sun shade kits use RF (Radio Frequency) remotes out of the box. To get them into your smart home ecosystem, you usually need a specific RF-to-WiFi bridge or a Zigbee hub. Once bridged, these devices appear as "Window Coverings" in Alexa or Google Home. This allows you to create routines—like dropping the outdoor roll up sunscreen to 50% when the afternoon temperature hits 85 degrees.

Living with 9 foot outdoor roller shade: Day-to-Day Reality

After three months of testing these outdoor patio roller screens, the "cool factor" settles into practical nuance. Here is the unpolished truth: there is a slight latency. When I ask my voice assistant to "close the patio shade," there is a solid 2-to-3-second delay before the motor engages. It’s not instant.

Also, the wind sensor is sensitive. I have mine set to retract the pergola shade blinds if gusts exceed 15 mph. On a breezy Tuesday, the shade went up and down three times in an hour. It can be annoying, but it saves the fabric from ripping. Another detail often overlooked is the motor sound. It’s not silent. In a quiet backyard, the low-hum of the tubular motor (around 45dB) is definitely noticeable for the 20 seconds it takes to deploy.

Conclusion

Upgrading to a motorized exterior horizontal sun shades system is an investment in usability. It transforms a scorching patio into a functional room. While the setup requires structural awareness and the Zigbee/WiFi bridging can be finicky, the ability to manage heat gain before it hits your windows is the most efficient way to cool your home.

Frequently Asked Questions

What happens if the power goes out?

Most smart motors have a manual override feature. You usually use a hand crank that hooks into a loop on the motor head to raise or lower the shade during outages.

Do I need a specific hub for these shades?

It depends on the brand. Some use proprietary bridges (like Bond Bridge) to translate RF signals to Wi-Fi, while others connect directly to hubs like SmartThings if they are native Zigbee devices.

Can I leave these down during a storm?

No. While they are durable, high winds act like a sail against the fabric. Always retract them during heavy storms to prevent damage to the mounting brackets or the fabric itself.
